GS121-SESQF (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 1GGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

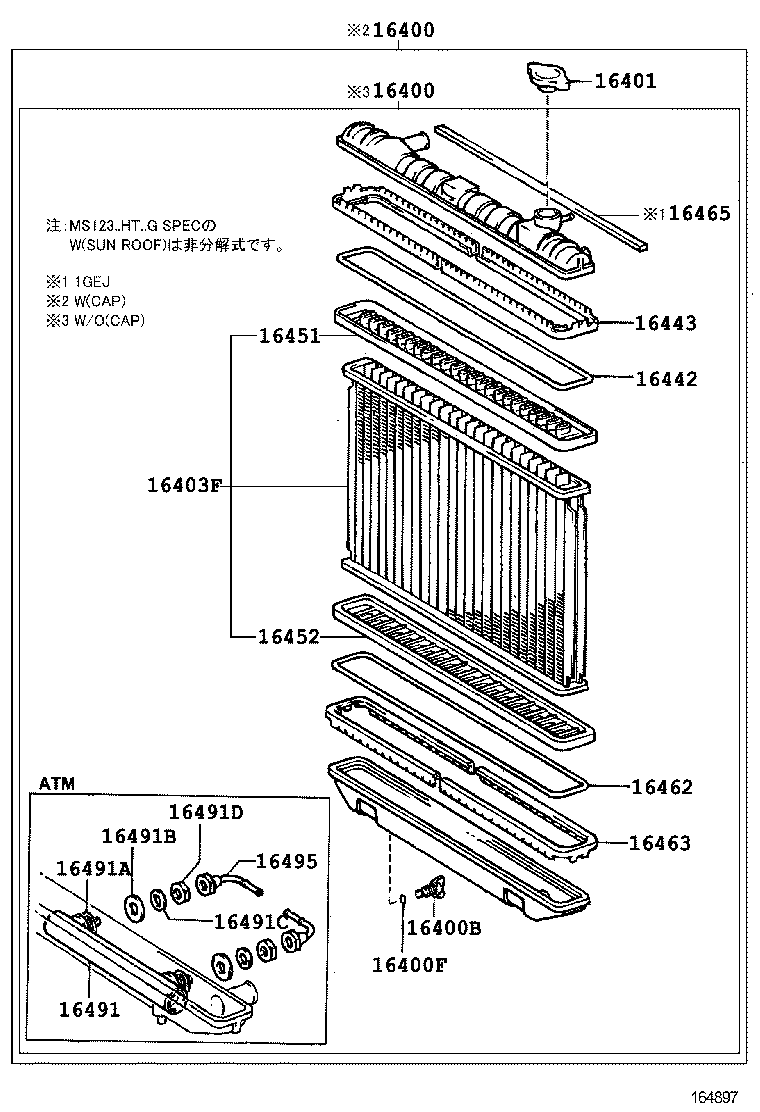

ILLUST NO. 2 OF 2(8308- )1GEU,1GG#,1GEJ

Click highlighted areas on diagram

diagram 16400 16400 16400B 16400F 16401 16403F 16442 16443 16451 16452 16462 16463 16465 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16410-43100

1GEU,1GGEU..GS120,121..ATM

W/O CAP

 1
16400 - RADIATOR ASSY
16410-43100

1GEU,1GGEU..GS120,121..ATM

W/O CAP

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1GEU,1GG#..GS120,121

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

1GEU,1GG#..GS120,121

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1GEU,1GG#..GS120,121

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-54310

1GEU,1GGEU..GS120,121

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-63030

1GEU,1GG#..GS120,121

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-15321

1GEU,1GG#,1GEJ..GS12#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-63030

1GEU,1GG#..GS120,121

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-63030

1GEU,1GG#..GS120,121

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-63030

1GEU,1GG#..GS120,121

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-63030

1GEU,1GGEU..GS120,121

 2
16463-15320

1GEU,1GG#,1GEJ..GS12#

 2
16491 - COOLER, OIL(FOR ATM)
16491-43120

1GEU,1GGEU..GS120,121..ATM

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-35080

1GEU,1GG#..GS120,121..ATM

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-35080

1GEU,1GGEU..GS120,121..ATM

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-35080

1GEU,1GGEU..GS120,121..ATM

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-35080

1GEU,1GGEU..GS120,121..ATM

 2
16495 - NUT, FLARE(FOR ATM OIL COOLER)
16495-35080

1GEU,1GGEU..GS120,121..ATM

 2

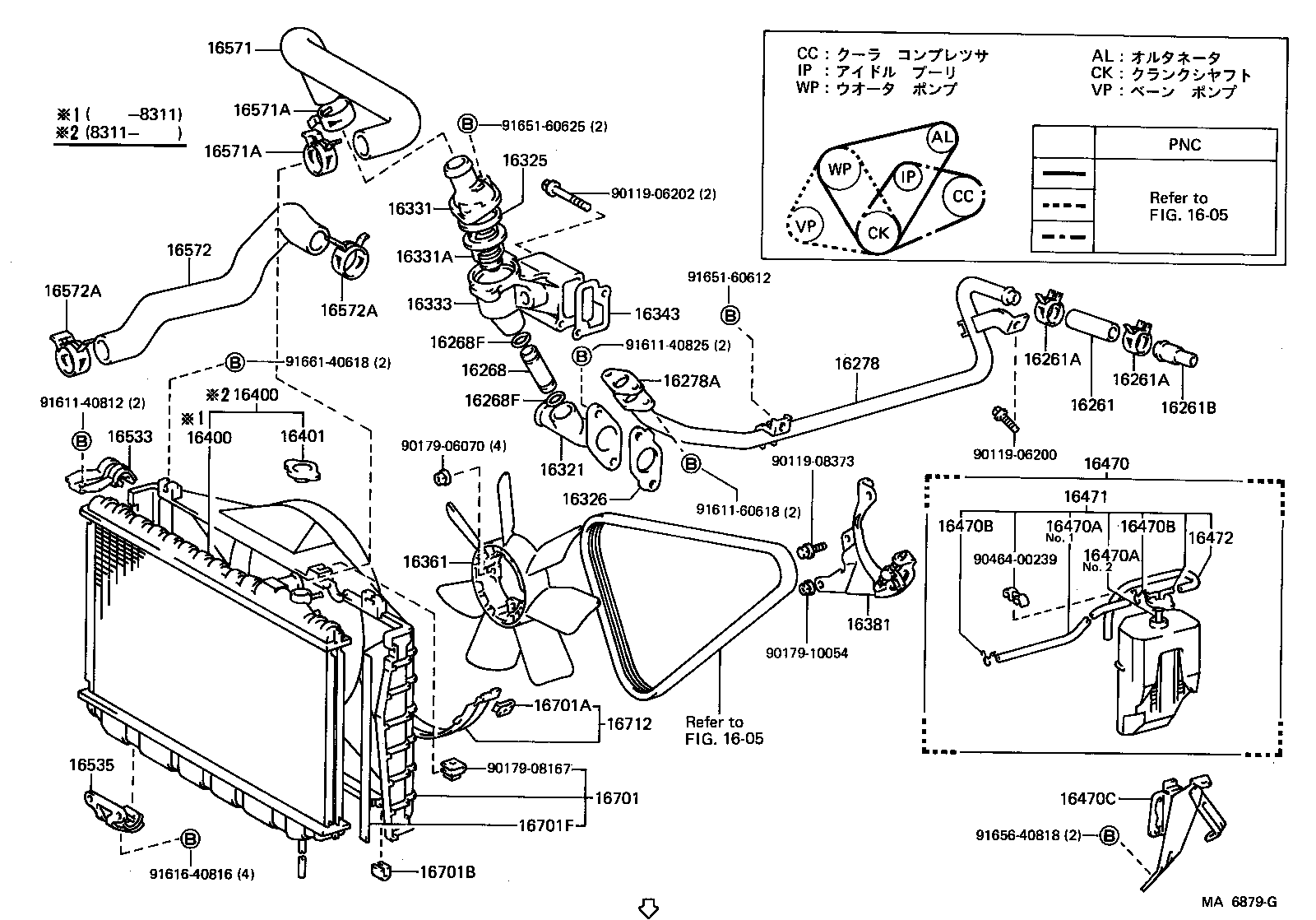

ILLUST NO. 1 OF 2(8308- )1GGEU

Click highlighted areas on diagram

diagram 1605 1605 16261 16261A 16261A 16261B 16268 16268F 16268F 16278 16278A 16321 16325 16326 16331 16331A 16333 16343 16361 16381 16400 16400 16401 16470 16470A 16470A 16470B 16470B 16470C 16471 16472 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16701F 16712 9011906200 9011906202 9011908373 9017906070 9017908167 9017910054 9046400239 9161140812 9161140825 9161160618 9161640816 9165160612 9165160625 9165640818 9166140618
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-88300

1GG#..GS121

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-26003

1GG#..GS121

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-26003

1GG#..GS121

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90406-22001

1GG#..GS121

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-88300

1GGEU..GS121

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24018

1GGEU..GS121

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24018

1GGEU..GS121

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-88300

1GGEU..GS121

 1
16278A - GASKET, WATER BY-PASS
16347-88300

1GGEU..GS121

 1
16321 - INLET, WATER
16321-88301

1GGEU..GS121

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1GEU,1GG#,1GEJ..GS12#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-70011

1GEU,1GGEU,1GEJ..GS12#

 1
16331 - OUTLET, WATER
16331-88300

1GGEU..GS121

 1
16331A - THERMOSTAT
90916-03063

1GG#..GS121

*WAX 88−100

 1
16333 - HOUSING, WATER OUTLET
16333-88300

1GGEU..GS121

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-88300

1GGEU..GS121

 1
16361 - FAN
16361-41070

1GG#..GS121

 1
16381 - BAR, FAN BELT ADJUSTING
16381-88300

1GGEU..GS121

 1
16400 - RADIATOR ASSY
16410-43100

1GEU,1GGEU..GS120,121..ATM

W/O CAP

 1
16400 - RADIATOR ASSY
16410-43100

1GEU,1GGEU..GS120,121..ATM

W/O CAP

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1GEU,1GG#..GS120,121

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-41150

1GEU,1GGEU,1GEJ..GS12#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12138

1G#..GS12#

*H,L=350

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12138

1G#..GS12#

*H,L=350

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1GEU,1GG#,1GEJ..GS12#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1GEU,1GG#,1GEJ..GS12#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-41070

1GEU,1GGEU,1GEJ..GS12#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-41080

1GEU,1GGEU,1GEJ..GS12#

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-41010

1GEU,1GG#,1GEJ..GS12#

 2
16535 - SUPPORT, RADIATOR, LOWER
16506-41010

1GEU,1GG#,1GEJ..GS12#

 2
16571 - HOSE, RADIATOR, INLET
16571-70070

1GGEU..GS121

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

1GEU,1GG#,1GEJ..GS12#

OUTLET SIDE

 1
90467-37001

1GEU,1GG#,1GEJ..GS12#

RADIATOR SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

1GEU,1GG#,1GEJ..GS12#

OUTLET SIDE

 1
90467-37001

1GEU,1GG#,1GEJ..GS12#

RADIATOR SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-70070

1GGEU..GS121

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

1GEU,1GG#,1GEJ..GS12#

RADIATOR SIDE

 1
90467-37002

1GEU,1GGEU,1GEJ..GS12#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

1GEU,1GG#,1GEJ..GS12#

RADIATOR SIDE

 1
90467-37002

1GEU,1GGEU,1GEJ..GS12#

WATER PUMP SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16701-70010

1G#..GS12#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

1GEU,1GG#,1GEJ..GS12#

 2
16701B - CUSHION, FAN SHROUD
90541-11002

1GEU,1GG#,1GEJ..GS12#

 2
16701F - SEAL(FOR FAN SHROUD)
16832-41010

1GEU,1GG#,1GEJ..GS12#

 2
16712 - SHROUD, FAN, NO.2
16702-70010

1GEU,1GG#,1GEJ..GS12#

 1
Common parts
90119-06200
90119-06202
90119-08373
90179-06070
90179-08167
90179-10054
90464-00239
91611-40812
91611-40825
91611-60618
91616-40816
91651-60612
91651-60625
91656-40818
91661-40618
Linked diagrams
1605
