GS121-SEPQR (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 1GGZEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )SPC

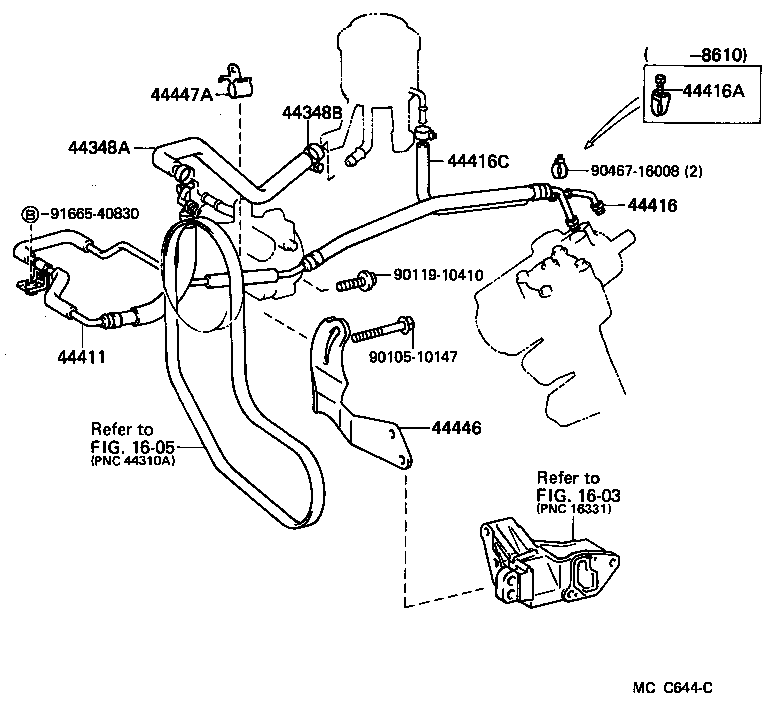

Click highlighted areas on diagram

diagram 1603 1605 44348A 44348B 44411 44416 44416A 44416C 44446 44447A 9010510147 9011910410 9046716008 9166540830
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30070

GS121

 1
44348-30050

GS121..SPC

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LS120;GS121,LS126..DLX,ROY

 2
44411 - HOSE, PRESSURE FEED
44411-30350

GS121..SPC

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30060

LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LS120;GS12#,LS126..DLX,ROY,SAL,SDX,SPE,SSL

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18105

GS121

 1
44446 - STRUT, ADJUSTING
44446-30080

GS121..SPC

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-30050

GS121..SPC

 1
Common parts
90105-10147
90119-10410
90467-16008
91665-40830
Linked diagrams
1603
1605
