GS120G-SWSGE (1983)
Toyota Crown
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08164 | ||||
| 90179-08143 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 90506-12035 | ||||
| 91611-40616 | ||||
| 91611-60814 | ||||
| 94543-01000 | ||||
| Linked diagrams | ||||
| 8511 | ||||

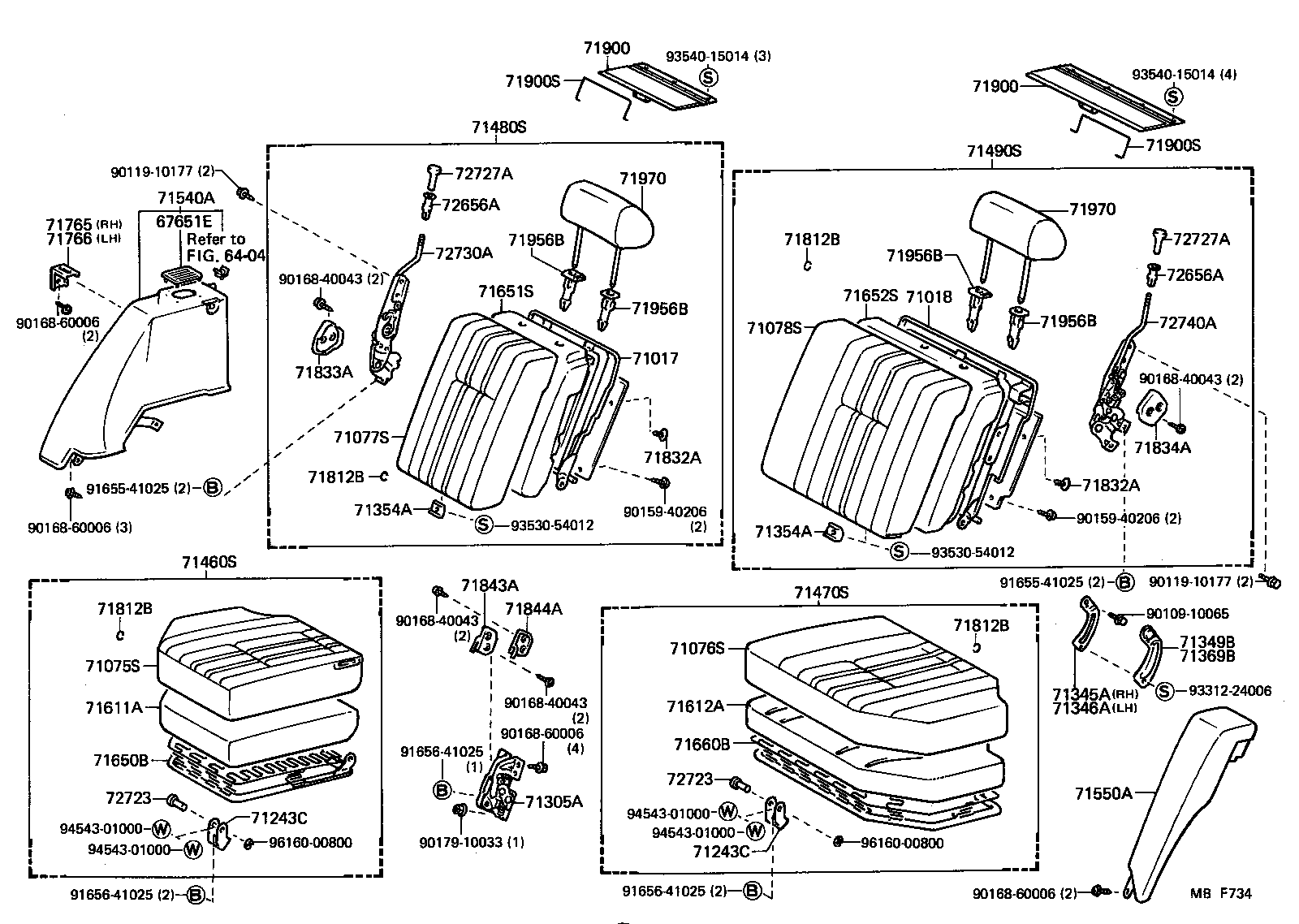

ILLUST NO. 1 OF 2(8308- )WG..SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67651E - GRILLE, SPEAKER REAR SEAT | ||||
| 67651-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67651-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67651-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67651-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-91716 |
GS120,LS120..WG..SAL |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-9173805 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-9173804 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-9174602 |
GS120,LS120..WG..SAL FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71075-9174604 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-9174002 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-9170104 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71076-9170105 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71076-9170202 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71076-9170302 |
GS120,LS120..WG..SAL FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71076-9170304 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-9174104 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-9174105 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-9174202 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71077-9174305 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-9174304 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-9174402 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71077-9174604 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-9174602 |
GS120,LS120..WG..SAL FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-9170104 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-9170202 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71078-9170105 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-9170304 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-9170402 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71078-9170305 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-9170504 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-9170502 |
GS120,LS120..WG..SAL FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71243C - BRACKET, REAR SEAT CUSHION HINGE | ||||
| 71243-91701 |
GS120,LS120..WG..SAL |
4 | ||
| 71243C - BRACKET, REAR SEAT CUSHION HINGE | ||||
| 71243-91701 |
GS120,LS120..WG..SAL |
4 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71345A - STAY, REAR SEAT BACK, RH | ||||
| 71345-91703 |
GS120,LS120..WG..SAL |
2 | ||
| 71346A - STAY, REAR SEAT BACK, LH | ||||
| 71346-91703 |
GS120,LS120..WG..SAL |
2 | ||
| 71349B - COVER, REAR SEAT BACK STAY, RH | ||||
| 71349-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71349-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 71349-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
2 | ||
| 71349-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71354A - PLATE, REAR SEAT BACK SET | ||||
| 71354-91602 |
GS120,LS120..WG..SAL |
2 | ||
| 71354A - PLATE, REAR SEAT BACK SET | ||||
| 71354-91602 |
GS120,LS120..WG..SAL |
2 | ||
| 71369B - COVER, REAR SEAT BACK STAY, LH | ||||
| 71369-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 71369-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
2 | ||
| 71369-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71369-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-9173905 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-9173904 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-9174604 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-9174602 |
GS120,LS120..WG..SAL FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71460-9174102 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-9170204 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71470-9170102 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71470-9170205 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-9178004 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-9178402 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71480-9178005 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-9178605 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-9178604 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-9178702 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71480-9178804 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-9178802 |
GS120,LS120..WG..SAL FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-9170205 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-9170102 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71490-9170204 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-9170304 |
GS120,LS120..WG..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-9170402 |
GS120,LS120..WG..SAL GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71490-9170305 |
GS120,LS120..WG..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-9170502 |
GS120,LS120..WG..SAL GRANDSURF,W/*SPG,*TOC,D-MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71540-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71540-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71540-9170505 |
GS120,LS120..WG..SAL W/*SPG,TONNEAU COVER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71540-9170504 |
GS120,LS120..WG..SAL W/*SPG,TONNEAU COVER,BLUE,BLUE,TRIM8# |
1 | ||
| 71540-9170605 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71540-9170705 |
GS120,LS120..WG..SAL W/*SPG,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71540-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71540-9170512 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71540-9170504 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71540-9170802 |
GS120,LS120..WG..SAL GRAND SURF,W/*TOC,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71540-9170704 |
GS120,LS120..WG..SAL W/*SPG,BLUE,BLUE,TRIM8# |
1 | ||
| 71540-9170604 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71540-9170702 |
GS120,LS120..WG..SAL GRAND SURF,W/*SPG,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71540-9170805 |
GS120,LS120..WG..SAL W/TONNEAU COVER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71540-9170602 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71540-9170804 |
GS120,LS120..WG..SAL W/TONNEAU COVER,BLUE,BLUE,TRIM8# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71550-9170205 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71550-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71550-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71550-9170304 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71550-9170204 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71550-9170202 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71550-9170302 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-91705 |
GS120,LS120..WG..SAL |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-91707 |
GS120,LS120..WG..SAL |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-91709 |
GS120,LS120..WG..SAL |
1 | ||
| 71651-91708 |
GS120,LS120..WG..SAL |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71652-91702 |
GS120,LS120..WG..SAL |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71765 - BRACKET, REAR SIDE SEAT BACK SET, FRONT RH | ||||
| 71765-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71766 - BRACKET, REAR SIDE SEAT BACK SET, FRONT LH | ||||
| 71765-91701 |
GS120,LS120..WG..SAL |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601615 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
4 | ||
| 90467-0601604 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
4 | ||
| 90467-0601615 |
GS120,126,LS12#..(V,WG)..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
5 | ||
| 90467-0601604 |
GS120,126,LS12#..V,WG BLUE,BLUE,TRIM8# |
5 | ||
| 90467-0601622 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 90467-0601632 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
4 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601615 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
4 | ||
| 90467-0601604 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
4 | ||
| 90467-0601615 |
GS120,126,LS12#..(V,WG)..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
5 | ||
| 90467-0601604 |
GS120,126,LS12#..V,WG BLUE,BLUE,TRIM8# |
5 | ||
| 90467-0601622 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 90467-0601632 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
4 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71833-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71833-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71833-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71834-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71834-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71834-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71843-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71843-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71843-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71844-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71844-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71844-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71900 - FLOOR ASSY, REAR SEAT | ||||
| 73540-91701 |
GS120,LS120..WG..SAL LH |
1 | ||
| 73530-91701 |
GS120,LS120..WG..SAL RH |
1 | ||
| 71900 - FLOOR ASSY, REAR SEAT | ||||
| 73540-91701 |
GS120,LS120..WG..SAL LH |
1 | ||
| 73530-91701 |
GS120,LS120..WG..SAL RH |
1 | ||
| 71900S - SPRING (FOR REAR SEAT FLOOR) | ||||
| 58489-91702 |
GS120,LS120..WG..SAL LH |
1 | ||
| 58488-91702 |
GS120,LS120..WG..SAL RH |
1 | ||
| 71900S - SPRING (FOR REAR SEAT FLOOR) | ||||
| 58489-91702 |
GS120,LS120..WG..SAL LH |
1 | ||
| 58488-91702 |
GS120,LS120..WG..SAL RH |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GS120,121,LS120,MS12#..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
GS120,121,LS120,MS12#..ROY,SAL ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ無,W/O LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SSL ﾛｯｸ付,W/LOCK,MAROON,DARK WINE,TRIM3# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-9170304 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71940-9170305 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 71940-9170404 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71940-9170412 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-9170304 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71940-9170305 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 71940-9170404 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71940-9170412 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
2 | ||
| 72656A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1403012 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
2 | ||
| 72646-1403004 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 72646-1403005 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1403002 |
GS120,LS120..WG..SAL MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72656A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1403012 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
2 | ||
| 72646-1403004 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 72646-1403005 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1403002 |
GS120,LS120..WG..SAL MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72723 - PIN, REAR SEAT CUSHION, NO.2 | ||||
| 90249-10090 |
GS120,LS120..WG..SAL |
4 | ||
| 72723 - PIN, REAR SEAT CUSHION, NO.2 | ||||
| 90249-10090 |
GS120,LS120..WG..SAL |
4 | ||
| 72727A - KNOB, REAR SEAT RECLINING CONTROL LEVER | ||||
| 72727-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 72727-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
2 | ||
| 72727-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
2 | ||
| 72727-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 72727A - KNOB, REAR SEAT RECLINING CONTROL LEVER | ||||
| 72727-9170105 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
2 | ||
| 72727-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3# |
2 | ||
| 72727-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
2 | ||
| 72727-9170104 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-91703 |
GS120,LS120..WG..SAL |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-91703 |
GS120,LS120..WG..SAL |
1 | ||
| Common parts | ||||
| 90109-10065 | ||||
| 90119-10177 | ||||
| 90159-40206 | ||||
| 90168-40043 | ||||
| 90168-60006 | ||||
| 90179-10033 | ||||
| 91655-41025 | ||||
| 91656-41025 | ||||
| 93312-24006 | ||||
| 93530-54012 | ||||
| 93540-15014 | ||||
| 94543-01000 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 6404 | ||||
ILLUST NO. 2 OF 2(8308- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71091 - LINK SUB-ASSY, 3RD SEAT, RH | ||||
| 72905-9170302 |
GS120,LS120..WG..(4FC,4HC,5F) DEEP MAROON,RED/MAROON,TRIM4# |
1 | ||
| 72905-9170304 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 71092 - LINK SUB-ASSY, 3RD SEAT, LH | ||||
| 72906-9170304 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72906-9170302 |
GS120,LS120..WG..(4FC,4HC,5F) DEEP MAROON,RED/MAROON,TRIM4# |
1 | ||
| 71343 - BRACKET, 3RD SEAT BACK | ||||
| 72955-91701 |
GS120,LS120..WG |
4 | ||
| 71343 - BRACKET, 3RD SEAT BACK | ||||
| 72955-91701 |
GS120,LS120..WG |
4 | ||
| 71540 - CUSHION ASSY, 3RD SEAT | ||||
| 72910-9170602 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72910-9170612 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72910-9170604 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 72910-9170605 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71550 - BACK SUB-ASSY, SIDE SEAT | ||||
| 72940-9170512 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72940-9170505 |
GS120,LS120..WG..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 72940-9170504 |
GS120,LS120..WG..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 72940-9170502 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71709 - STRAP SUB-ASSY, 3RD SEAT BACK | ||||
| 72921-9170105 |
GS120,LS120..WG..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72921-9170104 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72921-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72921-9170114 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72921-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71915 - BOLT, SEAT LINK CONNECTING | ||||
| 90109-10043 |
GS120,LS120..WG |
4 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-9170115 |
GS120,LS120..WG..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72918-9170102 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72918-9170114 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72918-9170112 |
GS120,LS120..WG..SAL MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 71373-91501 | ||||
| 90159-40011 | ||||
| 90159-60004 | ||||
| 90168-60006 | ||||
| 90205-09001 | ||||
| 90206-12035 | ||||
| 90386-13002 | ||||
| 90562-10106 | ||||
| 93540-24010 | ||||
| 94611-11001 | ||||
| 94612-11300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
