GS120G-SWSGE (1983)
Toyota Crown

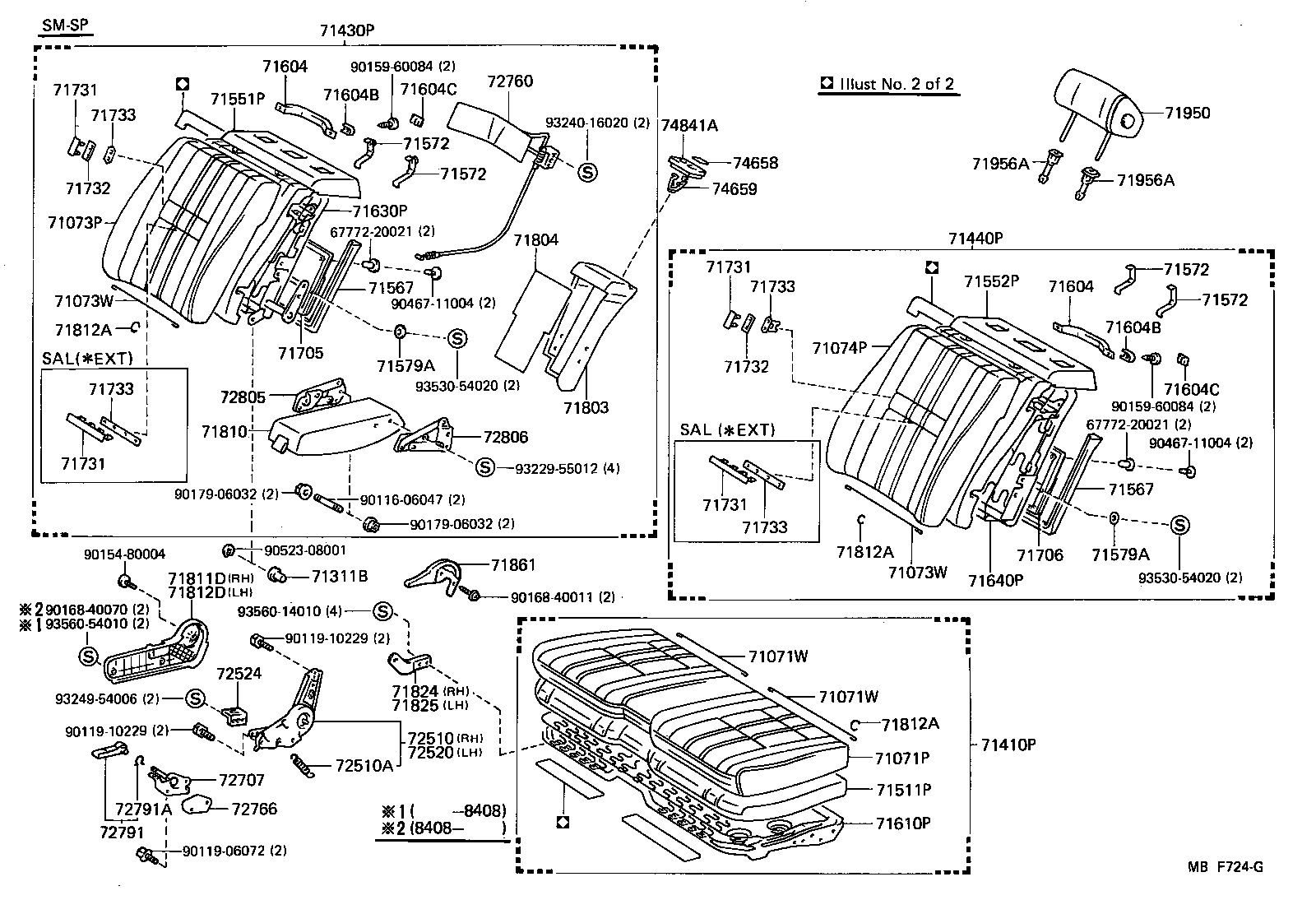

ILLUST NO. 1 OF 3(8308- )4H,4HC..ROY,SAL,SDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A14005 |
GS120..(SED,WG)..4HC..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A14004 |
GS120..(SED,WG)..4HC..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-9170602 |
GS120..WG..4HC GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71071-9170904 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-9170902 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20103 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1150 |
1 | ||
| 90580-20122 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=200 |
1 | ||
| 90580-29010 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 90580-20139 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1020 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20103 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1150 |
1 | ||
| 90580-20122 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=200 |
1 | ||
| 90580-29010 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 90580-20139 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1020 |
2 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A04004 |
GS120..(SED,WG)..4HC..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A04005 |
GS120..(SED,WG)..4HC..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-9170702 |
GS120..WG..4HC GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71073-9171002 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-9171004 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=110 |
4 | ||
| 90580-26019 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=420 |
2 | ||
| 90580-20076 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=340 |
4 | ||
| 90580-20072 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=230 |
4 | ||
| 90580-29010 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=110 |
4 | ||
| 90580-26019 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=420 |
2 | ||
| 90580-20076 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=340 |
4 | ||
| 90580-20072 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=230 |
4 | ||
| 90580-29010 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71074-3064005 |
GS120..(SED,WG)..4HC..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3064004 |
GS120..(SED,WG)..4HC..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-9170302 |
GS120..WG..4HC GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71074-9170602 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-9170604 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 90386-12030 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A30004 |
GS120..(SED,WG)..4HC..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A30005 |
GS120..(SED,WG)..4HC..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-9170502 |
GS120..WG..4HC GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71410-9170802 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-9170804 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3A47004 |
GS120..(SED,WG)..4HC..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47005 |
GS120..(SED,WG)..4HC..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-9173002 |
GS120..WG..4HC GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71430-9173302 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-9173304 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-9173502 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-9173504 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3A22005 |
GS120..(SED,WG)..4HC..SAL FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A22004 |
GS120..(SED,WG)..4HC..SAL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-9172102 |
GS120..WG..4HC GRAND SURF,FB,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71440-9172402 |
GS120..WG..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-9172404 |
GS120..WG..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30610 |
GS120,121,MS123..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
GS120,MS120..(SED,WG)..(4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
GS120,MS120..(SED,WG)..(4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
GS120,121,MS12#..(SED,WG)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
GS120,121,MS12#..(SED,WG)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
GS120,121,LS120,MS12#,YS120 |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
GS120,121,LS120,MS12#,YS120 |
4 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3005002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74620-3005012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
2 | ||
| 74620-3005004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3005002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74620-3005012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
2 | ||
| 74620-3005004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71604B - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS120,121,LS120,MS12#..ROY,SAL |
4 | ||
| 71604B - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS120,121,LS120,MS12#..ROY,SAL |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-3002002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 74617-3002024 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
4 | ||
| 74617-3002012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-3002002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 74617-3002024 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
4 | ||
| 74617-3002012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
4 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30390 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30460 |
GS120..(4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30280 |
GS120..(4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3017002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3017005 |
GS120,LS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017004 |
GS120,LS120..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018004 |
GS120,LS120..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
GS120,LS120..SAL *EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3017005 |
GS120,LS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017004 |
GS120,LS120..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3017002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3018004 |
GS120,LS120..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
GS120,LS120..SAL *EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3010004 |
GS120..(SED,WG)..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3010006 |
GS120..(SED,WG)..4HC..SAL SM-SP,BEIGE,BROWN,TRIM4# |
1 | ||
| 71170-3010002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71170-3018002 |
GS120..(SED,WG)..4HC..SAL SM-SP,*EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71170-3018004 |
GS120..(SED,WG)..4HC..SAL SM-SP,*EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71804 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLE | ||||
| 71801-3026005 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71801-3026012 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71801-3026002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71801-3026004 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3017005 |
GS120..(SED,WG)..4HC..SAL SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3017004 |
GS120..(SED,WG)..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3017002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72810-3012004 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3012002 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 72810-3012104 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3012102 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021004 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021005 |
GS120,121,MS123,125..(SED,WG)..4HC SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3021002 |
GS120..WG..4HC GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3021102 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71811-3021104 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3011004 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011005 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3011002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3011102 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3011104 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30270 |
GS120,121,LS120,MS125,YS120..(SED,WG)..(4H,4HC) SP-BN,SM-SP |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30250 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71875-3003002 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71875-3003004 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3038004 |
GS120,LS120..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3038005 |
GS120,LS120..SAL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014005 |
GS120,LS120..SAL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014004 |
GS120,LS120..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3039002 |
GS120,LS120..WG..SAL GRAND SURF,RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71920-3015002 |
GS120,LS120..WG..SAL GRAND SURF,LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3039024 |
GS120,LS120..(SED,WG)..SAL *EXT,RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3039022 |
GS120,LS120..(SED,WG)..SAL *EXT,RH,MAROON,MAROON,TRIM3# |
1 | ||
| 71920-3015024 |
GS120,LS120..(SED,WG)..SAL LH,*EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3015022 |
GS120,LS120..(SED,WG)..SAL LH,*EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ無,W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ無,W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30290 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72510-30291 |
MS120..(4H,4HC)..SDX;GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72510-30281 |
MS120..4FC..SDX;GS120,121,LS120,MS125..(SED,WG)..(4FC,4H,5F)..(ROY,SAL,SDX) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE LH |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30230 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE |
1 | ||
| 72520-30231 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005045 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004045 |
GS120,121,LS120,MS12#..ROY,SAL,SPE LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004012 |
GS120,LS120..WG..SAL GRAND SURF,LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005024 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004024 |
GS120,121,LS120,MS12#..ROY,SAL,SPE,SSL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005012 |
GS120,LS120..WG..SAL GRAND SURF,RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004022 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2005022 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30080 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72766 - PATCH, LUMBAR SUPPORT BRACKET | ||||
| 72766-30010 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002025 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002012 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002014 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002022 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 90520-01002 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) LOUNGE |
1 | ||
| 72805 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, RH | ||||
| 72805-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72806 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, LH | ||||
| 72806-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-3009004 |
GS120,MS120..(4H,4HC)..(SAL,SDX) SM-SP,LOUNGE,76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009004 |
GS120,MS120..(4H,4HC)..(SAL,SDX) SM-SP,76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74843-3009005 |
GS120..4HC SM-SP,LOUNGE,76X40,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74843-30100 |
GS120,121,MS12#..(4H,4HC)..(ROY,SAL,SDX) SM-SP,LOUNGE,OD=41 |
1 | ||
| 74843-3009012 |
GS120..(SED,WG)..4HC..(SAL,SDX) SM-SP,76X40,MAROON,MAROON,TRIM3# |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30020 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3005002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74841-3005005 |
GS120,121,MS123,125..(SED,WG)..4HC SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3005004 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3005012 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90116-06047 | ||||
| 90119-06072 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90159-60084 | ||||
| 90168-40011 | ||||
| 90168-40070 | ||||
| 90179-06032 | ||||
| 90467-11004 | ||||
| 90523-08001 | ||||
| 93229-55012 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||

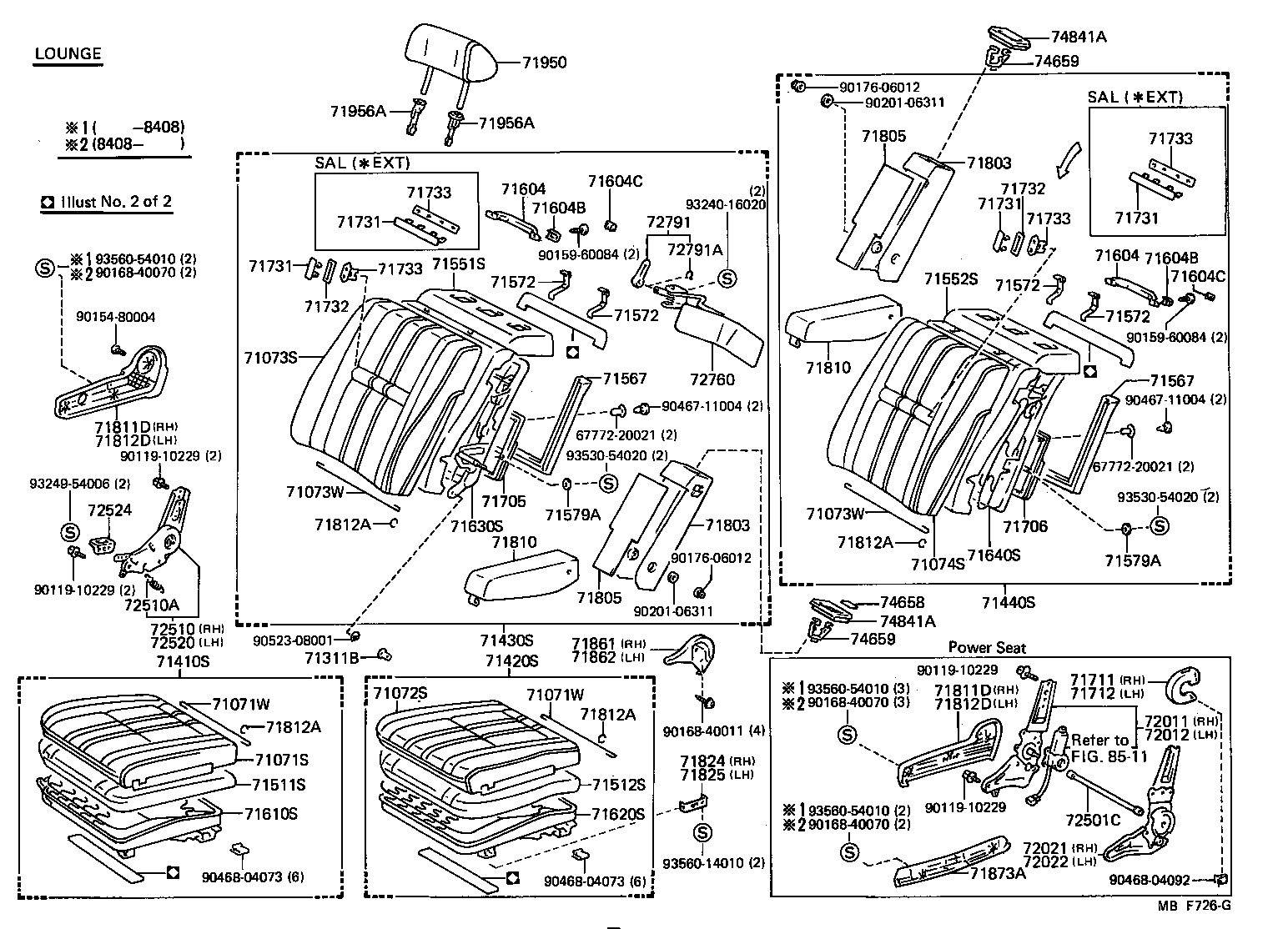

ILLUST NO. 1 OF 3(8308- )4HC..ROY,SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20103 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1150 |
1 | ||
| 90580-20122 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=200 |
1 | ||
| 90580-29010 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 90580-20139 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1020 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20103 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1150 |
1 | ||
| 90580-20122 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=200 |
1 | ||
| 90580-29010 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 90580-20139 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=1020 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=110 |
4 | ||
| 90580-26019 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=420 |
2 | ||
| 90580-20076 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=340 |
4 | ||
| 90580-20072 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=230 |
4 | ||
| 90580-29010 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=110 |
4 | ||
| 90580-26019 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=420 |
2 | ||
| 90580-20076 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=340 |
4 | ||
| 90580-20072 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=230 |
4 | ||
| 90580-29010 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,L=280 |
4 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 90386-12030 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
GS120,121,MS12#..(SED,WG)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
GS120,121,MS12#..(SED,WG)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
GS120,121,LS120,MS12#,YS120 |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
GS120,121,LS120,MS12#,YS120 |
4 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3005002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74620-3005012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
2 | ||
| 74620-3005004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3005002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74620-3005012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
2 | ||
| 74620-3005004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
2 | ||
| 71604B - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS120,121,LS120,MS12#..ROY,SAL |
4 | ||
| 71604B - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS120,121,LS120,MS12#..ROY,SAL |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-3002002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 74617-3002024 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
4 | ||
| 74617-3002012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-3002002 |
GS120,121,LS120,MS12#..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 74617-3002024 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
4 | ||
| 74617-3002012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,MAROON,TRIM3# |
4 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3017002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3017005 |
GS120,LS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017004 |
GS120,LS120..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018004 |
GS120,LS120..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
GS120,LS120..SAL *EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3017005 |
GS120,LS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017004 |
GS120,LS120..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3017002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3018004 |
GS120,LS120..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
GS120,LS120..SAL *EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-30090 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30070 |
GS120,LS120..SAL *EXT |
2 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3010004 |
GS120..(SED,WG)..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3010006 |
GS120..(SED,WG)..4HC..SAL SM-SP,BEIGE,BROWN,TRIM4# |
1 | ||
| 71170-3010002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71170-3018002 |
GS120..(SED,WG)..4HC..SAL SM-SP,*EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71170-3018004 |
GS120..(SED,WG)..4HC..SAL SM-SP,*EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3010004 |
GS120..(SED,WG)..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3010006 |
GS120..(SED,WG)..4HC..SAL SM-SP,BEIGE,BROWN,TRIM4# |
1 | ||
| 71170-3010002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71170-3018002 |
GS120..(SED,WG)..4HC..SAL SM-SP,*EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71170-3018004 |
GS120..(SED,WG)..4HC..SAL SM-SP,*EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3017005 |
GS120..(SED,WG)..4HC..SAL SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3017004 |
GS120..(SED,WG)..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3017002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72810-3012004 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3012002 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 72810-3012104 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3012102 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3017005 |
GS120..(SED,WG)..4HC..SAL SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3017004 |
GS120..(SED,WG)..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3017002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72810-3012004 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3012002 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 72810-3012104 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3012102 |
GS120..(SED,WG)..4HC..SAL *EXT,SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021004 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021005 |
GS120,121,MS123,125..(SED,WG)..4HC SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3021002 |
GS120..WG..4HC GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3021102 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71811-3021104 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021004 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021005 |
GS120,121,MS123,125..(SED,WG)..4HC SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3021002 |
GS120..WG..4HC GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3021102 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71811-3021104 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3011004 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011005 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3011002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3011102 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3011104 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3011004 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011005 |
GS120,121,LS120,MS12#..ROY,SAL,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3011002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3011102 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3011104 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30270 |
GS120,121,LS120,MS125,YS120..(SED,WG)..(4H,4HC) SP-BN,SM-SP |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30250 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71875-3003002 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 71875-3003004 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71876-3001004 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) W/SP,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71876-3001002 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) W/SP,LOUNGE,MAROON,MAROON,TRIM3# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3038004 |
GS120,LS120..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3038005 |
GS120,LS120..SAL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014005 |
GS120,LS120..SAL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014004 |
GS120,LS120..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3039002 |
GS120,LS120..WG..SAL GRAND SURF,RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71920-3015002 |
GS120,LS120..WG..SAL GRAND SURF,LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3039024 |
GS120,LS120..(SED,WG)..SAL *EXT,RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3039022 |
GS120,LS120..(SED,WG)..SAL *EXT,RH,MAROON,MAROON,TRIM3# |
1 | ||
| 71920-3015024 |
GS120,LS120..(SED,WG)..SAL LH,*EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3015022 |
GS120,LS120..(SED,WG)..SAL LH,*EXT,MAROON,MAROON,TRIM3# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ無,W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GS120,LS120..WG..SAL ﾛｯｸ付,GRAND SURF,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GS120,LS120..WG..SAL ﾛｯｸ無,GRAND SURFW/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL ﾛｯｸ無,W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006025 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30290 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72510-30291 |
MS120..(4H,4HC)..SDX;GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72510-30281 |
MS120..4FC..SDX;GS120,121,LS120,MS125..(SED,WG)..(4FC,4H,5F)..(ROY,SAL,SDX) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE LH |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30230 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE |
1 | ||
| 72520-30231 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005045 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004045 |
GS120,121,LS120,MS12#..ROY,SAL,SPE LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004012 |
GS120,LS120..WG..SAL GRAND SURF,LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005024 |
GS120,121,LS120,MS12#..(SED,WG)..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004024 |
GS120,121,LS120,MS12#..ROY,SAL,SPE,SSL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005012 |
GS120,LS120..WG..SAL GRAND SURF,RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004022 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2005022 |
GS120,121,LS120,MS125..(SED,WG)..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30080 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002025 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002012 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002014 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002022 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 90520-01002 |
GS120,121,MS123,125..(SED,WG)..4HC..(ROY,SAL) LOUNGE |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-3009004 |
GS120,MS120..(4H,4HC)..(SAL,SDX) SM-SP,LOUNGE,76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009004 |
GS120,MS120..(4H,4HC)..(SAL,SDX) SM-SP,76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74843-3009005 |
GS120..4HC SM-SP,LOUNGE,76X40,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74843-30100 |
GS120,121,MS12#..(4H,4HC)..(ROY,SAL,SDX) SM-SP,LOUNGE,OD=41 |
1 | ||
| 74843-3009012 |
GS120..(SED,WG)..4HC..(SAL,SDX) SM-SP,76X40,MAROON,MAROON,TRIM3# |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30020 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30020 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3005002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74841-3005005 |
GS120,121,MS123,125..(SED,WG)..4HC SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3005004 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3005012 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3005002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74841-3005005 |
GS120,121,MS123,125..(SED,WG)..4HC SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3005004 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3005012 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90159-60084 | ||||
| 90168-40011 | ||||
| 90168-40070 | ||||
| 90176-06012 | ||||
| 90201-06311 | ||||
| 90467-11004 | ||||
| 90468-04073 | ||||
| 90468-04092 | ||||
| 90523-08001 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) | ||||
| 72110-30280 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) | ||||
| 72120-30230 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-2201004 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72213-2201002 |
GS120..WG..4HC GRAND SURF,SM-SP,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72213-2201012 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,MAROON,MAROON,TRIM3# |
1 | ||
| 72213-2201005 |
GS120,121,MS123,125..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SP-BN,SM-SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72213-2201006 |
GS120,121,MS125..(SED,WG)..4HC..(ROY,SAL) SM-SP,BROWN,BROWN,TRIM4# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08079 | ||||
| 90119-10349 | ||||
| 90179-10015 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 91611-40616 | ||||
| 94543-01000 | ||||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-10349 | ||||
| 90179-06034 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90540-17004 | ||||
ILLUST NO. 2 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
GS120,121,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP,SEAT CUSHION |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71523-30020 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
4 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
1 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
GS120,MS12#..(SED,WG)..(4H,4HC)..(ROY,SAL,SDX) SM-SP |
2 | ||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001002 |
GS120,LS120..WG..SAL GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001012 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08085 | ||||
| 90119-10349 | ||||
| 90168-40068 | ||||
| 90179-10015 | ||||
| 91112-40612 | ||||
| 91131-40650 | ||||
| 91611-40612 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
