GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

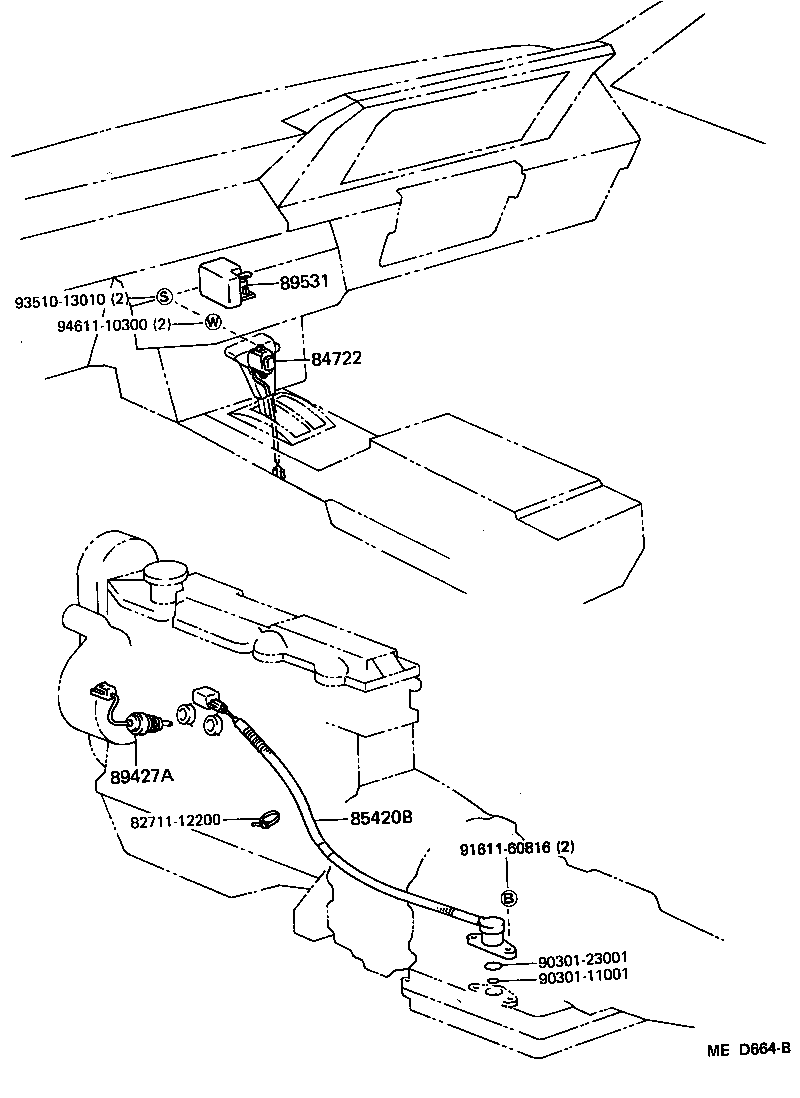

Click highlighted areas on diagram

diagram 8271112200 84722 85420B 89427A 89531 9030111001 9030123001 9161160816 9351013010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-1407004

GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE)

BLUE,BLUE,TRIM8#

 1
84722-1407016

GS120,LS12#,MS120..4FC

BROWN,BROWN,TRIM4#

 1
84722-1407002

GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
84722-1407005

GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE)

BEIGE,BEIGE,TRIM4#

 1
84722-1407012

GS120,LS12#,MS120..4FC

MAROON,MAROON,TRIM3#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30090

GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)

 1
89427A - SWITCH, TEMPERATURE
89428-30050

GS120..ATM

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-30040

GS120,LS12#,MS120..ATM

 1
89531-28010

GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)

 1
Common parts
82711-12200
90301-11001
90301-23001
91611-60816
93510-13010
94611-10300
