GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )V,WG

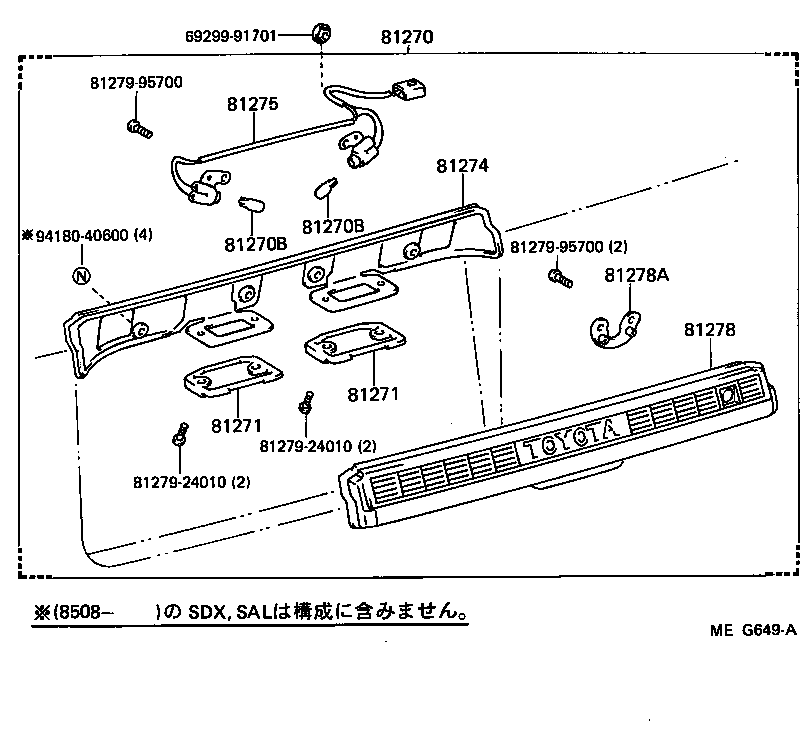

Click highlighted areas on diagram

diagram 6929991701 81270 81270B 81270B 81271 81271 81274 81275 81278 81278A 8127924010 8127924010 8127995700 8127995700 9418040600
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80018

GS120,126,LS120..(V,WG)..(SAL,SDX)

 1
81270-91706

GS120,126,LS120..(V,WG)..(SAL,SDX)

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GS120,126,LS12#..V,WG

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GS120,126,LS12#..V,WG

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-91C01

GS120,126,LS12#..V,WG

 2
81271 - LENS, LICENSE PLATE LAMP
81271-91C01

GS120,126,LS12#..V,WG

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-91704

GS120,126,LS12#..V,WG

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-91704

GS120,126,LS12#..V,WG

 1
81278 - COVER, LICENSE PLATE LAMP
81276-91704

GS120,126,LS120..(V,WG)..(SAL,SDX)

 1
81276-91706

GS120,126,LS120..(V,WG)..(SAL,SDX)

 1
81278A - BRACKET, LICENSE PLATE LAMP
81278-91704

GS120,126,LS12#..V,WG

 1
Common parts
69299-91701
81279-24010
81279-95700
94180-40600
