GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )V,WG

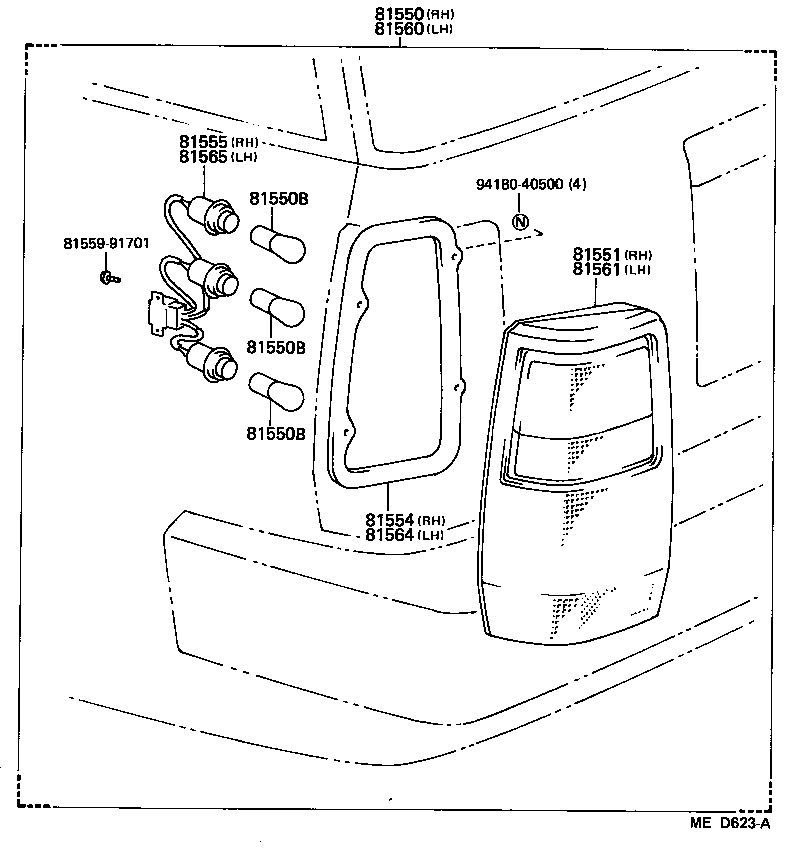

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 8155991701 81560 81561 81564 81565 9418040500
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80188

GS120,126,LS12#..V,WG

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GS12#,LS12#,MS12#,YS120

12V 21/5W,12V 21/5W(STOP,TAIL & PARKING)

 4
99132-11230

GS12#,LS12#,MS12#,YS120

12V 23W,12V 23W(BACK & TURN)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GS12#,LS12#,MS12#,YS120

12V 21/5W,12V 21/5W(STOP,TAIL & PARKING)

 4
99132-11230

GS12#,LS12#,MS12#,YS120

12V 23W,12V 23W(BACK & TURN)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GS12#,LS12#,MS12#,YS120

12V 21/5W,12V 21/5W(STOP,TAIL & PARKING)

 4
99132-11230

GS12#,LS12#,MS12#,YS120

12V 23W,12V 23W(BACK & TURN)

 6
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91704

GS120,126,LS12#..V,WG

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-91704

GS120,126,LS12#..V,WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91704

GS120,126,LS12#..V,WG

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80193

GS120,126,LS12#..V,WG

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91703

GS120,126,LS12#..V,WG

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-91704

GS120,126,LS12#..V,WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-91704

GS120,126,LS12#..V,WG

 1
Common parts
81559-91701
94180-40500
