GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

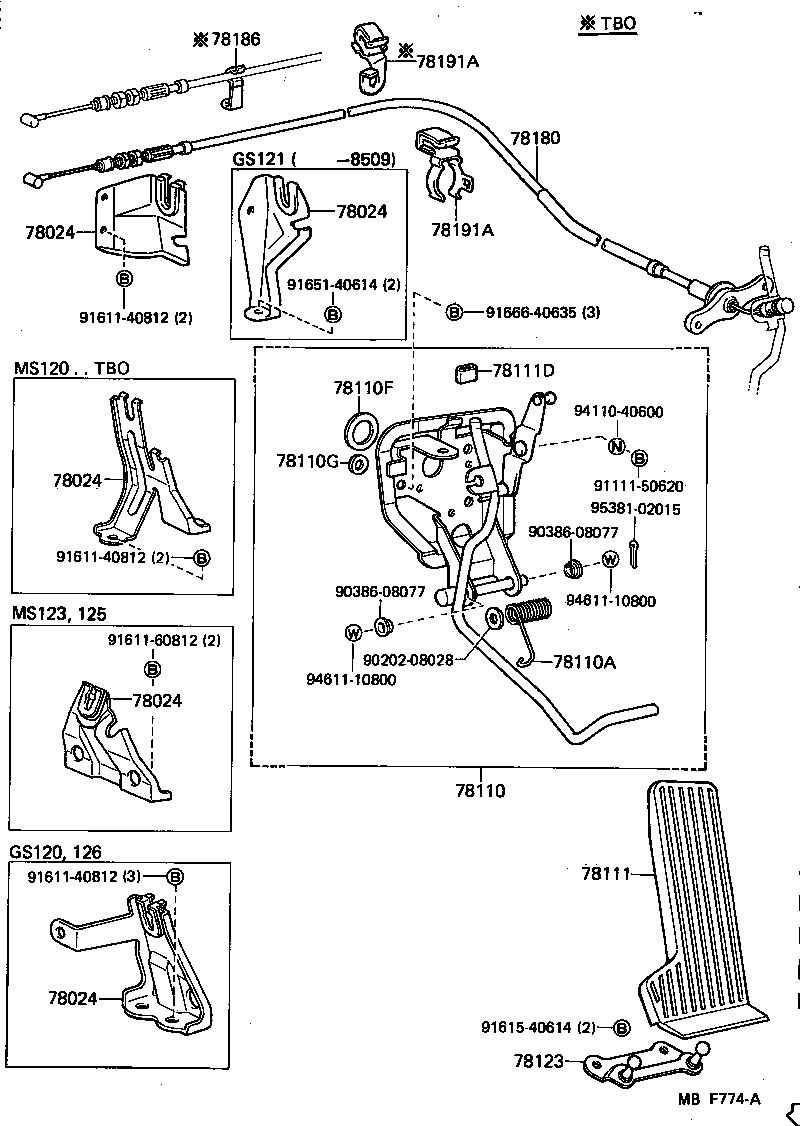

ILLUST NO. 1 OF 2(8308- )EFI,SPC,TBO,TWC

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78024 78110 78110A 78110F 78110G 78111 78111D 78123 78180 78186 78191A 78191A 9020208028 9038608077 9038608077 9111150620 9161140812 9161140812 9161140812 9161160812 9161540614 9165140614 9166640635 9411040600 9461110800 9461110800 9538102015
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30440

GS120,121,LS12#,MS12#..ATM

COLD SPEC

 1
78120-30460

GS120,121,LS12#,MS123,125..ATM

 1
78120-30500

GS120,121,LS12#..ATM

COLD SPEC

 1
78120-30500

GS120,121,LS12#,MS123,125..ATM

COLD SPEC

 1
78120-30460

GS120,121,LS12#..ATM

 1
78120-30440

GS120,121,LS12#..ATM

COLD SPEC

 1
78120-30370

GS120,121,LS12#,MS120..ATM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23026

GS120,121,LS12#,MS12#..ATM

COLD SPEC

 1
90508-18016

GS120,121,LS12#,MS12#..ATM

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS12#,LS12#,MS12#,YS120

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS12#,LS12#,MS12#,YS120

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS12#,LS12#,MS12#,YS120

 1
78111-12100

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS12#,LS12#,MS12#,YS120

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30050

GS12#,LS12#,MS12#,YS120

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30400

GS120,126

 1
Common parts
90202-08028
90386-08077
91111-50620
91611-40812
91611-60812
91615-40614
91651-40614
91666-40635
94110-40600
94611-10800
95381-02015

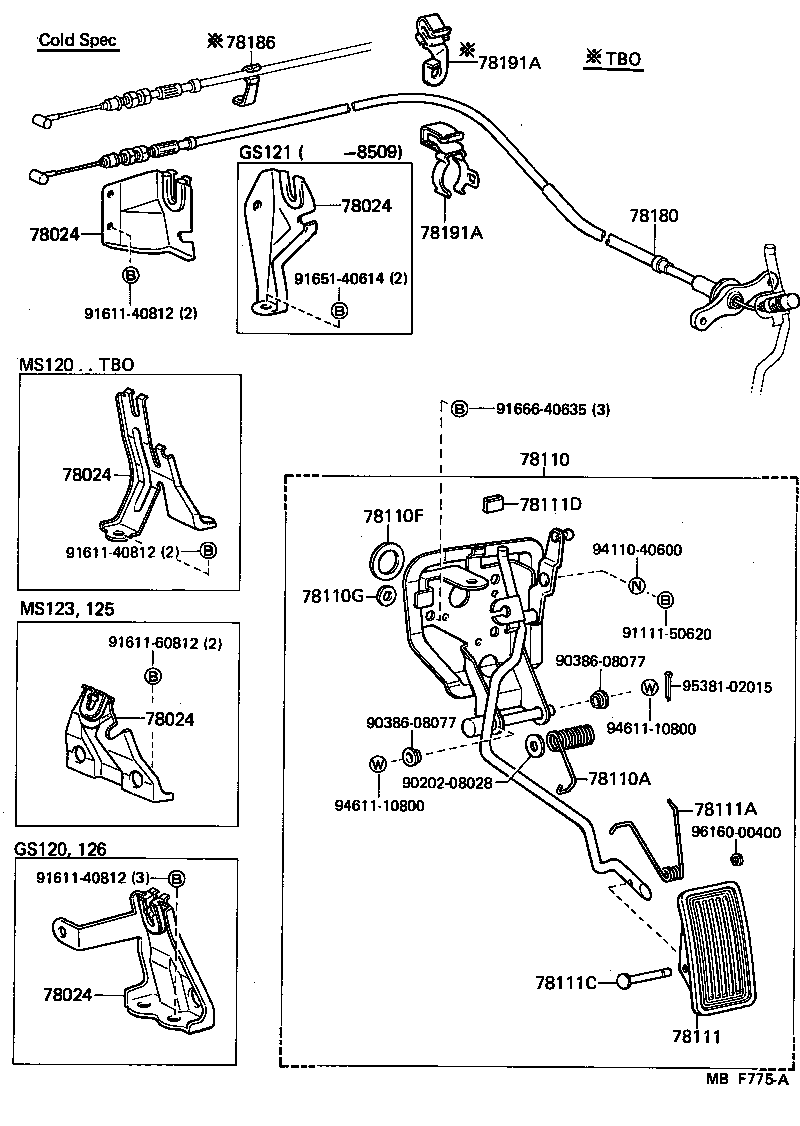

ILLUST NO. 2 OF 2(8308- )EFI,SPC,TBO,TWC

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78024 78110 78110A 78110F 78110G 78111 78111A 78111C 78111D 78180 78186 78191A 78191A 9020208028 9038608077 9038608077 9111150620 9161140812 9161140812 9161140812 9161160812 9165140614 9166640635 9411040600 9461110800 9461110800 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30020

GS120,126

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30440

GS120,121,LS12#,MS12#..ATM

COLD SPEC

 1
78120-30460

GS120,121,LS12#,MS123,125..ATM

 1
78120-30500

GS120,121,LS12#..ATM

COLD SPEC

 1
78120-30500

GS120,121,LS12#,MS123,125..ATM

COLD SPEC

 1
78120-30460

GS120,121,LS12#..ATM

 1
78120-30440

GS120,121,LS12#..ATM

COLD SPEC

 1
78120-30370

GS120,121,LS12#,MS120..ATM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23026

GS120,121,LS12#,MS12#..ATM

COLD SPEC

 1
90508-18016

GS120,121,LS12#,MS12#..ATM

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS12#,LS12#,MS12#,YS120

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS12#,LS12#,MS12#,YS120

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS12#,LS12#,MS12#,YS120

 1
78111-12100

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-16064

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GS12#,LS12#,MS12#,YS120

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS12#,LS12#,MS12#,YS120

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30400

GS120,126

 1
Common parts
90202-08028
90386-08077
91111-50620
91611-40812
91611-60812
91651-40614
91666-40635
94110-40600
94611-10800
95381-02015
96160-00400
