GS120G-SWPFE (1983)
Toyota Crown

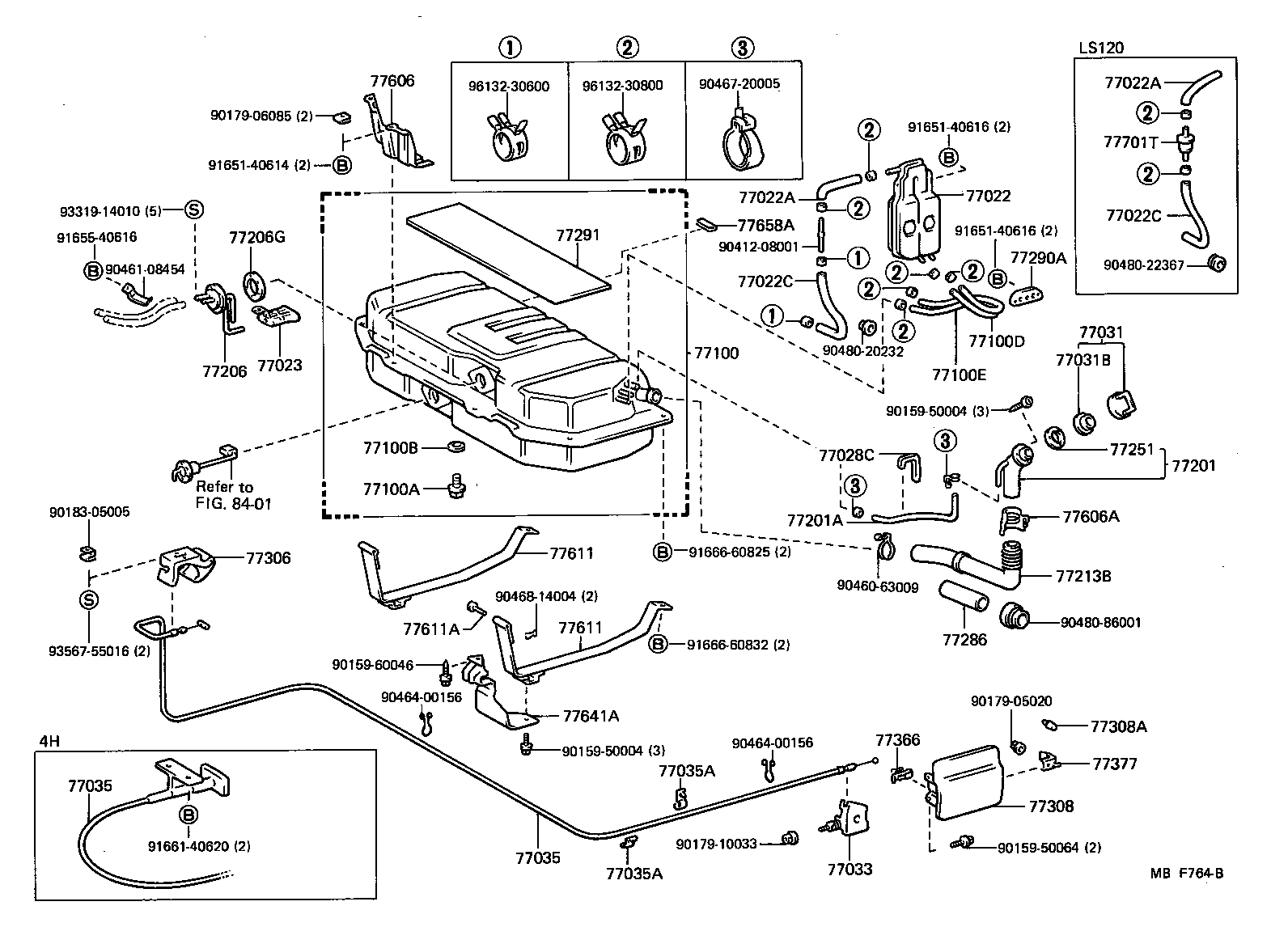

ILLUST NO. 1 OF 2(8308- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-91701 |
GS120,126,LS12#..V,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
GS120,126,LS12#..V,WG *H,L=140,内径=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
GS120,126,LS12#..V,WG *H,L=140,内径=7.6 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
GS120..WG *H,L=480 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
GS120..WG *H,L=480 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
GS120,126,MS120..EFI,TBO |
1 | ||
| 77028C - TRIM, HOSE PROTECTOR | ||||
| 62593-91501 |
GS120,LS120..WG |
1 | ||
| 77276-91701 |
GS120,LS120..WG |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GS12#,LS12#,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-32010 |
GS120,126,LS12#..V,WG |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-91701 |
GS120,126,LS12#..(V,WG)..(4FC,4HC,5F) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-91701 |
GS120,126,LS12#..(V,WG)..(4FC,4HC,5F) |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
GS120,126,LS12#..V,WG |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
GS120,126,LS12#..V,WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39155 |
GS120,LS120..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
GS12#,LS12#,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS12#,LS12#,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95332-08080 |
GS120,LS120..WG *H,L=800,内径=7.6 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-14114 |
GS120,LS120..WG 長さ=800 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91706 |
GS120,LS120..WG |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22008 |
GS120,LS120..WG 長さ=760 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-91703 |
GS120..WG |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
GS120,126,LS12#..V,WG |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-91704 |
GS120,LS120..WG |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
GS12#,LS12#,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77286-91501 |
GS120,126,LS12#..V,WG |
1 | ||
| 77290A - GROMMET ASSY, FUEL HOSE | ||||
| 77290-91701 |
GS120,LS120..WG |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77242-91501 |
GS120,126,LS12#..V,WG |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-3005005 |
GS12#,LS12#,MS123,125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 77051-3005004 |
GS12#,LS12#,MS123,125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3005006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 77051-3005004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91703 |
GS120,126,LS12#..V,WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 90541-08003 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 90541-08011 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77632-91701 |
GS120,LS120..WG |
1 | ||
| 77606A - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77606-91701 |
GS120,LS120..WG |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-91702 |
GS120,LS120..WG |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-91702 |
GS120,LS120..WG |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
GS120,LS120..WG |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-91701 |
GS120,LS120..WG |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-91701 |
GS120,LS120..WG |
2 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90159-50064 | ||||
| 90159-60046 | ||||
| 90179-05020 | ||||
| 90179-06085 | ||||
| 90179-10033 | ||||
| 90183-05005 | ||||
| 90412-08001 | ||||
| 90460-63009 | ||||
| 90461-08454 | ||||
| 90464-00156 | ||||
| 90467-20005 | ||||
| 90468-14004 | ||||
| 90480-20232 | ||||
| 90480-22367 | ||||
| 90480-86001 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 91661-40620 | ||||
| 91666-60825 | ||||
| 91666-60832 | ||||
| 93319-14010 | ||||
| 93567-55016 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

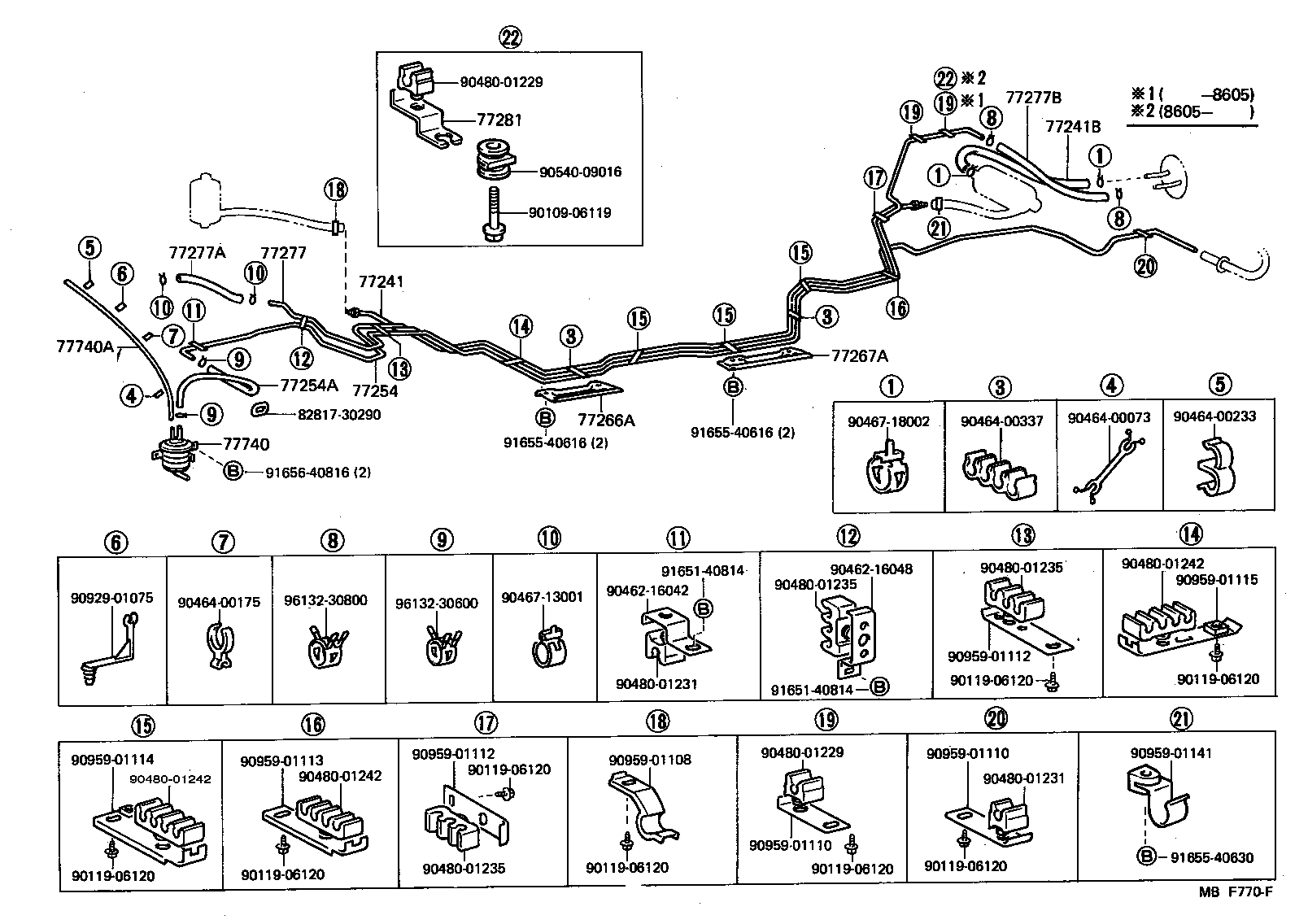

ILLUST NO. 2 OF 2(8308- )GS120..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-30200 |
GS120..WG |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77259-91705 |
GS120..WG |
1 | ||
| 77259-91708 |
GS120..WG |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-30060 |
GS120..WG |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06060 |
GS12#,LS12#,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC *H,L=440 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-30130 |
GS120..WG |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95335-08034 |
GS120,126 L=340 |
1 | ||
| 95336-08034 |
GS120,126 *H,L=340 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 77279-91701 |
GS120..WG |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-91701 |
GS120..WG |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30100 |
GS12#,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08218 |
GS120,126 *H,L=1650 |
1 | ||
| 90445-08211 |
GS120,126 長さ=1400 |
1 | ||
| Common parts | ||||
| 82817-30290 | ||||
| 90109-06119 | ||||
| 90119-06120 | ||||
| 90462-16042 | ||||
| 90462-16048 | ||||
| 90464-00073 | ||||
| 90464-00175 | ||||
| 90464-00233 | ||||
| 90464-00337 | ||||
| 90467-13001 | ||||
| 90467-18002 | ||||
| 90480-01229 | ||||
| 90480-01231 | ||||
| 90480-01235 | ||||
| 90480-01242 | ||||
| 90540-09016 | ||||
| 90929-01075 | ||||
| 90959-01108 | ||||
| 90959-01110 | ||||
| 90959-01112 | ||||
| 90959-01113 | ||||
| 90959-01114 | ||||
| 90959-01115 | ||||
| 90959-01141 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||
| 91656-40816 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
