GS120G-SWPFE (1983)
Toyota Crown
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08164 | ||||
| 90179-08143 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 90506-12035 | ||||
| 91611-40616 | ||||
| 91611-60814 | ||||
| 94543-01000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 1 OF 2(8308- )WG..SDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-9173605 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-9173606 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71075-9173604 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-9174904 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-9174906 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-9173904 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-9173905 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-9173906 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71077-9174906 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71077-9174904 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 71301-91702 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
2 | ||
| 71354A - PLATE, REAR SEAT BACK SET | ||||
| 71354-91602 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-9173605 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-9173606 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71460-9173604 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-9174906 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71460-9174904 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-9177705 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-9177704 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-9177706 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71480-91E0304 |
GS120,LS120..WG..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-91E0306 |
GS120,LS120..WG..(4FC,5F)..SDX FB,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71602 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-91702 |
GS120,LS120..WG..SDX |
1 | ||
| 71603 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-91702 |
GS120,LS120..WG..SDX |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-91702 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
1 | ||
| 71503-91703 |
GS120,LS120..WG..SDX |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-91706 |
GS120,LS120..WG..SDX |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-91707 |
GS120,LS120..WG..SDX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-91716 |
GS120,LS120..WG..SDX |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71695-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
2 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601615 |
GS120,126,LS12#..(V,WG)..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
5 | ||
| 90467-0601604 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) BLUE |
6 | ||
| 90467-0601604 |
GS120,126,LS12#..V,WG BLUE,BLUE,TRIM8# |
5 | ||
| 90467-0601615 |
GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX) BEIGE |
6 | ||
| 90467-0601656 |
GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX) BROWN,SEPIA BROWN,TRIM4# |
6 | ||
| 71900 - FLOOR ASSY, REAR SEAT | ||||
| 73505-91703 |
GS120,LS120..WG..SDX |
1 | ||
| 71900S - SPRING (FOR REAR SEAT FLOOR) | ||||
| 58488-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) RH |
1 | ||
| 58489-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) LH |
1 | ||
| 71900S - SPRING (FOR REAR SEAT FLOOR) | ||||
| 58488-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) RH |
1 | ||
| 58489-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) LH |
1 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-91701 |
GS120,LS120..WG..SDX |
2 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-91701 |
GS120,LS120..WG..SDX |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
2 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72619-1401106 |
GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX) BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 72619-1401105 |
GS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX) BEIGE,BEIGE,TRIM4# |
2 | ||
| 72619-1401104 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) BLUE,BLUE,TRIM8# |
2 | ||
| 72622 - ROD, REAR SEAT BACK STOPPER CONNECTING | ||||
| 72659-91701 |
GS120,LS120..WG..SDX |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72658-9170105 |
GS120,LS120..WG..SDX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72658-9170104 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
2 | ||
| 72658-9170106 |
GS120,LS120..WG..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72658-9170105 |
GS120,LS120..WG..SDX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72658-9170104 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
2 | ||
| 72658-9170106 |
GS120,LS120..WG..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 72656A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002035 |
GS120,LS120..WG..(4FC,5F)..SDX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002056 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002014 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
2 | ||
| 72656A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002035 |
GS120,LS120..WG..(4FC,5F)..SDX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002056 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002014 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
2 | ||
| 72723 - PIN, REAR SEAT CUSHION, NO.2 | ||||
| 90240-10119 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-9170205 |
GS120,LS120..WG..(4FC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 72830-9170204 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72830-9170206 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS120,LS120..WG..SDX |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS120,LS120..WG..SDX |
2 | ||
| Common parts | ||||
| 90159-40206 | ||||
| 90168-60006 | ||||
| 90179-10015 | ||||
| 90183-10001 | ||||
| 90468-12070 | ||||
| 91655-41025 | ||||
| 91656-40625 | ||||
| 93315-18014 | ||||
| 93530-54012 | ||||
| 93540-15014 | ||||
| 94543-01000 | ||||

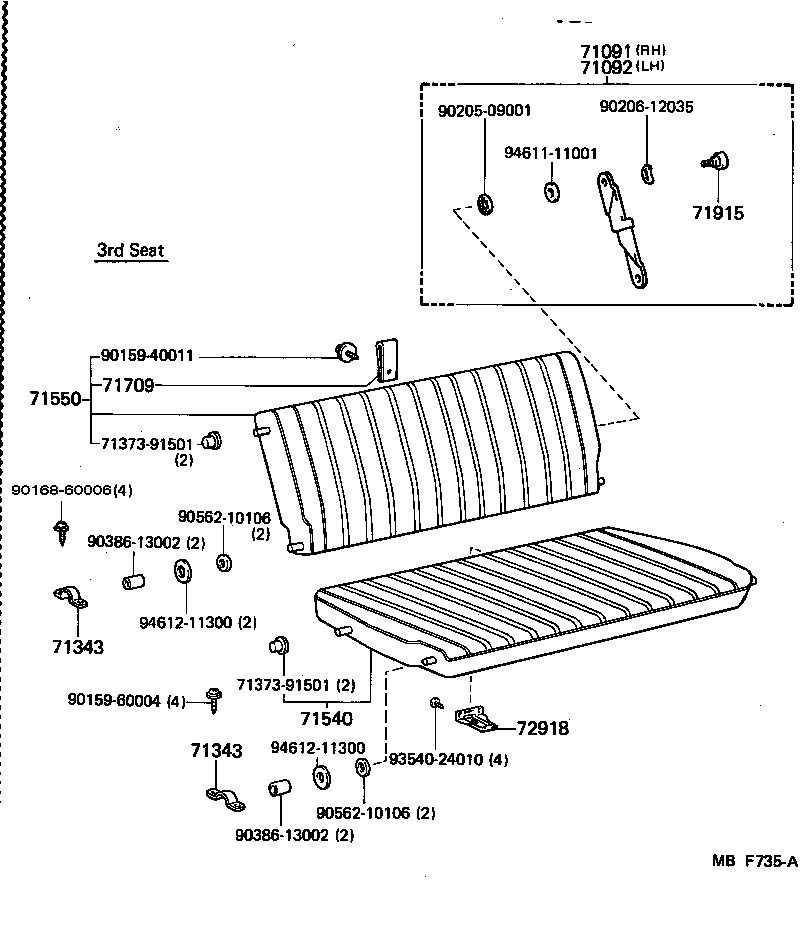

ILLUST NO. 2 OF 2(8308- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71091 - LINK SUB-ASSY, 3RD SEAT, RH | ||||
| 72905-9170302 |
GS120,LS120..WG..(4FC,4HC,5F) DEEP MAROON,RED/MAROON,TRIM4# |
1 | ||
| 72905-9170304 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 71092 - LINK SUB-ASSY, 3RD SEAT, LH | ||||
| 72906-9170304 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72906-9170302 |
GS120,LS120..WG..(4FC,4HC,5F) DEEP MAROON,RED/MAROON,TRIM4# |
1 | ||
| 71343 - BRACKET, 3RD SEAT BACK | ||||
| 72955-91701 |
GS120,LS120..WG |
4 | ||
| 71343 - BRACKET, 3RD SEAT BACK | ||||
| 72955-91701 |
GS120,LS120..WG |
4 | ||
| 71540 - CUSHION ASSY, 3RD SEAT | ||||
| 72910-9170514 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72910-9170505 |
GS120,LS120..WG..(4FC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 72910-9170504 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72910-9170506 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71550 - BACK SUB-ASSY, SIDE SEAT | ||||
| 72940-9170404 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72940-9170405 |
GS120,LS120..WG..(4FC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 72940-9170414 |
GS120,LS120..WG..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72940-9170406 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71709 - STRAP SUB-ASSY, 3RD SEAT BACK | ||||
| 72921-9170105 |
GS120,LS120..WG..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72921-9170104 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72921-9170114 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72921-9170106 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 71915 - BOLT, SEAT LINK CONNECTING | ||||
| 90109-10043 |
GS120,LS120..WG |
4 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-9170115 |
GS120,LS120..WG..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72918-9170114 |
GS120,LS120..WG BLUE,BLUE,TRIM8# |
1 | ||
| 72918-9170106 |
GS120,LS120..WG..(4FC,5F)..SDX BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 71373-91501 | ||||
| 90159-40011 | ||||
| 90159-60004 | ||||
| 90168-60006 | ||||
| 90205-09001 | ||||
| 90206-12035 | ||||
| 90386-13002 | ||||
| 90562-10106 | ||||
| 93540-24010 | ||||
| 94611-11001 | ||||
| 94612-11300 | ||||
