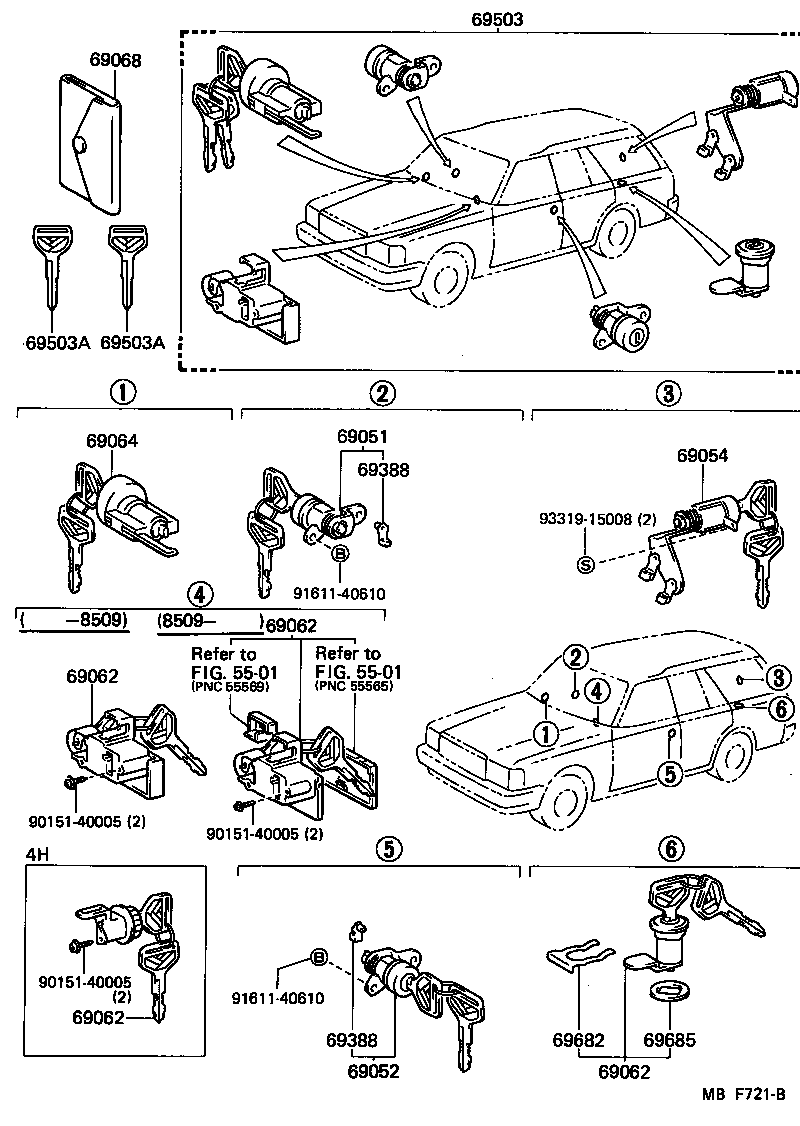

GS120G-SWPFE (1983)
Toyota Crown
(8308- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-30140 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-30130 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-91703 |
GS120,126,LS12#..V,WG |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3006004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69056-3006005 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69056-3008006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 69056-3008004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69009-91704 |
GS120,LS120..WG DECK |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3006004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69056-3006005 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69056-3008006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 69056-3008004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69009-91704 |
GS120,LS120..WG DECK |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3006004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69056-3006005 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69056-3008006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 69056-3008004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69009-91704 |
GS120,LS120..WG DECK |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-3006004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69056-3006005 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69056-3008006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 69056-3008004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 69009-91704 |
GS120,LS120..WG DECK |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-30040 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-20010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-30050 |
GS12#,LS12#,MS12#,YS120 LH |
1 | ||
| 69759-30040 |
GS12#,LS12#,MS12#,YS120 RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-30050 |
GS12#,LS12#,MS12#,YS120 LH |
1 | ||
| 69759-30040 |
GS12#,LS12#,MS12#,YS120 RH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-9171104 |
GS120,LS120..WG..(4FC,4HC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 69005-9171105 |
GS120,LS120..WG..(4FC,4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69005-91712 |
GS120,LS120..WG..(4FC,4HC,5F) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00100 |
GS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL ｻﾌﾞｷｰ,SUB KEY |
1 | ||
| 90999-00099 |
GS12#,LS12#,MS12#,YS120 ﾏｽﾀｰｷｰ,MASTER KEY |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00100 |
GS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL ｻﾌﾞｷｰ,SUB KEY |
1 | ||
| 90999-00099 |
GS12#,LS12#,MS12#,YS120 ﾏｽﾀｰｷｰ,MASTER KEY |
2 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69681-20040 |
GS120,LS120..WG |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-14010 |
GS120,LS120..WG DECK |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91611-40610 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 5501 | ||||
