GS120G-SWPFE (1983)
Toyota Crown
(8308- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69205-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69206-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30170 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GS12#,LS12#,MS12#,YS120 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-30140 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69269-30010 |
GS12#,LS12#,MS12#,YS120 COLD SPEC |
2 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69759-24020 |
GS12#,LS12#,MS12#,YS120 LH |
1 | ||
| 69759-24010 |
GS12#,LS12#,MS12#,YS120 RH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-30040 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-30560 |
LS120..DLX,SDX;GS120,LS120..WG..(EFI,TDE);GS120,MS120,YS120..SED..(DLX,SDX) |
1 | ||
| 69310-30500 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-30560 |
LS120..DLX,SDX;GS120,LS120..WG..(EFI,TDE);GS120,MS120,YS120..SED..(DLX,SDX) |
1 | ||
| 69310-30500 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-30480 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 69320-30550 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-30480 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 69320-30550 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-30080 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-30090 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-3003005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 69741-3003006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
2 | ||
| 69741-3003014 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3003004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-30020 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90152-40002 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80014 | ||||
| 90168-60014 | ||||
| 90189-06043 | ||||
| 91521-40610 | ||||
| 91611-40610 | ||||
| 93530-54010 | ||||

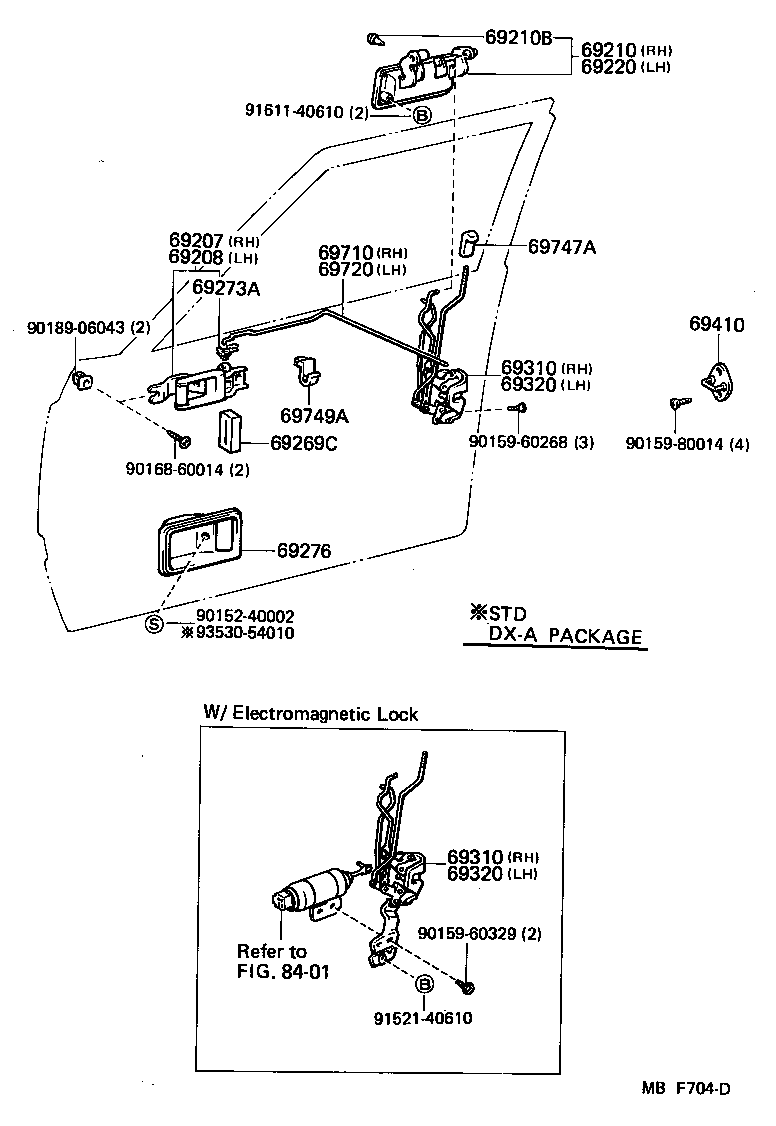

| Linked diagrams | ||||
| 8401 | ||||
