GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

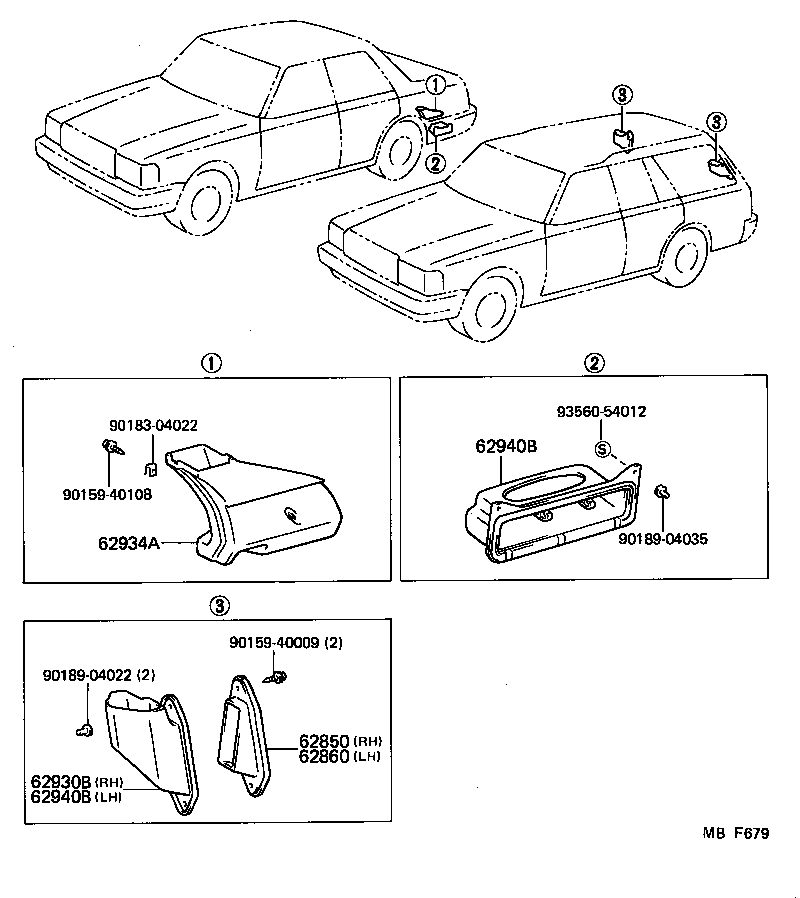

diagram 62850 62860 62930B 62934A 62940B 62940B 9015940009 9015940108 9018304022 9018904022 9018904035 9356054012
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-91701

GS120,126,LS12#..V,WG

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-91701

GS120,126,LS12#..V,WG

 1
62930B - DUCT ASSY, QUARTER VENT, RH
62930-91701

GS120,126,LS12#..V,WG

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-91701

GS120,126,LS12#..V,WG

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-91701

GS120,126,LS12#..V,WG

 1
Common parts
90159-40009
90159-40108
90183-04022
90189-04022
90189-04035
93560-54012
