Toyota Crown GS120 POWER STEERING TUBE

GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987

Engine 1GEU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

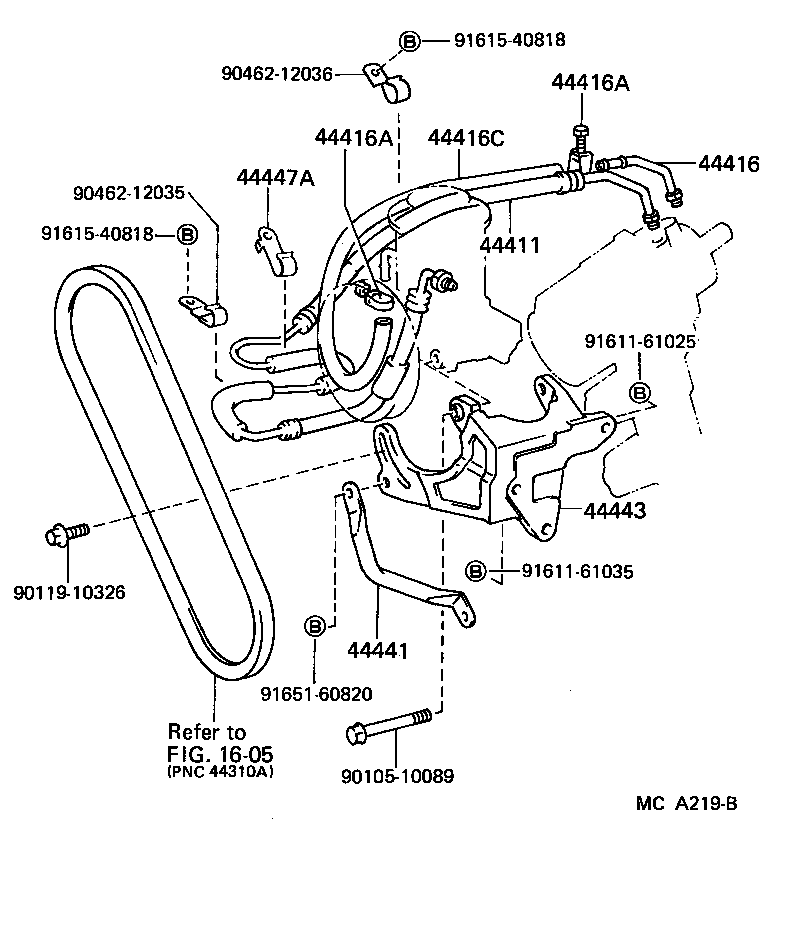

Click highlighted areas on diagram

Part #	Description	Period	Qty
44411 - HOSE, PRESSURE FEED
44411-30240	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44411-30360	GS120,126..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30060	LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL	08/1983 - 08/1987	1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001	LS120;GS12#,LS126..DLX,ROY,SAL,SDX,SPE,SSL	08/1983 - 10/1986	2
44416A - CLAMP(FOR RETURN HOSE)
90460-01001	LS120;GS12#,LS126..DLX,ROY,SAL,SDX,SPE,SSL	08/1983 - 10/1986	2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18127	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44412-14170	GS120,126,MS120..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44441 - BRACKET, PUMP, FRONT
44441-22010	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44441-30050	GS120,126..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44443 - BRACKET, PUMP
44443-22030	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44443-30091	GS120,126..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-30090	GS12#..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,TWC)	08/1983 - 08/1987	1
Common parts
90105-10089
90119-10326
90462-12035
90462-12036
91611-61025
91611-61035
91615-40818
91651-60820
Linked diagrams
1605

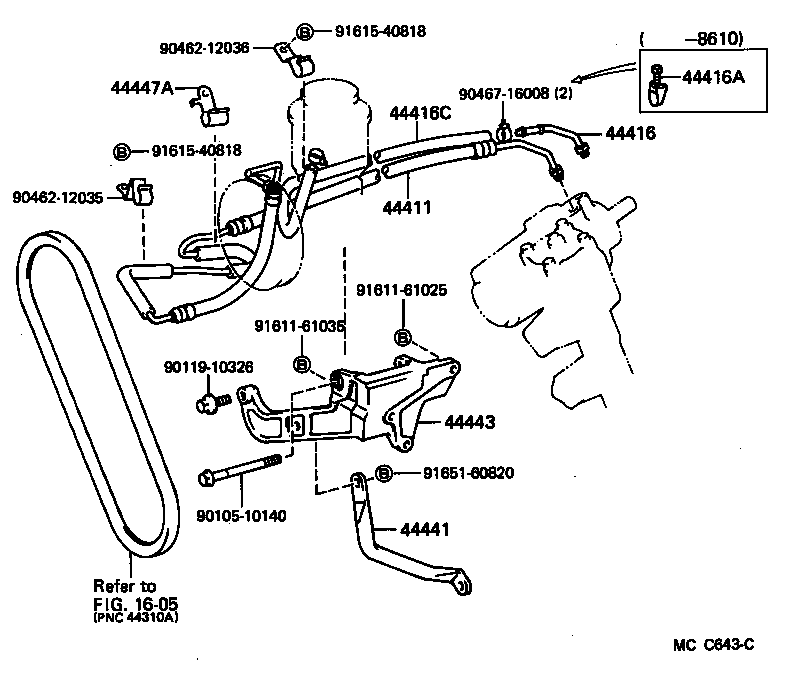

Click highlighted areas on diagram

Part #	Description	Period	Qty
44411 - HOSE, PRESSURE FEED
44411-30240	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44411-30360	GS120,126..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30060	LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL	08/1983 - 08/1987	1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001	LS120;GS12#,LS126..DLX,ROY,SAL,SDX,SPE,SSL	08/1983 - 10/1986	2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18127	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44412-14170	GS120,126,MS120..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44441 - BRACKET, PUMP, FRONT
44441-22010	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44441-30050	GS120,126..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44443 - BRACKET, PUMP
44443-22030	GS120,126..DLX,SAL,SDX,SPE	08/1983 - 09/1985	1
44443-30091	GS120,126..DLX,SAL,SDX,SPE,SSL	09/1985 - 08/1987	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-30090	GS12#..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,TWC)	08/1983 - 08/1987	1
Common parts
90105-10140
90119-10326
90462-12035
90462-12036
90467-16008
91611-61025
91611-61035
91615-40818
91651-60820
Linked diagrams
1605
