GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS120..ATM

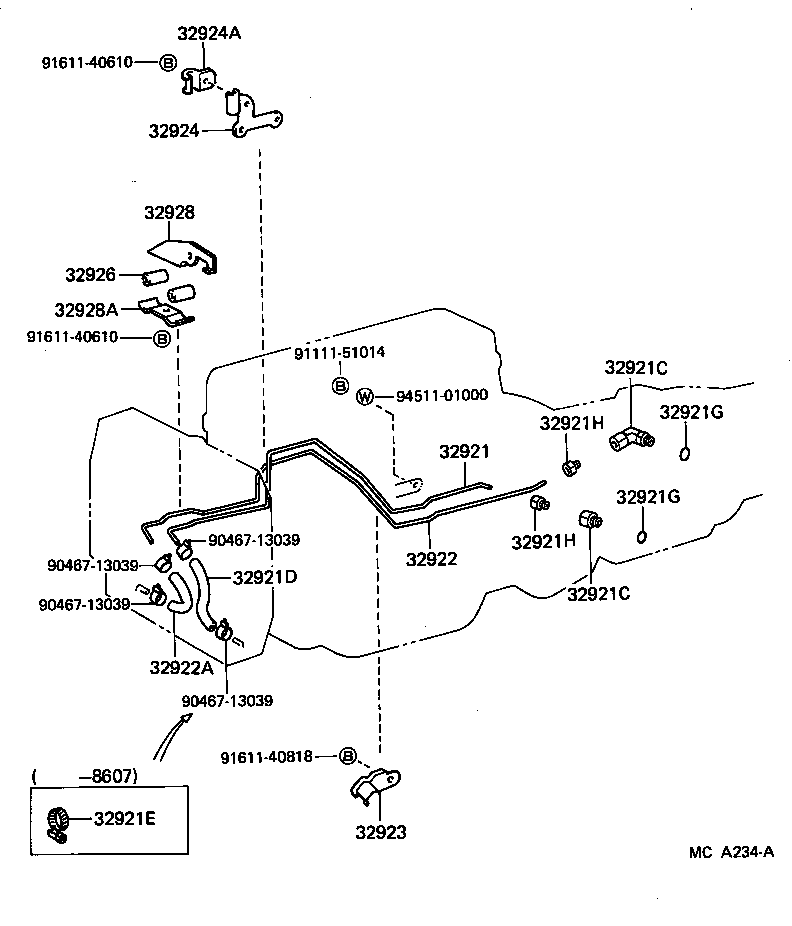

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921E 32921G 32921G 32921H 32921H 32922 32922A 32923 32924 32924A 32926 32928 32928A 9046713039 9046713039 9046713039 9046713039 9111151014 9161140610 9161140610 9161140818 9451101000
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30350

GS120,121..ATM..(EFI,TWC)

 1
32921-30280

GS120,121..ATM..(EFI,TWC)

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

INLET

 1
90407-14003

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

INLET

 1
90407-14003

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
32942-22060

GS120,121,LS12#,MS125..ATM..(DSL,EFI,TDE,TWC)

 1
32942-22010

GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30280

GS120,121..ATM..(EFI,TWC)

 1
32922-30350

GS120,121..ATM..(EFI,TWC)

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-30050

GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)

 1
32941-30050

GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-30080

GS120,121,MS120,123..ATM..(EFI,LPG,TWC)

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30100

GS120,121..ATM

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-30090

GS120,121..ATM..(EFI,TWC)

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)

長さ=35,ε†…εΎ„=8

 8
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-24010

GS120..ATM

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12085

GS120,121..ATM..(EFI,TWC)

 1
Common parts
90467-13039
91111-51014
91611-40610
91611-40818
94511-01000
