GS120G-SWPFE (1983)
Toyota Crown
(8308- )1GEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-70040 |
1GEU..GS120..DLX,SAL,SDX,SPE W/PS |
1 | ||
| 90445-10021 |
1GEU..GS120..DLX,SAL,SDX,SPE,SSL W/PS |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-70040 |
1GEU..GS120..DLX,SAL,SDX,SPE W/PS |
1 | ||
| 90445-10021 |
1GEU..GS120..DLX,SAL,SDX,SPE,SSL W/PS |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-70040 |
1GEU..GS120..DLX,SAL,SDX,SPE W/PS |
1 | ||
| 17342-70090 |
1GEU..GS120..DLX,SAL,SDX,SPE,SSL W/PS |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-70040 |
1GEU..GS120..DLX,SAL,SDX,SPE W/PS |
1 | ||
| 17342-70090 |
1GEU..GS120..DLX,SAL,SDX,SPE,SSL W/PS |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#,1GEJ..GS12#..DLX,ROY,SAL,SDX,SPE,SSL W/PS |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
1GE#..GS120,126..DLX,SAL,SDX,SPE,SSL W/PS |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
1GE#..GS120,126..DLX,SAL,SDX,SPE,SSL W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12027 |
1GEU..GS120 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
1GE#..GS120,126 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
1GEU..GS120 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
1GEU..GS120 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
1GE#..GS120,126 |
1 | ||
| Common parts | ||||
| 90464-00251 | ||||
| 90464-00343 | ||||
| 90464-00414 | ||||
| 90929-01023 | ||||
| 90929-01045 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||
| 95411-10130 | ||||

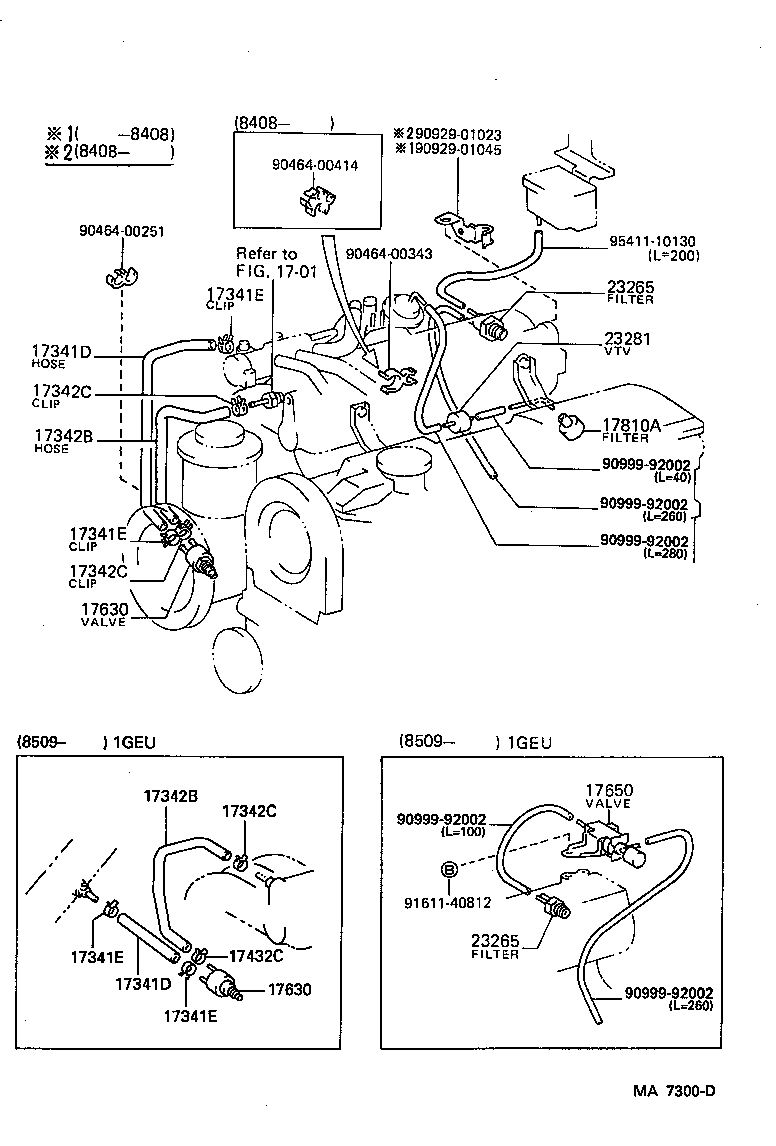

| Linked diagrams | ||||
| 1701 | ||||
(8308- )1GEU,1GG#,1GEJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
