GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1GEU

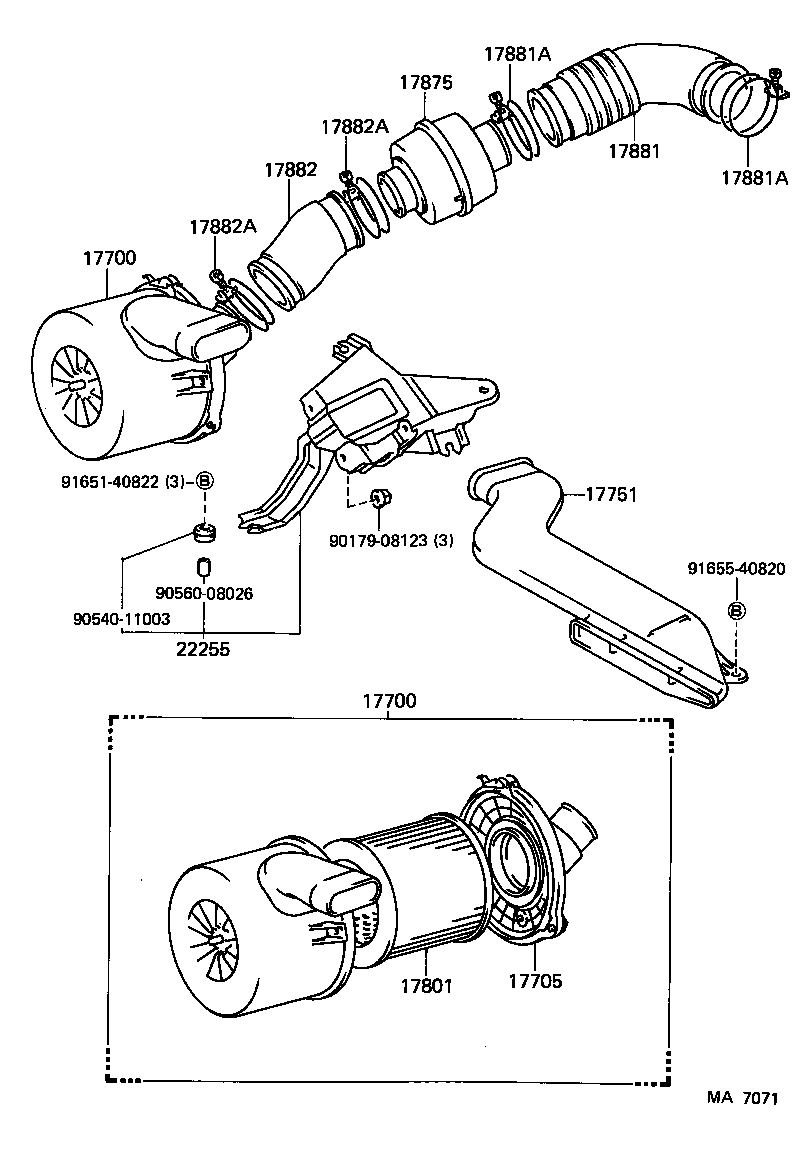

Click highlighted areas on diagram

diagram 17700 17700 17705 17751 17801 17875 17881 17881A 17881A 17882 17882A 17882A 22255 9017908123 9054011003 9056008026 9165140822 9165540820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-70020

1GEU..GS120

 1
17700 - CLEANER ASSY, AIR
17700-70020

1GEU..GS120

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-70020

1GEU..GS120

 1
17751 - INLET, AIR CLEANER, NO.1
53299-30130

1GEU..GS120

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

1GEU,1GG#,1GEJ..GS12#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70040

1GEU..GS120

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70060

1GEU..GS120

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GEU..GS120

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GEU..GS120

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-70050

1GEU..GS120

 1
17882-70100

1GEU..GS120

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1GEU..GS120

 4
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1GEU..GS120

 4
22255 - BRACKET, AIR FLOW METER
22209-41050

1GEU..GS120

 1
Common parts
90179-08123
90540-11003
90560-08026
91651-40822
91655-40820
