GS120G-SWPFE (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )1GE#

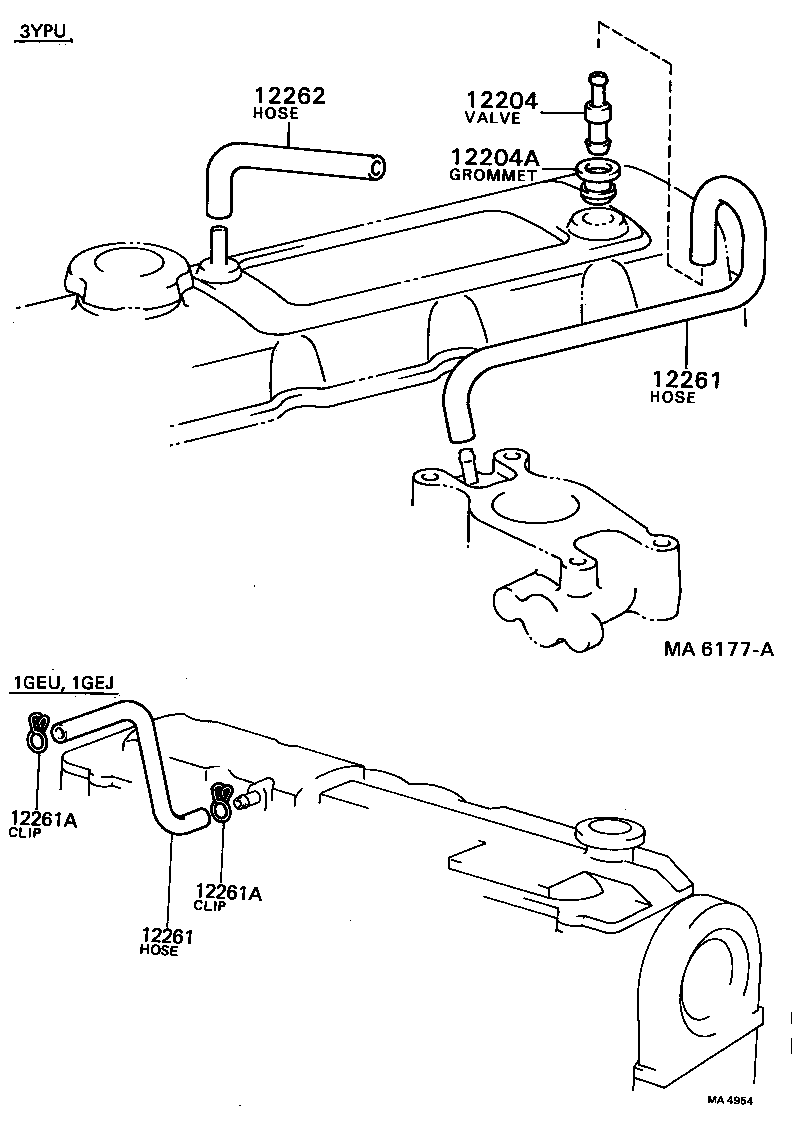

Click highlighted areas on diagram
MA6177A,MA4954
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-70010 |
1GE#..GS120,126 |
1 | ||
| 12261-70010 |
1GE#..GS120,126 |
1 | ||
| 12261-70020 |
1GE#..GS120,126 |
1 | ||
| 12261-70020 |
1GE#..GS120,126 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-70010 |
1GE#..GS120,126 |
1 | ||
| 12261-70010 |
1GE#..GS120,126 |
1 | ||
| 12261-70020 |
1GE#..GS120,126 |
1 | ||
| 12261-70020 |
1GE#..GS120,126 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14001 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 90467-14001 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 90467-14082 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 90467-14082 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14001 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 90467-14001 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 90467-14082 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
| 90467-14082 |
1GEU,1GGZEU,1GEJ..GS12# |
2 | ||
