GS120G-SWPFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1GE#

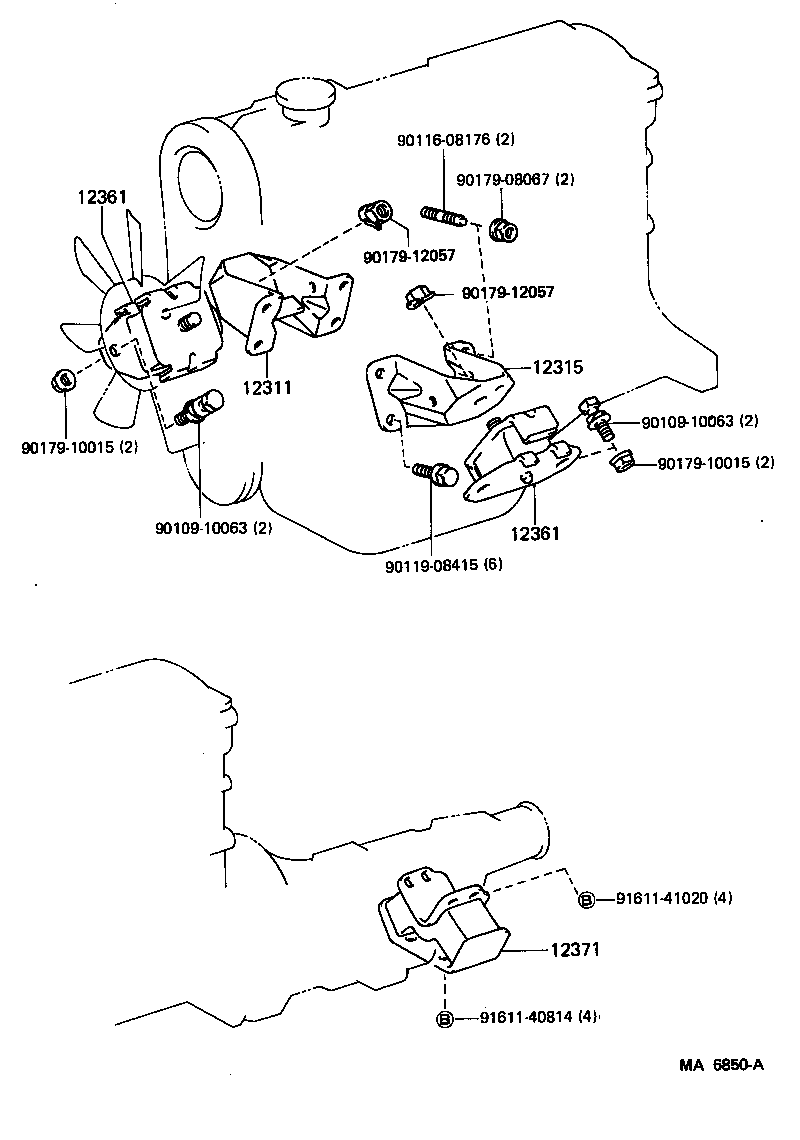

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9010910063 9010910063 9011608176 9011908415 9017908067 9017910015 9017910015 9017912057 9017912057 9161140814 9161141020
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70030

1G#..GS12#

 1
12311-70060

1GEU,1GG#,1GEJ..GS12#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70040

1GEU,1GG#,1GEJ..GS12#

 1
12315-70030

1G#..GS12#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70011

1GE#..GS120,126

 2
12361-70010

1G#..GS12#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70011

1GE#..GS120,126

 2
12361-70010

1G#..GS12#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

1GEU,1GG#,1GEJ..GS12#

 1
Common parts
90109-10063
90116-08176
90119-08415
90179-08067
90179-10015
90179-12057
91611-40814
91611-41020
