GS120G-SWMFE (1983)
Toyota Crown

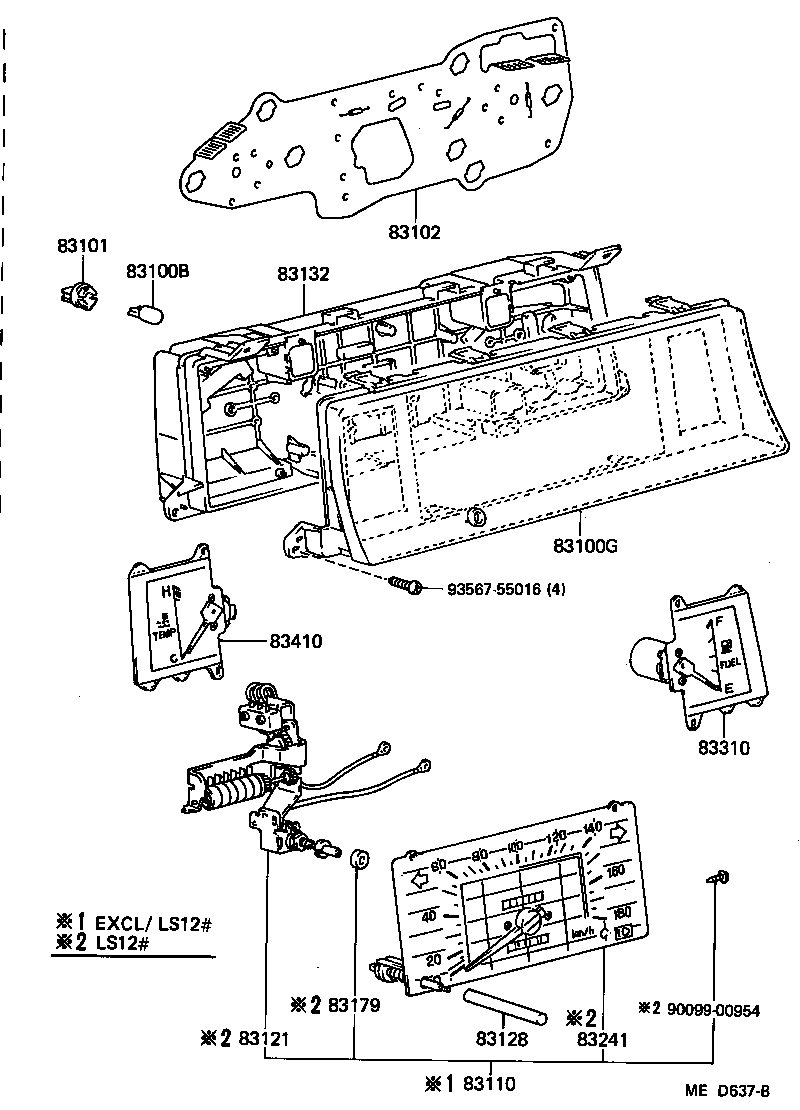

ILLUST NO. 1 OF 3(8308- )GS120..HT..4HC ; (8308- )LS120..SED..4FC,5F..DLX,SAL,SDX ; (8308-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A010 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83138-3A390 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30430 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A080 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F) |
1 | ||
| 83110-3A081 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83110-3A082 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32010 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30310 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30050 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83243-30310 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30030 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83244-30410 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 93567-55016 | ||||

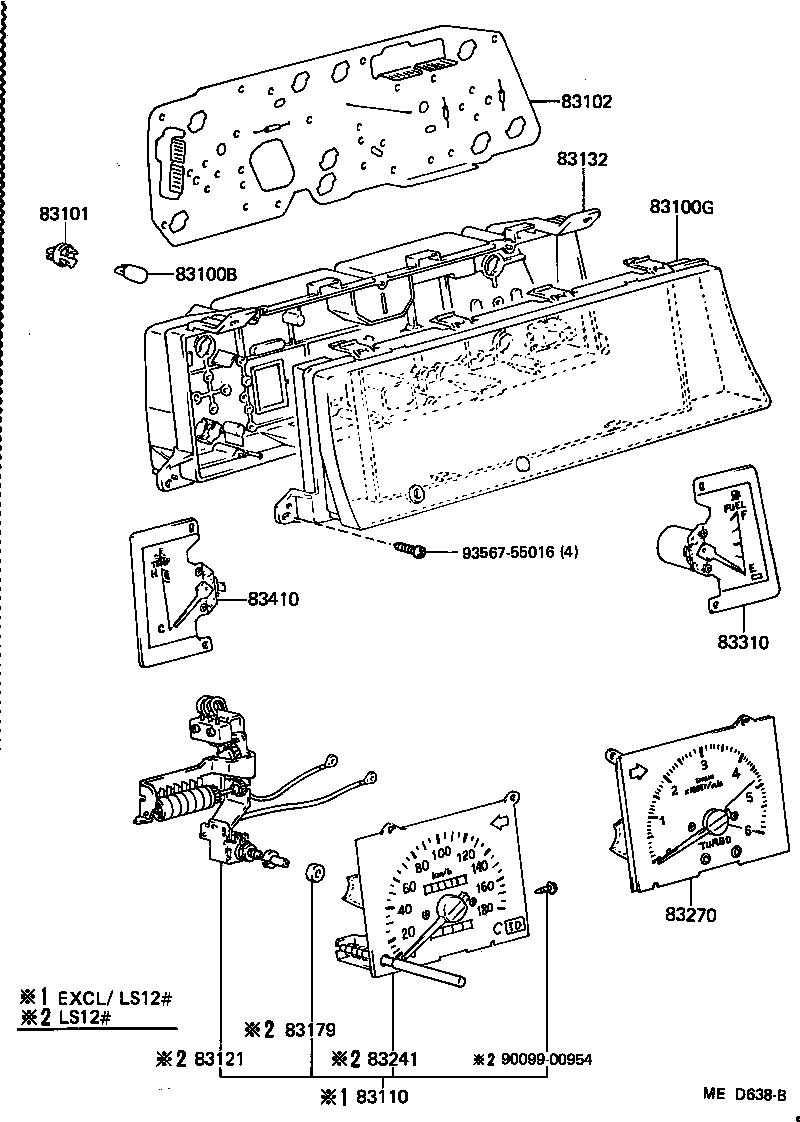

ILLUST NO. 1 OF 3(8308- )LS120..WG ; (8308- )GS121..HT..4HC; (8308- )MS123,125..4HC ; (830
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 83109-24030 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
5 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 90981-11018 |
GS12#,LS12#,MS12#,YS120 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
12 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 99132-12034 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A010 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83138-3A010 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83138-3A390 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83138-3A390 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-28010 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) 12V 3.4W,GREEN |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14030 |
MS123,125..4HC;MS123,125..SED..4FC;GS12#,LS12#,MS120,YS120 12V 3.4W,BLACK |
5 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83101-14040 |
GS12#,LS12#,MS12#,YS120 12V 1.4/1.7W,BLACK |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30430 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83247-30430 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A080 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F) |
1 | ||
| 83110-3A080 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F) |
1 | ||
| 83110-3A081 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83110-3A081 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83110-3A082 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83110-3A082 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30310 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83132-30310 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30050 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83243-30050 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83243-30310 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83243-30310 |
GS120..HT..4HC;GS120..(SED,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30030 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83244-30030 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83244-30410 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| 83244-30410 |
GS120..HT..4HC;GS120,126..(SED,V,WG)..(4FC,4HC,5F)..(DLX,SAL,SDX) |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 93567-55016 | ||||

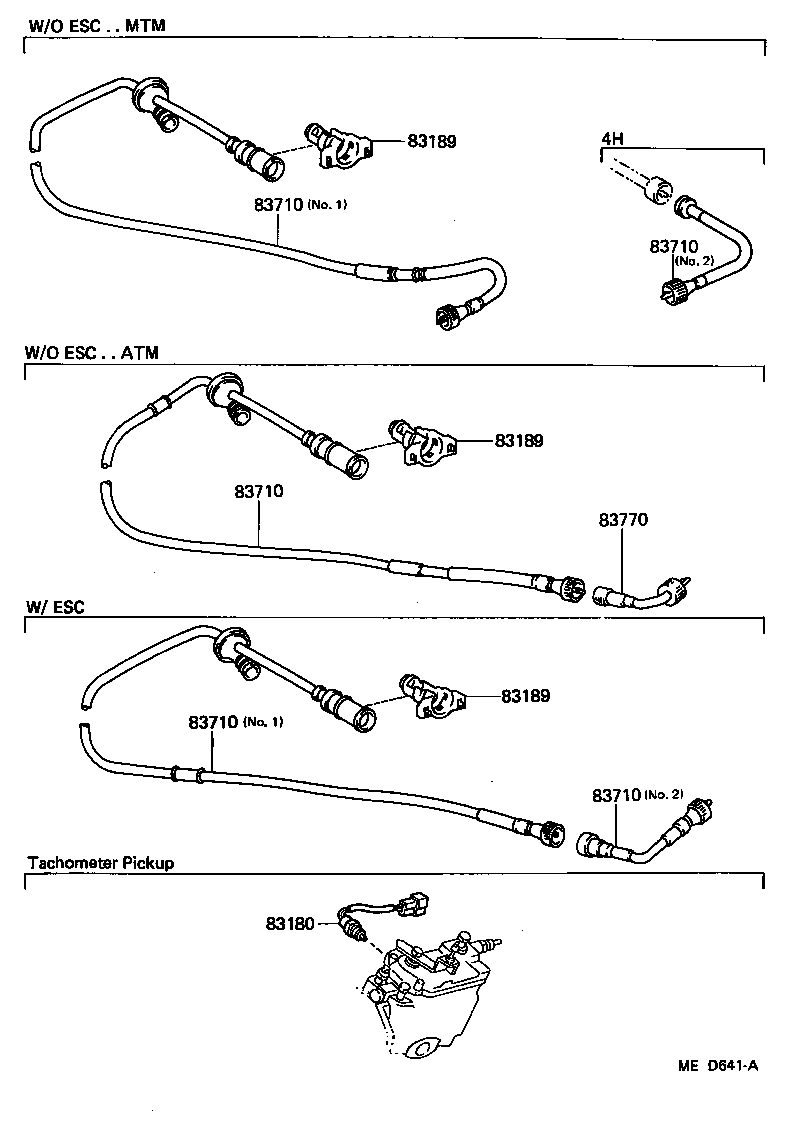

ILLUST NO. 2 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30560 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83710-30561 |
GS12#,LS12#..5F..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||

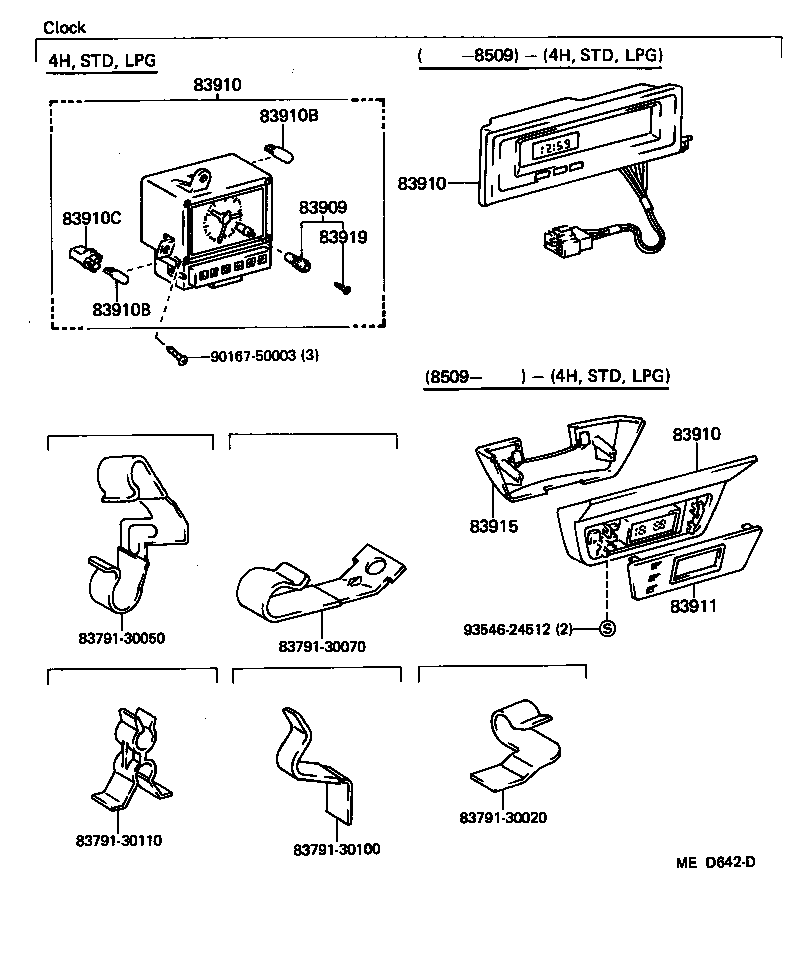

ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-3037002 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3037005 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3041006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 83910-3041004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037002 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3037005 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3041006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 83910-3041004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037002 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3037005 |
GS12#,LS12#,MS12#..(SED,V,WG)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3041006 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BROWN,BROWN,TRIM4# |
1 | ||
| 83910-3041004 |
GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX) BLUE,BLUE,TRIM8# |
1 | ||
| 83911 - COVER, CLOCK | ||||
| 83911-30010 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-3002006 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BROWN,BROWN,TRIM4# |
1 | ||
| 83915-3002004 |
GS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 83791-30020 | ||||
| 83791-30050 | ||||
| 83791-30070 | ||||
| 83791-30100 | ||||
| 83791-30110 | ||||
| 90167-50003 | ||||
| 93546-24512 | ||||
