GS120G-SWMFE (1983)
Toyota Crown

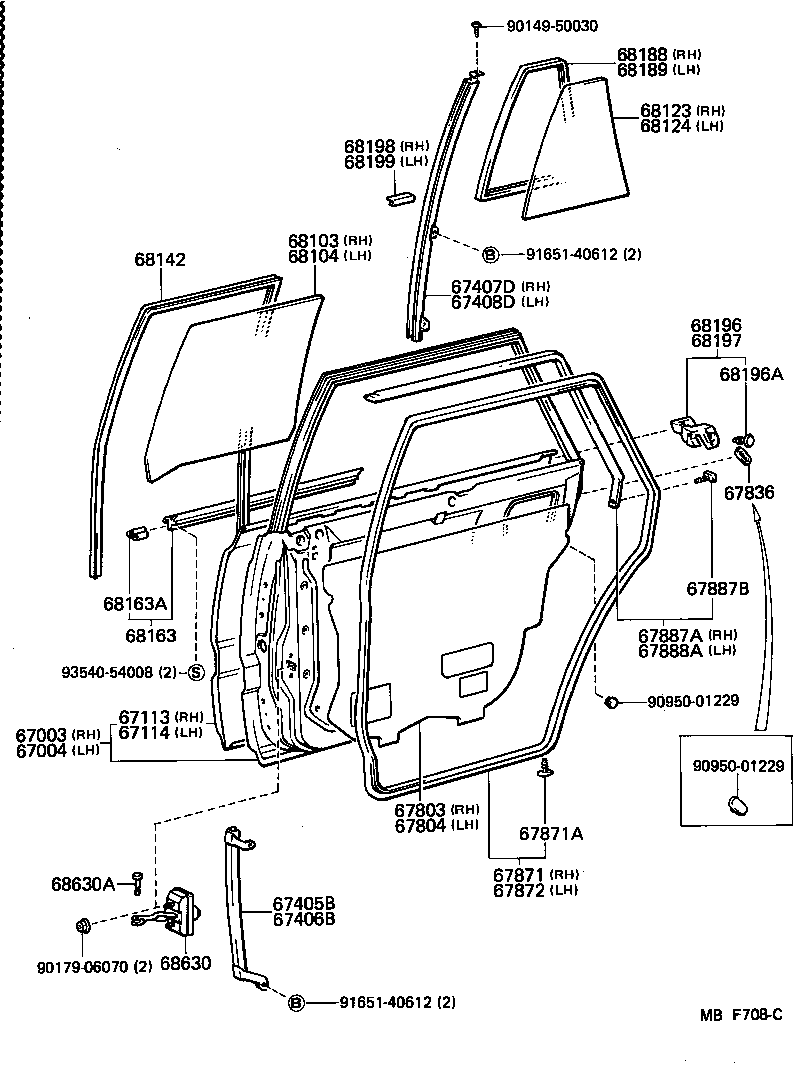

ILLUST NO. 1 OF 2(8308- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-91702 |
GS120,126,LS12#..V,WG |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-91704 |
GS120,126,LS12#..V,WG |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30100 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67113-30150 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30110 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67114-30160 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30070 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30080 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-91701 |
GS120,126,LS12#..V,WG |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-91701 |
GS120,126,LS12#..V,WG |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30200 |
GS120,126,LS12#,MS120,YS120..SED,V,WG COLD SPEC |
1 | ||
| 67841-30210 |
GS12#,LS12#,MS12#,YS120..SED,V,WG COLD SPEC |
1 | ||
| 67841-30160 |
GS120,126,LS12#,MS120,YS120..SED,V,WG |
1 | ||
| 67841-30180 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30070 |
GS120,126,LS12#,MS120,YS120..SED,V,WG COLD SPEC |
1 | ||
| 67841-30180 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 67841-30160 |
GS120,126,LS12#,MS120,YS120..SED,V,WG |
1 | ||
| 67842-30080 |
GS12#,LS12#,MS12#,YS120..SED,V,WG COLD SPEC |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
LS120..DLX,SDX;GS120..SED..(DLX,SDX);GS120,LS120..WG..(EFI,TDE) COLD SPEC |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-91704 |
GS120,126,LS12#..V,WG |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
40 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-91704 |
GS120,126,LS12#..V,WG |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
1 | ||
| 67887-91705 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67869-30020 |
GS12#,LS12#,MS12#,YS120..SED,V,WG DOUBLE WEATHERSTRIP |
2 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-91705 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
1 | ||
| 67888-91701 |
GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) DOUBLE WEATHERSTRIP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-91704 |
GS120,126,LS12#..(V,WG)..(DLX,SAL,SDX) *TT,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-91704 |
GS120,126,LS12#..(V,WG)..(DLX,SAL,SDX) *TT,T=4.0 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-91706 |
GS120,126,LS12#..(V,WG)..(DLX,SAL,SDX) *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-91706 |
GS120,126,LS12#..(V,WG)..(DLX,SAL,SDX) *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-30090 |
GS12#,LS12#,MS12#,YS120..SED,V,WG PLANT.M21-M22 |
2 | ||
| 68142-30070 |
GS120,121,LS120,MS12#,YS120..SED,WG PLANT.A21-A26 |
2 | ||
| 68142-30110 |
GS12#,LS12#,MS12#,YS120..SED,V,WG PLANT.M21-M22 |
2 | ||
| 68142-30100 |
GS120,121,LS120,MS12#,YS120..SED,WG PLANT.A21-A26 |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-91702 |
GS120,126,LS12#..V,WG |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-91702 |
GS120,126,LS12#..V,WG |
1 | ||
| 68196 - SEAL, REAR DOOR BELT, RH | ||||
| 68196-30030 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 68196A - CLIP(FOR REAR DOOR BELT SEAL) | ||||
| 67869-12010 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
2 | ||
| 68197 - SEAL, REAR DOOR BELT, LH | ||||
| 68197-30030 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30040 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 68617-90K00 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90149-50030 | ||||
| 90179-06070 | ||||
| 90950-01229 | ||||
| 91651-40612 | ||||
| 93540-54008 | ||||

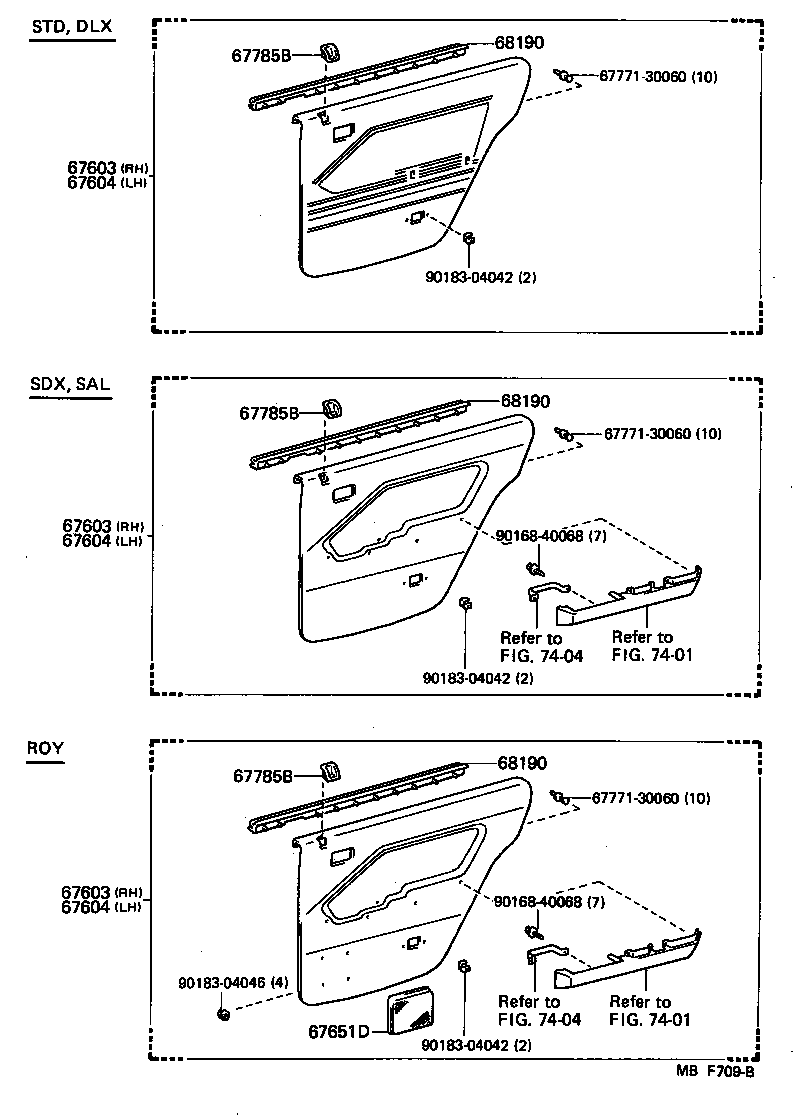

ILLUST NO. 2 OF 2(8308- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3079005 |
GS120,LS120..(4FC,4HC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3079004 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3079106 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3079104 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3079005 |
GS120,LS120..(4FC,4HC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3079004 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3079106 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3079104 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3079005 |
GS120,LS120..(4FC,4HC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3079004 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3079106 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
1 | ||
| 67630-3079104 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3079004 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3079005 |
GS120,LS120..(4FC,4HC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3079104 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3079106 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3079004 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3079005 |
GS120,LS120..(4FC,4HC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3079104 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3079106 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3079004 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3079005 |
GS120,LS120..(4FC,4HC,5F)..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3079104 |
GS120,LS120..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3079106 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3006006 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 67785-3006004 |
GS120,121,LS120,MS125..ROY,SAL,SDX,SPE,SSL BLUE,BLUE,TRIM8# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3006006 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 67785-3006004 |
GS120,121,LS120,MS125..ROY,SAL,SDX,SPE,SSL BLUE,BLUE,TRIM8# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3006006 |
GS120,LS120..(4FC,4HC,5F)..SDX BROWN,BROWN,TRIM4# |
2 | ||
| 67785-3006004 |
GS120,121,LS120,MS125..ROY,SAL,SDX,SPE,SSL BLUE,BLUE,TRIM8# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30140 |
GS12#,LS12#,MS12#,YS120..SED,V,WG |
2 | ||
| Common parts | ||||
| 67771-30060 | ||||
| 90168-40068 | ||||
| 90183-04042 | ||||
| 90183-04046 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7404 | ||||
