GS120G-SWMFE (1983)
Toyota Crown
ILLUST NO. 2 OF 2(8308- )1GEU,1GG#,1GEJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-43090 |
1GEU,1GGEU..GS120,121..MTM W/O CAP |
1 | ||
| 16400-43170 |
1GEU,1GGEU..GS120,121..MTM W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-43090 |
1GEU,1GGEU..GS120,121..MTM W/O CAP |
1 | ||
| 16400-43170 |
1GEU,1GGEU..GS120,121..MTM W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-54310 |
1GEU,1GGEU..GS120,121 |
1 | ||
| 16403-43170 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-63030 |
1GEU,1GGEU..GS120,121 |
2 | ||
| 16463-15320 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||

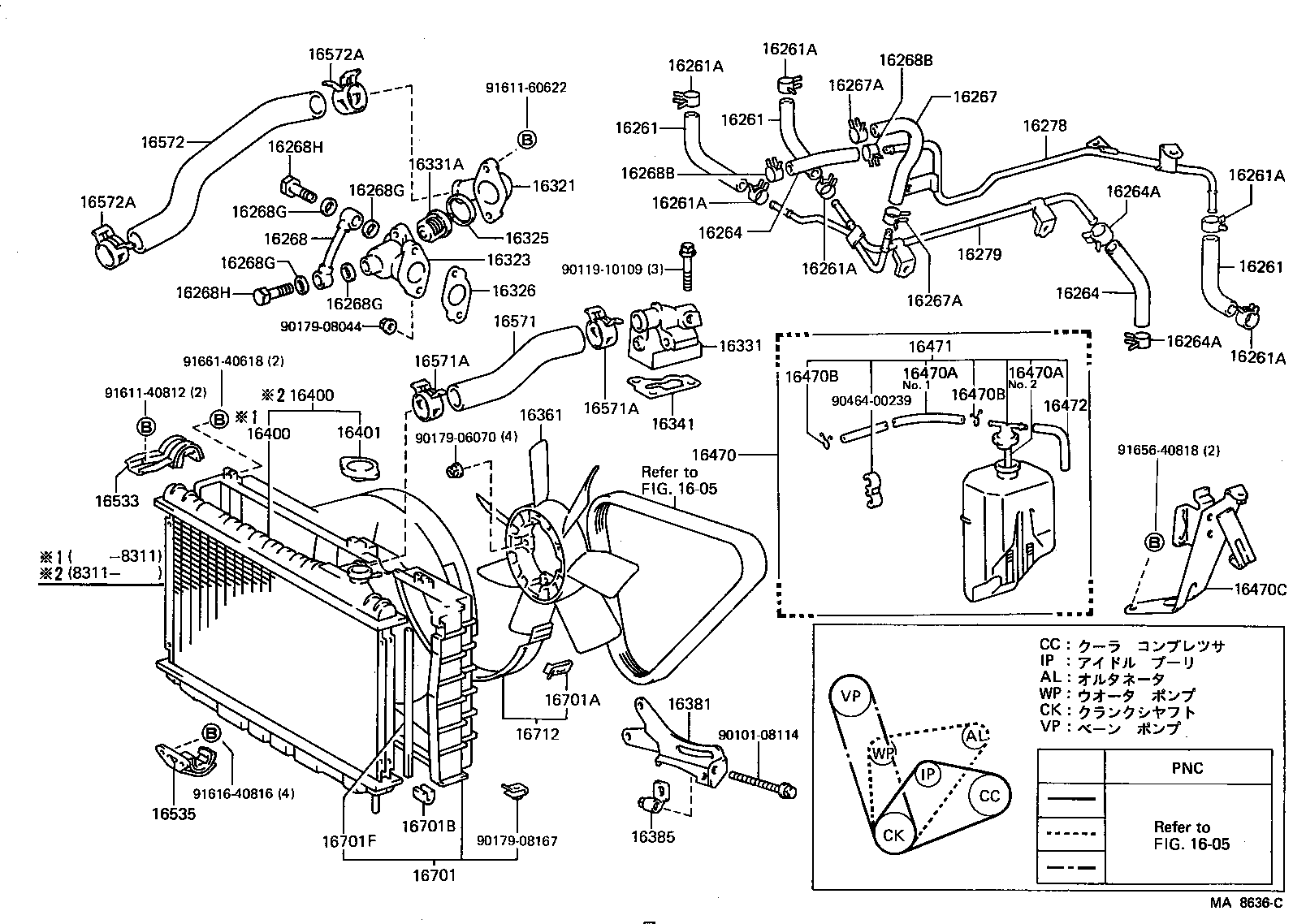

ILLUST NO. 1 OF 2(8308- )1GEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70020 |
1GE#..GS120,126 |
3 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70020 |
1GE#..GS120,126 |
3 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70020 |
1GE#..GS120,126 |
3 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GE#..GS120,126 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GE#..GS120,126 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GE#..GS120,126 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GE#..GS120,126 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GE#..GS120,126 |
4 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GE#..GS120,126 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-10100 |
1GE#..GS120,126 長さ=100 |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-10100 |
1GE#..GS120,126 長さ=100 |
3 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GE#..GS120,126 |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GE#..GS120,126 |
6 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-70020 |
1GEU..GS120 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GEU..GS120 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
1GEU..GS120 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-70010 |
1GE#..GS120,126 |
1 | ||
| 16268-70011 |
1GE#..GS120,126 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
1GEU..GS120 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
1GEU..GS120 |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GE#..GS120,126 |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GE#..GS120,126 |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GE#..GS120,126 |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GE#..GS120,126 |
4 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18006 |
1GE#..GS120,126 |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18006 |
1GE#..GS120,126 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70030 |
1GEU..GS120 |
1 | ||
| 16278-70040 |
1GEU..GS120 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-70020 |
1GEU..GS120 |
1 | ||
| 16279-70010 |
1GEU..GS120 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-70011 |
1GEU,1GGZEU,1GEJ..GS12# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-70011 |
1GE#..GS120,126 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1GEU,1GG#,1GEJ..GS12# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-70011 |
1GEU,1GGEU,1GEJ..GS12# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-70030 |
1GEU..GS120 |
1 | ||
| 16331-70050 |
1GEU..GS120 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03060 |
1GE#..GS120,126 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-70010 |
1GE#..GS120,126 |
1 | ||
| 16361 - FAN | ||||
| 16361-70010 |
1GE#..GS120,126 |
1 | ||
| 16361-70020 |
1GE#..GS120,126 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-70020 |
1GE#..GS120,126 |
1 | ||
| 16381-70021 |
1GE#..GS120,126 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70011 |
1GE#..GS120,126 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-43090 |
1GEU,1GGEU..GS120,121..MTM W/O CAP |
1 | ||
| 16400-43170 |
1GEU,1GGEU..GS120,121..MTM W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-43090 |
1GEU,1GGEU..GS120,121..MTM W/O CAP |
1 | ||
| 16400-43170 |
1GEU,1GGEU..GS120,121..MTM W/CAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1GEU,1GG#..GS120,121 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-41150 |
1GEU,1GGEU,1GEJ..GS12# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12138 |
1G#..GS12# *H,L=350 |
1 | ||
| 90445-12078 |
1GEU,1GGEU,1GEJ..GS12# *H,L=350,NO.1 |
1 | ||
| 90445-12078 |
1GEU,1GGEU,1GEJ..GS12# *H,L=230,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12138 |
1G#..GS12# *H,L=350 |
1 | ||
| 90445-12078 |
1GEU,1GGEU,1GEJ..GS12# *H,L=350,NO.1 |
1 | ||
| 90445-12078 |
1GEU,1GGEU,1GEJ..GS12# *H,L=230,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-41070 |
1GEU,1GGEU,1GEJ..GS12# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41080 |
1GEU,1GGEU,1GEJ..GS12# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-41150 |
1GEU,1GGEU,1GEJ..GS12# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16506-41010 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70060 |
1GE#..GS120,126 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1GEU,1GG#,1GEJ..GS12# OUTLET SIDE |
1 | ||
| 90467-37001 |
1GEU,1GG#,1GEJ..GS12# RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1GEU,1GG#,1GEJ..GS12# OUTLET SIDE |
1 | ||
| 90467-37001 |
1GEU,1GG#,1GEJ..GS12# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70060 |
1GE#..GS120,126 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1GEU,1GG#,1GEJ..GS12# RADIATOR SIDE |
1 | ||
| 90467-37002 |
1GEU,1GGEU,1GEJ..GS12# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1GEU,1GG#,1GEJ..GS12# RADIATOR SIDE |
1 | ||
| 90467-37002 |
1GEU,1GGEU,1GEJ..GS12# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-70010 |
1G#..GS12# |
1 | ||
| 16701-70030 |
1GEU,1GGZEU,1GEJ..GS12# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-41010 |
1GEU,1GG#,1GEJ..GS12# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-70010 |
1GEU,1GG#,1GEJ..GS12# |
1 | ||
| Common parts | ||||
| 90101-08114 | ||||
| 90119-10109 | ||||
| 90179-06070 | ||||
| 90179-08044 | ||||
| 90179-08167 | ||||
| 90464-00239 | ||||
| 91611-40812 | ||||
| 91611-60622 | ||||
| 91616-40816 | ||||
| 91656-40818 | ||||
| 91661-40618 | ||||
| Linked diagrams | ||||
| 1605 | ||||
