GS120-STPZE (1983)
Toyota Crown

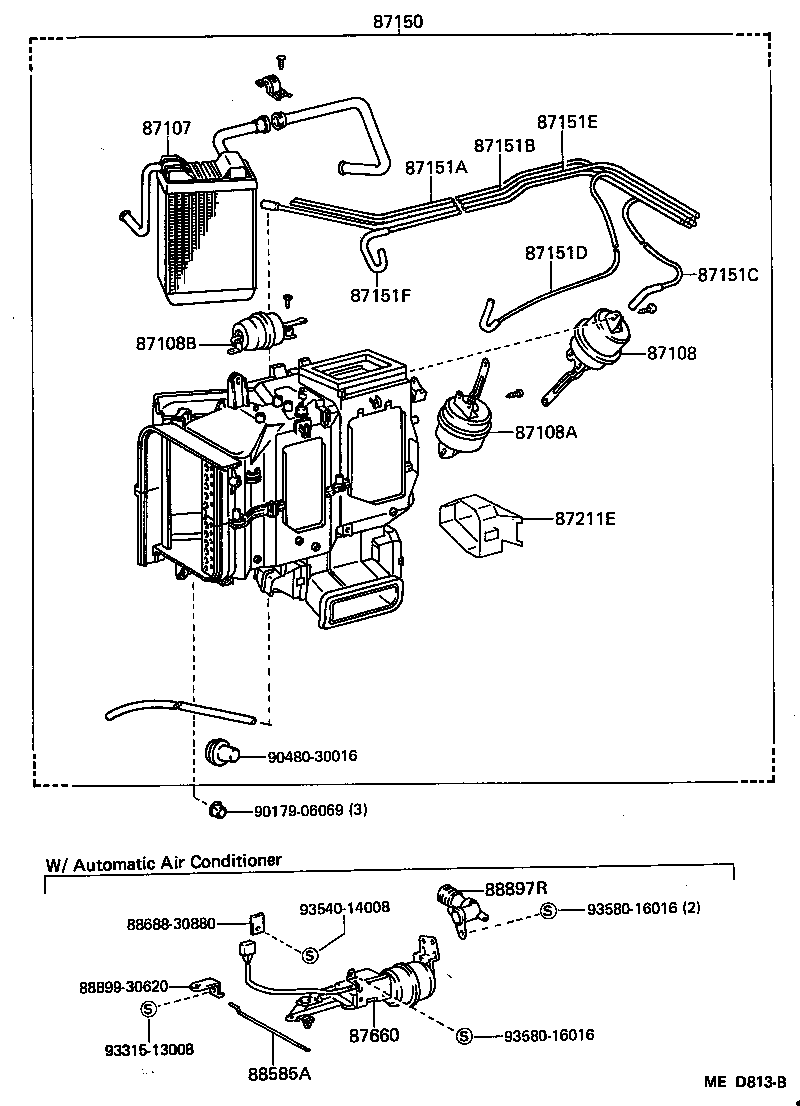

ILLUST NO. 2 OF 2(8308- )GS120,126,LS12#,MS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30360 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30390 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30380 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL | ||||
| 87108-30400 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30390 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04005 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 90447-04044 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90447-04010 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90447-04012 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90447-04016 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90447-04020 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 90447-04045 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87151F - HOSE, VACUUM, F | ||||
| 90447-04024 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-30140 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-30340 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88585A - SHAFT, HEATER AIR DAMPER | ||||
| 88899-30610 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-30640 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 88688-30880 | ||||
| 88899-30620 | ||||
| 90179-06069 | ||||
| 90480-30016 | ||||
| 93315-13008 | ||||
| 93540-14008 | ||||
| 93580-16016 | ||||
ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-30361 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87104-30360 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87134-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30350 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30300 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| Common parts | ||||
| 88899-30650 | ||||
| 90099-01523 | ||||
| 90119-08253 | ||||
| 90119-08424 | ||||
| 90179-08123 | ||||
