GS120-STPZE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

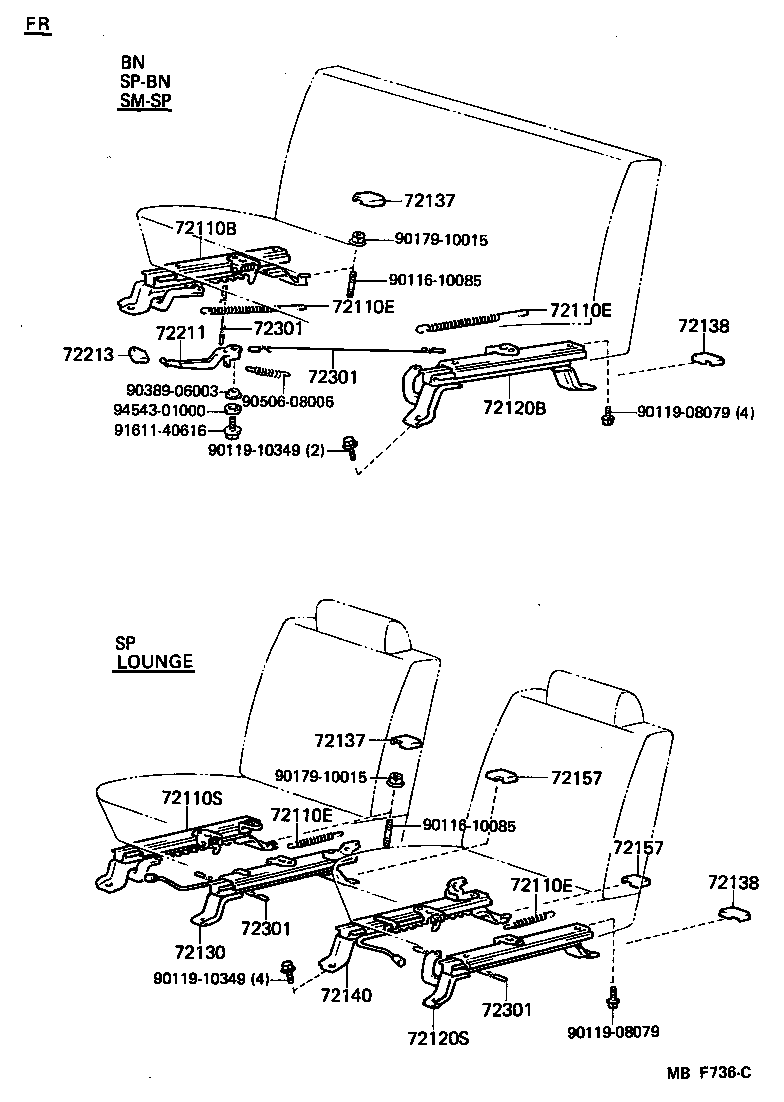

ILLUST NO. 3 OF 3(8308- )

Click highlighted areas on diagram

diagram 72110B 72110E 72110E 72110E 72110E 72110S 72120B 72120S 72130 72137 72137 72138 72138 72140 72157 72157 72211 72213 72301 72301 72301 72301 9011610085 9011610085 9011908079 9011908079 9011910349 9011910349 9017910015 9017910015 9038906003 9050608006 9161140616 9454301000
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18043

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18043

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18043

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18043

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-30330

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,SP

 1
72110-30270

GS120,121,LS120,MS120..SPE

SP

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-30220

GS120..(HT,SED)..4HC..SAL;GS120..(4FC,5F)..(SAL,SPE);GS121,LS120,MS12#..ROY,SAL,SPE

SP,LOUNGE

 1
72120-30220

MS125..SED..4HC;GS120..(HT,SED)..4HC..SAL;GS121,LS120..ROY,SAL,SPE,SSL;GS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

SP,LOUNGE

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-30120

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,SP

 1
72130-30110

GS12#,LS12#,MS120,YS120..(4FC,5F)..(DLX,SDX,SPE,STD)

SP

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72137-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72137-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72137-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72137-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72137-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72137-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72138-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72138-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72138-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72138-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72138-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72138-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72138-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72138-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
72140-30100

GS120,121,LS120..HT..(4FC,5F)

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72158-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BLUE,BLUE,TRIM8#

 1
72158-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72157-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BLUE,BLUE,TRIM8#

 1
72157-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,MAROON,MAROON,TRIM3#

 1
72158-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,MAROON,MAROON,TRIM3#

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72158-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BLUE,BLUE,TRIM8#

 1
72158-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72157-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BLUE,BLUE,TRIM8#

 1
72157-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,MAROON,MAROON,TRIM3#

 1
72158-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,MAROON,MAROON,TRIM3#

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
Common parts
90116-10085
90119-08079
90119-10349
90179-10015
90389-06003
90506-08006
91611-40616
94543-01000

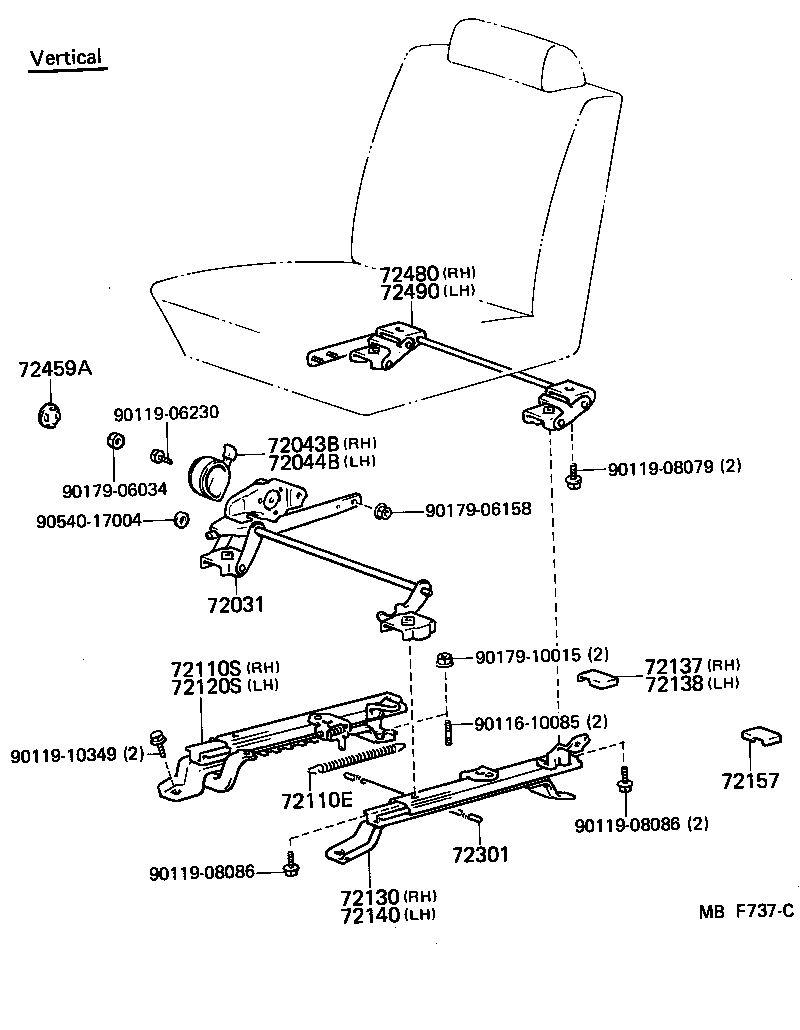

ILLUST NO. 3 OF 3(8308- )

Click highlighted areas on diagram

diagram 72031 72043B 72044B 72110E 72110S 72120S 72130 72137 72138 72140 72157 72301 72459A 72480 72490 9011610085 9011906230 9011908079 9011908086 9011908086 9011910349 9017906034 9017906158 9017910015 9054017004
Part # Description Qty Price
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-30040

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,RH SEAT

 1
72043B - LEVER SUB-ASSY, SEAT LIFTER, RH
72043-3001004

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,BLUE,BLUE,TRIM8#

 1
72043-3001002

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,DEEP MAROON,RED/MAROON,TRIM3#

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18043

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-30330

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,SP

 1
72110-30270

GS120,121,LS120,MS120..SPE

SP

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-30220

GS120..(HT,SED)..4HC..SAL;GS120..(4FC,5F)..(SAL,SPE);GS121,LS120,MS12#..ROY,SAL,SPE

SP,LOUNGE

 1
72120-30220

MS125..SED..4HC;GS120..(HT,SED)..4HC..SAL;GS121,LS120..ROY,SAL,SPE,SSL;GS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

SP,LOUNGE

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-30120

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,SP

 1
72130-30110

GS12#,LS12#,MS120,YS120..(4FC,5F)..(DLX,SDX,SPE,STD)

SP

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72137-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72137-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72137-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72138-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72138-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72138-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72138-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
72140-30100

GS120,121,LS120..HT..(4FC,5F)

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72158-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BLUE,BLUE,TRIM8#

 1
72158-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72157-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BLUE,BLUE,TRIM8#

 1
72157-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,MAROON,MAROON,TRIM3#

 1
72158-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,MAROON,MAROON,TRIM3#

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30100

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
72459A - CAP, VERTICAL SEAT ADJUSTER KNOB
72459-3002002

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,RH SEAT,MAROON,DEEP MAROON,TRIM3#

 1
72459-3002004

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE,RH SEAT,BLUE,BLUE,TRIM8#

 1
72480 - ADJUSTER ASSY, FRONT SEAT VERTICAL, NO.2 RH
72480-30010

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
Common parts
90116-10085
90119-06230
90119-08079
90119-08086
90119-10349
90179-06034
90179-06158
90179-10015
90540-17004

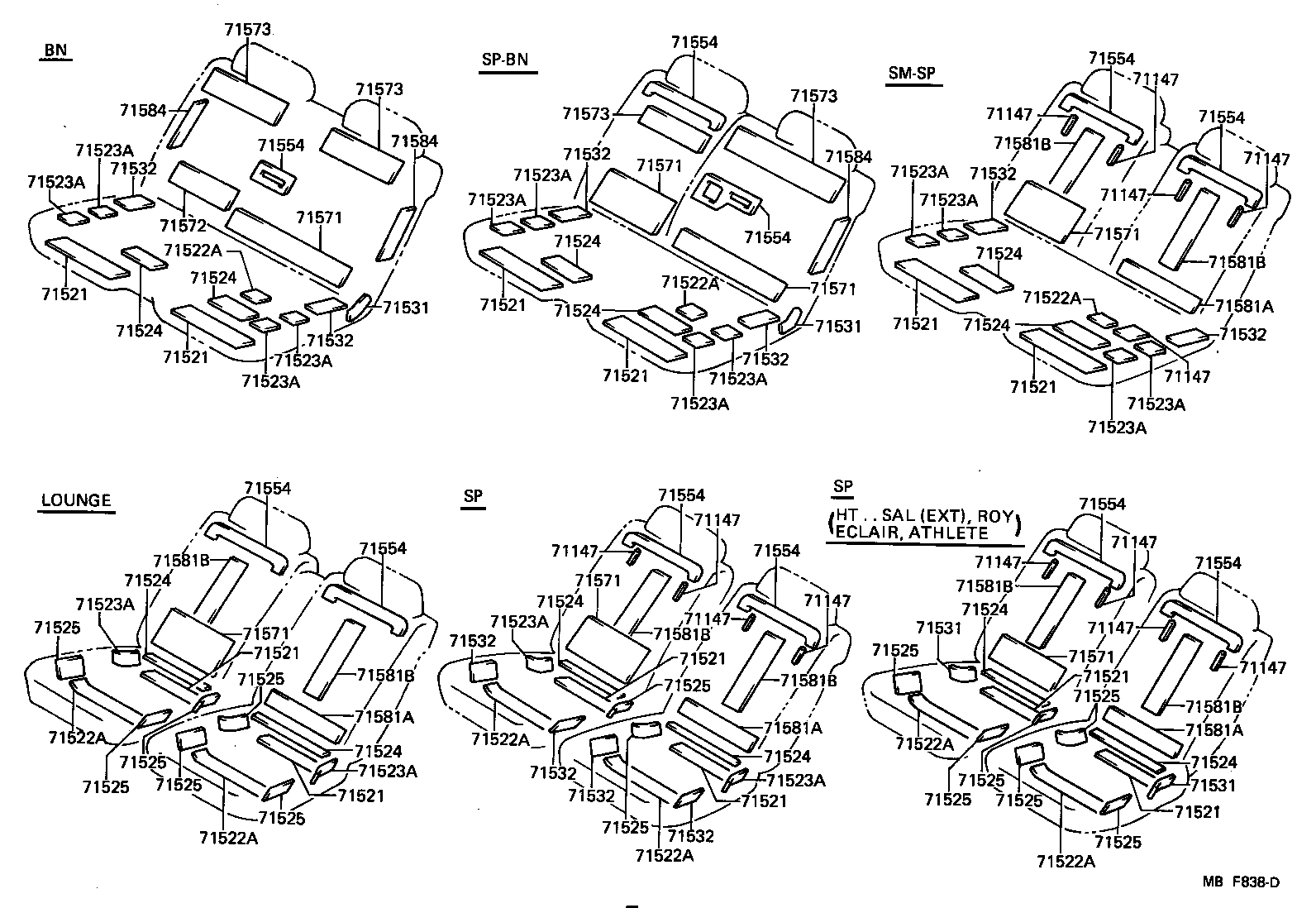

ILLUST NO. 2 OF 3(8308- )

Click highlighted areas on diagram

diagram 71147 71147 71147 71147 71147 71147 71147 71147 71147 71147 71147 71147 71147 71521 71521 71521 71521 71521 71521 71521 71521 71521 71521 71521 71521 71522A 71522A 71522A 71522A 71522A 71522A 71522A 71522A 71522A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71523A 71524 71524 71524 71524 71524 71524 71524 71524 71524 71524 71524 71524 71525 71525 71525 71525 71525 71525 71525 71525 71525 71525 71525 71525 71525 71525 71531 71531 71531 71531 71532 71532 71532 71532 71532 71532 71532 71532 71532 71532 71554 71554 71554 71554 71554 71554 71554 71554 71554 71554 71554 71571 71571 71571 71571 71571 71571 71571 71572 71573 71573 71573 71573 71581A 71581A 71581A 71581A 71581B 71581B 71581B 71581B 71581B 71581B 71581B 71581B 71584 71584 71584
Part # Description Qty Price
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-30260

GS12#,LS12#,MS12#,YS120

 2
71521-30260

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71523A - PAD, FRONT SEAT CUSHION SILENCER, C
71523-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71524 - PAD, FRONT SEAT CUSHION SILENCER, D
71524-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71525 - PAD, FRONT SEAT CUSHION SILENCER, E
71672-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71556-30010

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71532 - PAD, FRONT SEAT CUSHION CORNER, B
71532-30070

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71554 - PAD, FRONT SEAT BACK, C
71554-30300

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71531-30030

GS120,121,LS120,MS120..SPE

ECLAIR,ATHLETE

 1
71571-30130

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30040

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 4
71581A - PAD, FRONT SEAT BACK CORNER, A
71581-30080

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71581A - PAD, FRONT SEAT BACK CORNER, A
71581-30080

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71581A - PAD, FRONT SEAT BACK CORNER, A
71581-30080

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71581A - PAD, FRONT SEAT BACK CORNER, A
71581-30080

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 1
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2
71581B - PAD, FRONT SEAT BACK CORNER, B
71582-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

SP

 2

ILLUST NO. 3 OF 3(8308- )

Click highlighted areas on diagram

diagram 72110 72120A 72125 72137 72138 72157 72401 72402 72402 72402 72405 72405 72410A 72420 72430 8202 8513 8513 8513 9011610085 9011908085 9011910349 9016840068 9017910015 9111240612 9113140650 9161140612 9453100600
Part # Description Qty Price
72137 - COVER, SEAT TRACK, OUTER RH
72137-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72137-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72137-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72137-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-3001005

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

BEIGE,BEIGE,TRIM4#

 1
72138-3001004

GS12#,LS12#,MS12#,YS120

BLUE,BLUE,TRIM8#

 1
72138-3001002

GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
72138-3001006

GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
72138-3001012

GS120,121,LS120,MS125..ROY,SAL,SPE,SSL

MAROON,MAROON,TRIM3#

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

RH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72158-3001005

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,BEIGE,BEIGE,TRIM4#

 1
72157-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BLUE,BLUE,TRIM8#

 1
72158-3001002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

LH,SP,DEEP MAROON,RED/MAROON,TRIM3#

 1
72157-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001004

GS120,121,LS120,MS12#..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BLUE,BLUE,TRIM8#

 1
72157-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

RH,SP,MAROON,MAROON,TRIM3#

 1
72158-3001006

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,BROWN,BROWN,TRIM4#

 1
72158-3001012

GS120,121,LS120,MS125..(4FC,5F)..(ROY,SAL,SPE,SSL)

LH,SP,MAROON,MAROON,TRIM3#

 1
Common parts
90116-10085
90119-08085
90119-10349
90168-40068
90179-10015
91112-40612
91131-40650
91611-40612
94531-00600
Linked diagrams
8202
8513
