GS120-STPGE (1983)
Toyota Crown

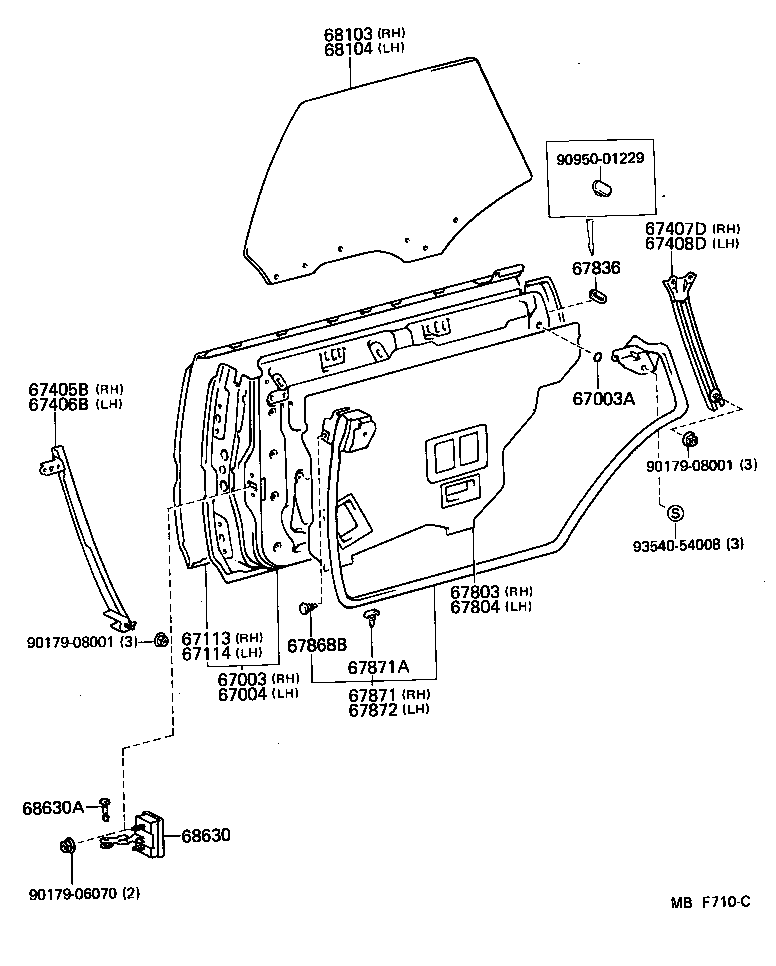

ILLUST NO. 1 OF 2(8308- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30270 |
GS120,121,LS120,MS120..HT |
1 | ||
| 67003-30280 |
GS120,121,LS120,MS125..HT |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30270 |
GS120,121,LS120,MS120..HT |
1 | ||
| 67004-30280 |
GS120,121,LS120,MS125..HT |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30130 |
GS120,121,LS120,MS120..HT |
1 | ||
| 67113-30903 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67113-30905 |
GS120,121,LS120,MS125..HT |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30905 |
GS120,121,LS120,MS125..HT |
1 | ||
| 67114-30140 |
GS120,121,LS120,MS120..HT |
1 | ||
| 67114-30904 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30050 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30070 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-30090 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-30080 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30170 |
GS120,121,LS120,MS120..HT..(SAL,SPE,SSL) |
1 | ||
| 67841-30220 |
GS120,121,LS120,MS120..HT..(SAL,SPE,SSL) COLD SPEC |
1 | ||
| 67841-30230 |
GS120,121,LS120,MS125..HT COLD SPEC |
1 | ||
| 67841-30190 |
GS120,121,LS120,MS125..HT |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30090 |
GS120,121,LS120,MS120..HT..(SAL,SPE,SSL) COLD SPEC |
1 | ||
| 67842-30100 |
GS120,121,LS120,MS125..HT COLD SPEC |
1 | ||
| 67841-30170 |
GS120,121,LS120,MS120..HT..(SAL,SPE,SSL) |
1 | ||
| 67841-30190 |
GS120,121,LS120,MS125..HT |
1 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
GS120,121,LS120,MS12#..HT |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30120 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
GS120,121,LS120,MS12#..HT |
36 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30120 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30250 |
GS120,121,LS120,MS12#..HT *TT,T=5.0 |
1 | ||
| 68113-30260 |
GS120,121,LS120,MS12#..HT BRONZE,*TT,T=5.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30180 |
GS120,121,LS120,MS12#..HT BRONZE,*TT,T=5.0 |
1 | ||
| 68114-30170 |
GS120,121,LS120,MS12#..HT *TT,T=5.0 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30050 |
GS120,121,LS120,MS12#..HT |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 68617-90K00 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90950-01229 | ||||
| 93540-54008 | ||||

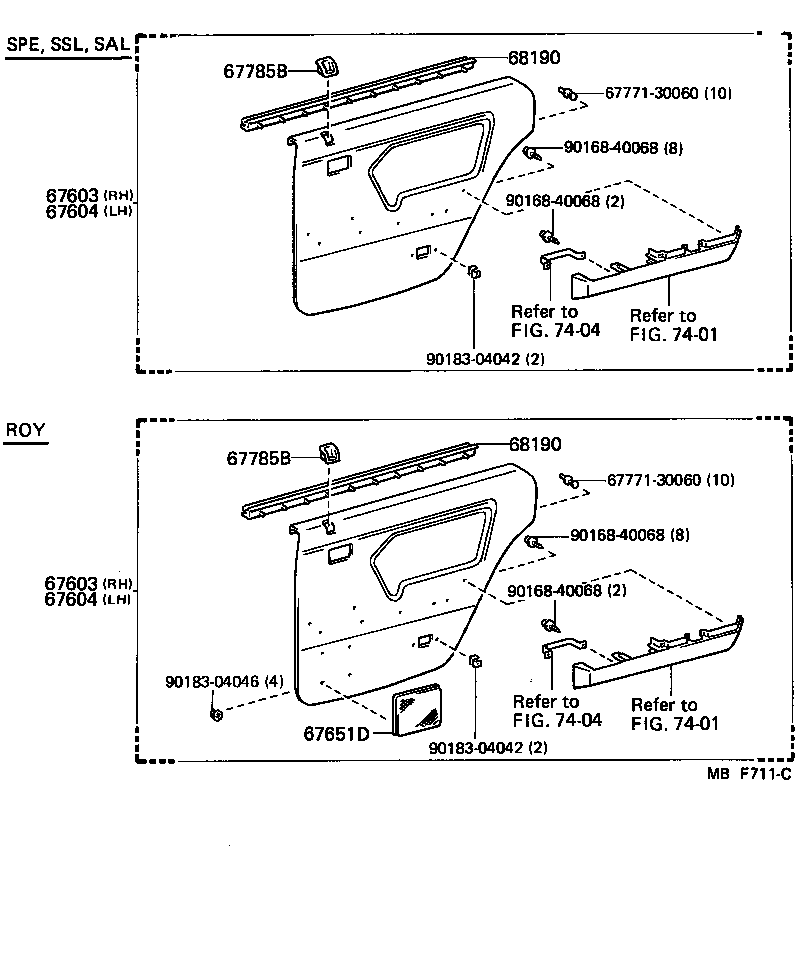

ILLUST NO. 2 OF 2(8308- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3087002 |
GS120..HT..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-3087004 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3087005 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3088004 |
GS120,LS120,MS120..HT..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3088002 |
GS120,LS120,MS120..HT..SAL *EXT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-3088005 |
GS120,LS120,MS120..HT..SAL *EXT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3087102 |
GS120..HT..SAL DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-3087104 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3087105 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3088104 |
GS120,LS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3088102 |
GS120,LS120..HT..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-3088106 |
GS120,LS120..HT..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3087002 |
GS120..HT..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-3087004 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3087005 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3088004 |
GS120,LS120,MS120..HT..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3088002 |
GS120,LS120,MS120..HT..SAL *EXT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-3088005 |
GS120,LS120,MS120..HT..SAL *EXT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3087102 |
GS120..HT..SAL DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67630-3087104 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3087105 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-3088104 |
GS120,LS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-3088102 |
GS120,LS120..HT..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 67630-3088106 |
GS120,LS120..HT..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3087002 |
GS120..HT..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-3087005 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3087004 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3088002 |
GS120,LS120,MS120..HT..SAL *EXT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-3088004 |
GS120,LS120,MS120..HT..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3088005 |
GS120,LS120,MS120..HT..SAL *EXT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3087104 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3087102 |
GS120..HT..SAL DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-3087105 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3088106 |
GS120,LS120..HT..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3088104 |
GS120,LS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3088102 |
GS120,LS120..HT..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3087002 |
GS120..HT..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-3087005 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3087004 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3088002 |
GS120,LS120,MS120..HT..SAL *EXT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-3088004 |
GS120,LS120,MS120..HT..SAL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3088005 |
GS120,LS120,MS120..HT..SAL *EXT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3087104 |
GS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3087102 |
GS120..HT..SAL DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 67640-3087105 |
GS120..HT..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-3088106 |
GS120,LS120..HT..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 67640-3088104 |
GS120,LS120..HT..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67640-3088102 |
GS120,LS120..HT..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3006002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
2 | ||
| 67785-3005002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 67785-3006006 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL) BROWN,BROWN,TRIM4# |
2 | ||
| 67785-3006004 |
GS120,121,LS120,MS125..ROY,SAL,SDX,SPE,SSL BLUE,BLUE,TRIM8# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-3005005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-3005004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3006002 |
GS120,121,LS120,MS125..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
2 | ||
| 67785-3005002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 67785-3006006 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL) BROWN,BROWN,TRIM4# |
2 | ||
| 67785-3006004 |
GS120,121,LS120,MS125..ROY,SAL,SDX,SPE,SSL BLUE,BLUE,TRIM8# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-30110 |
GS120,121,LS120,MS12#..HT LH |
1 | ||
| 68190-30150 |
GS120,121,LS120,MS12#..HT RH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-30110 |
GS120,121,LS120,MS12#..HT LH |
1 | ||
| 68190-30150 |
GS120,121,LS120,MS12#..HT RH |
1 | ||
| Common parts | ||||
| 67771-30060 | ||||
| 90168-40068 | ||||
| 90183-04042 | ||||
| 90183-04046 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7404 | ||||
