GS120-STPGE (1983)
Toyota Crown

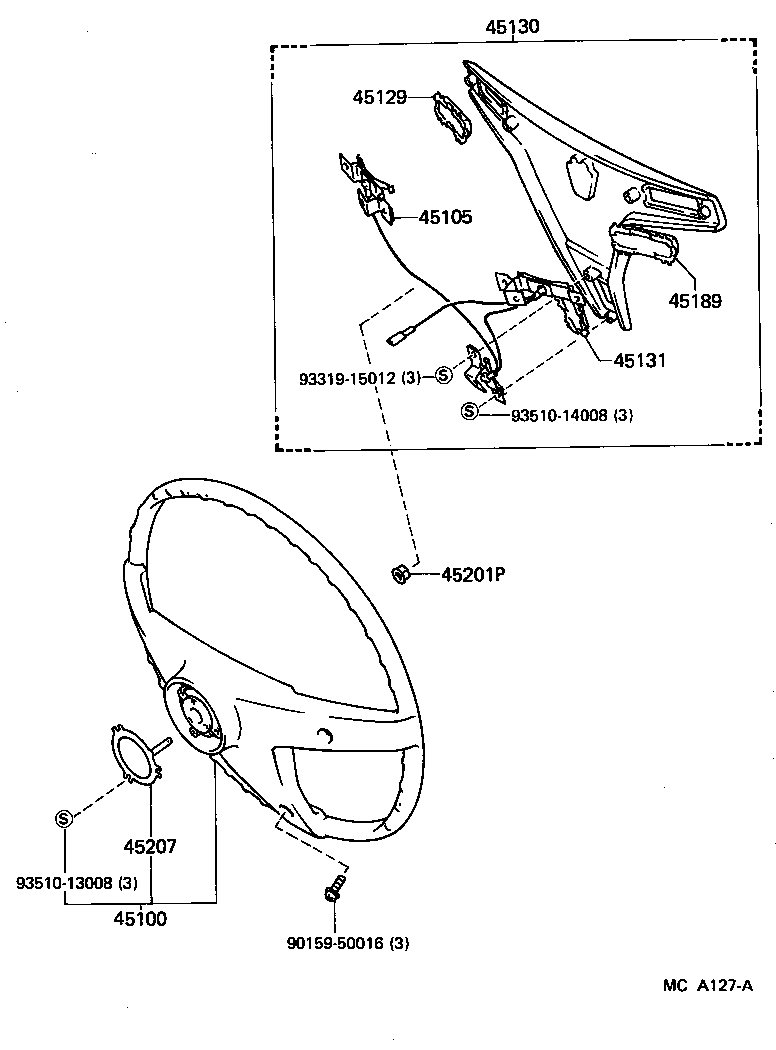

(8308- )GS120..WG..MTM ; (8308- )GS126,LS126,YS120 ; (8308- )GS120,LS120,M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3025002 |
GS120,LS120,MS120..(HT,SED)..(SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45100-3026002 |
GS120,LS120,MS120..(HT,SED)..SAL DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45100-3026005 |
GS120,LS120,MS120..SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45100-3025005 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45100-3026004 |
GS120,LS120,MS120..SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45100-3025004 |
GS120,126,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45100-3026012 |
GS120,LS120..SAL MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45100-3025012 |
GS120,LS120..SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3025006 |
GS120,126,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4# |
1 | ||
| 45100-3026006 |
GS120,LS120..(HT,SED)..SAL BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45100-3025014 |
GS120,126,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45100-3026014 |
GS120,LS120..SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30080 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3021005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45130-3021004 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130-3021002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-3021002 |
GS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-3022005 |
GS120,121,LS120,MS12#..ROY,SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45130-3022002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45130-3021012 |
GS120,121,LS120..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 45130-3021006 |
GS12#,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4# |
1 | ||
| 45130-3021004 |
GS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130-3022012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45130-3022004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45130-3022014 |
GS120,121,LS120,MS125..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45130-3022006 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL) BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45130-3021005 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45130-3021014 |
GS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-14014 |
GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) W/TILT STEERING |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-14030 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45176-14050 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90159-50016 | ||||
| 93319-15012 | ||||
| 93510-13008 | ||||
| 93510-14008 | ||||

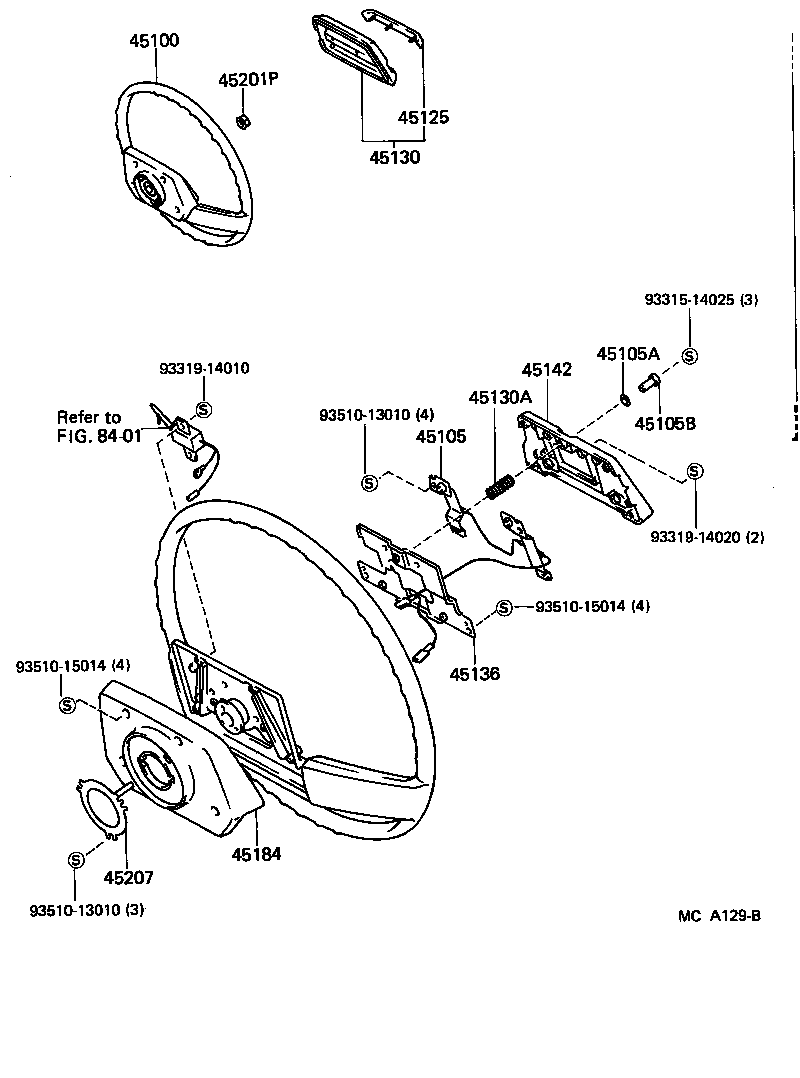

(8308- )GS121..4HC ; (8308- )MS123,125,YS120..4H,4HC,5F ; (8308- )GS12#,LS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3025002 |
GS120,LS120,MS120..(HT,SED)..(SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45100-3026002 |
GS120,LS120,MS120..(HT,SED)..SAL DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45100-3026005 |
GS120,LS120,MS120..SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45100-3025005 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45100-3026004 |
GS120,LS120,MS120..SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45100-3025004 |
GS120,126,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45100-3026012 |
GS120,LS120..SAL MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45100-3025012 |
GS120,LS120..SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3025006 |
GS120,126,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4# |
1 | ||
| 45100-3026006 |
GS120,LS120..(HT,SED)..SAL BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45100-3025014 |
GS120,126,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45100-3026014 |
GS120,LS120..SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30080 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08006 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
3 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04006 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
3 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3020002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45125-3021002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45125-3021005 |
GS120,121,LS120,MS12#..ROY,SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45125-3020004 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45125-3020004 |
GS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45125-3021004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45125-3020002 |
GS120,121,LS120..ROY,SAL,SPE,SSL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45125-3021002 |
GS120,121,LS120,MS125..ROY,SAL DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45125-3020005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45125-3021014 |
GS120,121,LS120,MS125..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45125-3020002 |
GS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45125-3020005 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45125-3021005 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL) BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45125-3020005 |
GS12#,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45125-3020014 |
GS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3021005 |
GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45130-3021004 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130-3021002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-3021002 |
GS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-3022005 |
GS120,121,LS120,MS12#..ROY,SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45130-3022002 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL) DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45130-3021012 |
GS120,121,LS120..ROY,SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 45130-3021006 |
GS12#,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4# |
1 | ||
| 45130-3021004 |
GS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130-3022012 |
GS120,121,LS120,MS125..ROY,SAL MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45130-3022004 |
GS120,121,LS120,MS12#..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45130-3022014 |
GS120,121,LS120,MS125..ROY,SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45130-3022006 |
GS120,121,LS120,MS125..(HT,SED)..(ROY,SAL) BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45130-3021005 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45130-3021014 |
GS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-10104 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
3 | ||
| 90501-10040 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE |
3 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-30130 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-30060 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-3007002 |
GS120,LS120,MS120..(HT,SED)..SAL DEEP MAROON,W/*AD,RED/MAROON,TRIM3# |
1 | ||
| 45184-3006005 |
GS120,126,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) BEIGE,W/POWER STEERING,BEIGE,TRIM4# |
1 | ||
| 45184-3006002 |
GS120,LS120,MS120..(HT,SED)..(SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45184-3006004 |
GS120,126,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45184-3007005 |
GS120,LS120,MS120..SAL BEIGE,W/*AD,BEIGE,TRIM4# |
1 | ||
| 45184-3007004 |
GS120,LS120,MS120..SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45184-3007012 |
GS120,LS120..SAL MAROON,W/*AD,MAROON,TRIM3# |
1 | ||
| 45184-3006006 |
GS120,126,LS12#..(HT,SED,V)..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) BROWN,W/POW STEERING,SEPIA BROWN,TRIM4# |
1 | ||
| 45184-3007006 |
GS120,LS120..(HT,SED)..SAL BROWN,W/*AD,SEPIA BROWN,TRIM4# |
1 | ||
| 45184-3006012 |
GS120,LS120..SAL,SPE,SSL MAROON,MAROON,TRIM3# |
1 | ||
| 45184-3006014 |
GS120,126,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL BLUE,W/POWER STEERING,BLUE,TRIM8# |
1 | ||
| 45184-3007014 |
GS120,LS120..SAL BLUE,W/*AD,BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-14014 |
GS12#,LS12#,MS123,125..(4FC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) W/TILT STEERING |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-14030 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL W/POWER STEERING |
1 | ||
| 45176-14050 |
GS12#,LS12#,MS12#,YS120..DLX,ROY,SAL,SDX,SPE W/POWER STEERING |
1 | ||
| Common parts | ||||
| 93315-14025 | ||||
| 93319-14010 | ||||
| 93319-14020 | ||||
| 93510-13010 | ||||
| 93510-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
