GS120-STPGE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

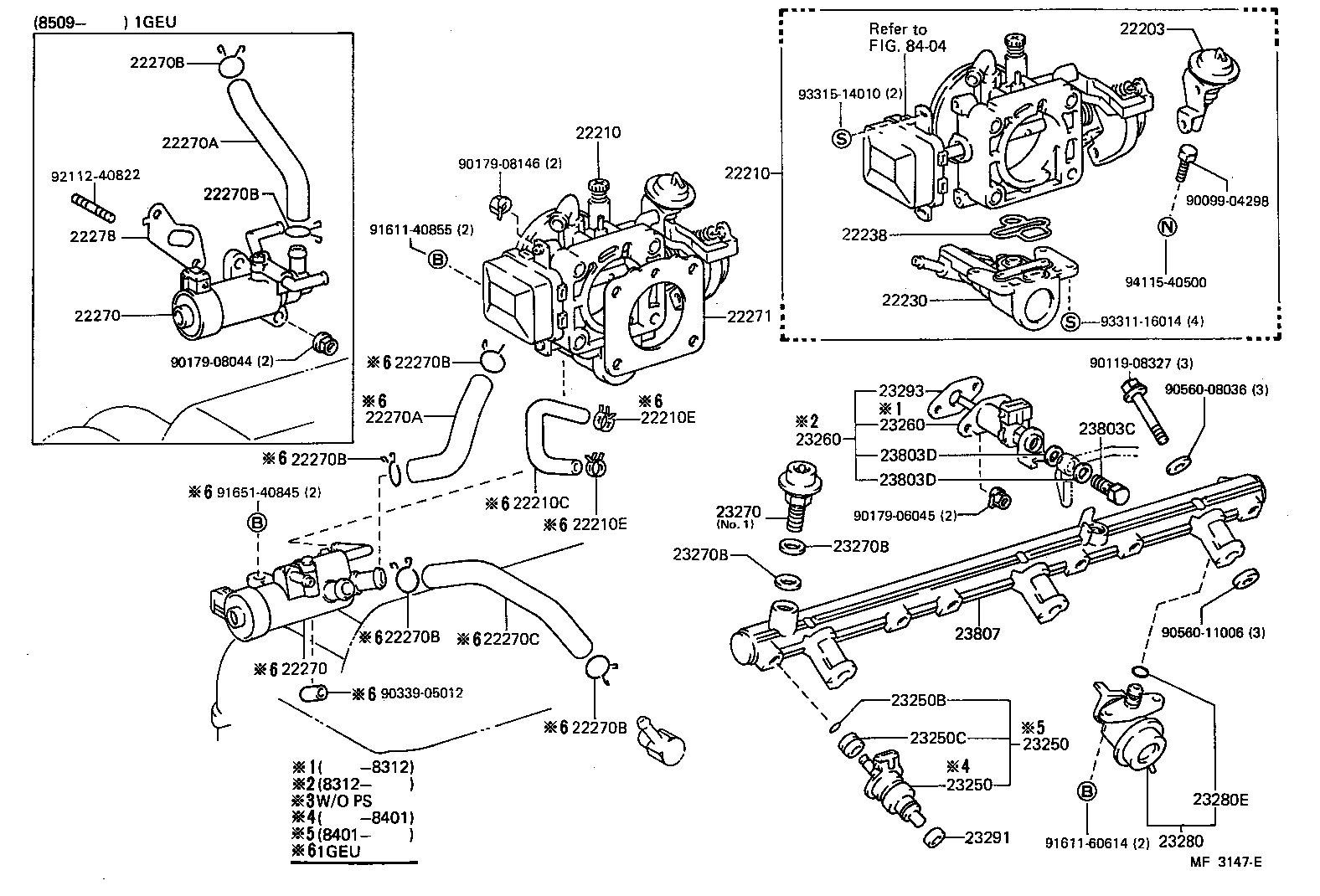

ILLUST NO. 1 OF 2(8308- )1GEU ; (8509- )1GEJ

Click highlighted areas on diagram

diagram 22203 22210 22210 22210C 22210E 22210E 22230 22238 22270 22270 22270A 22270A 22270B 22270B 22270B 22270B 22270B 22270B 22270C 22271 22278 23250 23250 23250B 23250C 23260 23260 23270 23270B 23270B 23280 23280E 23291 23293 23803C 23803D 23803D 23807 8404 9009904298 9011908327 9017906045 9017908044 9017908146 9033905012 9056008036 9056011006 9161140855 9161160614 9165140845 9211240822 9331116014 9331514010 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70011

1GE#..GS120,126

 1
22203-70030

1GE#..GS120,126

 1
22210 - BODY ASSY, THROTTLE
22210-70060

1GEU..GS120

 1
22210-70080

1GEU..GS120

 1
22210-70061

1GEU..GS120

 1
22210 - BODY ASSY, THROTTLE
22210-70060

1GEU..GS120

 1
22210-70080

1GEU..GS120

 1
22210-70061

1GEU..GS120

 1
22210C - HOSE, WATER BY-PASS, NO.1
16264-70020

1GEU..GS120

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

1GEU,1GGEU..GS120,121

 4
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

1GEU,1GGEU..GS120,121

 4
22230 - VALVE ASSY, AUXILIARY AIR
22230-70040

1GE#..GS120,126

 1
22230-70030

1GEU..GS120

 1
22238 - GASKET, AUXILIARY AIR VALVE
22238-70010

1GEU..GS120

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70020

1GEU..GS120

 1
22270-70040

1GEU..GS120

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70020

1GEU..GS120

 1
22270-70040

1GEU..GS120

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
17343-70020

1GEU..GS120

 1
17343-70010

1GEU..GS120

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
17343-70020

1GEU..GS120

 1
17343-70010

1GEU..GS120

 1
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GEU..GS120

 4
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GEU..GS120

 4
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GEU..GS120

 4
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GEU..GS120

 4
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GEU..GS120

 4
22270B - CLIP(FOR AIR HOSE)
90467-20002

1GEU..GS120

 4
22270C - HOSE, AIR, NO.2(FOR IDLE SPEED CONTROL VALVE)
17344-70010

1GEU..GS120

 1
22271 - GASKET, THROTTLE BODY
22271-70010

1GE#..GS120,126

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-70010

1GEU..GS120

 1
23250 - INJECTOR ASSY, FUEL
23209-70010

1GE#..GS120,126

 6
23250-70010

1GE#..GS120,126

 6
23250 - INJECTOR ASSY, FUEL
23209-70010

1GE#..GS120,126

 6
23250-70010

1GE#..GS120,126

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GEU,1GG#,1GEJ..GS12#

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GEU,1GG#,1GEJ..GS12#

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-70020

1GE#..GS120,126

 1
23260-79075

1GE#..GS120,126

 1
23260-79025

1GE#..GS120,126

 1
23260 - INJECTOR ASSY, COLD START FUEL
23260-70020

1GE#..GS120,126

 1
23260-79075

1GE#..GS120,126

 1
23260-79025

1GE#..GS120,126

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70010

1GE#..GS120,126

NO.1

 1
23270-70030

1GEU..GS120

NO.2

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-14002

1GE#..GS120,126

ID=14.2

 1
90430-17002

1GE#..GS120,126

ID=17.3

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-14002

1GE#..GS120,126

ID=14.2

 1
90430-17002

1GE#..GS120,126

ID=17.3

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70020

1GE#..GS120,126

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

1GE#..GS120,126

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GEU,1GG#,1GEJ..GS12#

 6
23293 - GASKET, COLD START INJECTOR
23293-70010

1GE#..GS120,126

 1
23293-70020

1GEU,1GGZEU,1GEJ..GS12#

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GEU,1GG#,1GEJ..GS12#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GEU,1GG#,1GEJ..GS12#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GEU,1GG#,1GEJ..GS12#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70020

1GE#..GS120,126

 1
Common parts
90099-04298
90119-08327
90179-06045
90179-08044
90179-08146
90339-05012
90560-08036
90560-11006
91611-40855
91611-60614
91651-40845
92112-40822
93311-16014
93315-14010
94115-40500
Linked diagrams
8404

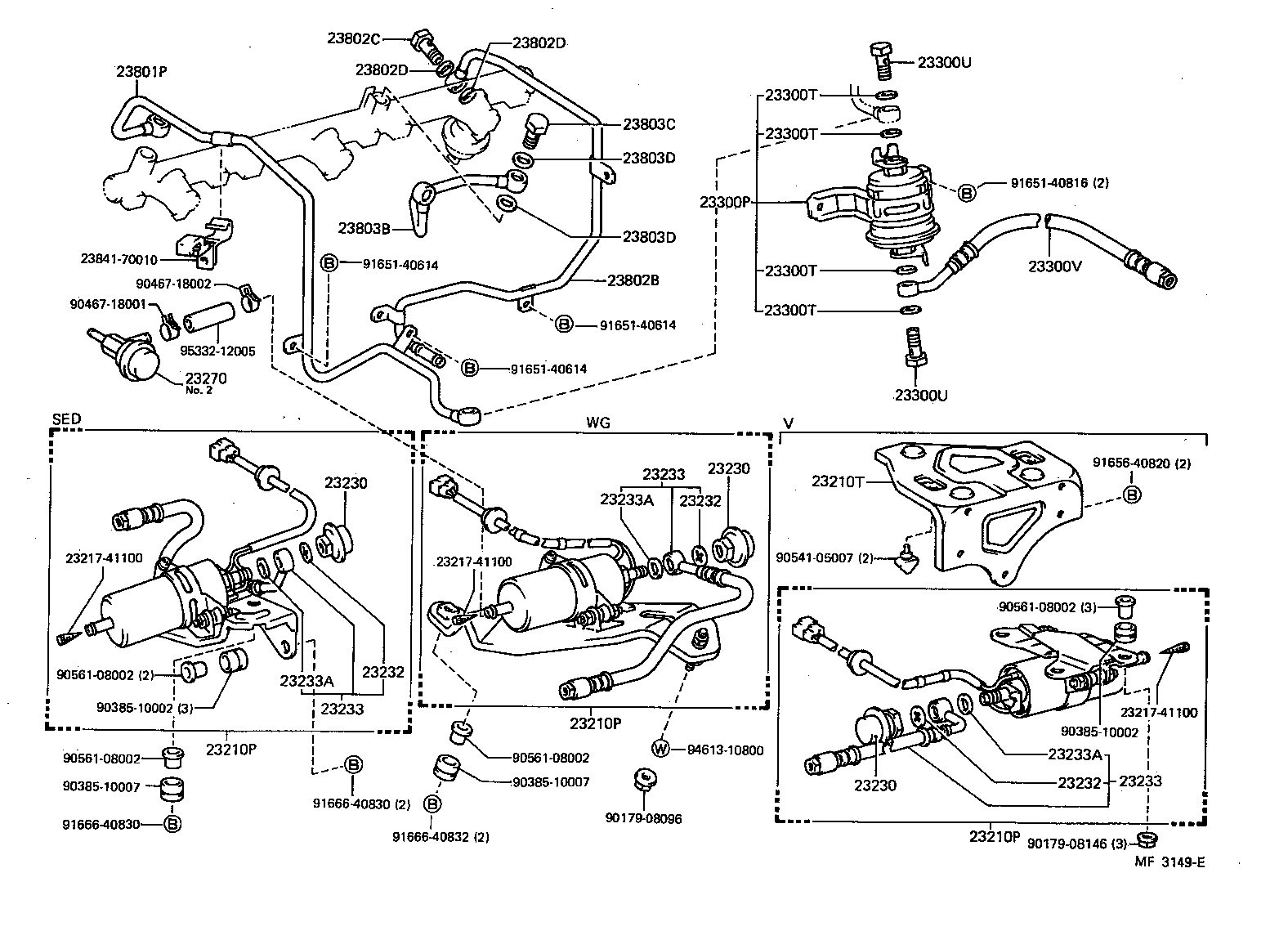

ILLUST NO. 2 OF 2(8308- )1GE#

Click highlighted areas on diagram

diagram 23210P 23210P 23210P 23210T 2321741100 2321741100 2321741100 23230 23230 23230 23232 23232 23232 23233 23233 23233 23233A 23233A 23233A 23270 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23801P 23802B 23802C 23802D 23802D 23803B 23803C 23803D 23803D 2384170010 9017908096 9017908146 9038510002 9038510002 9038510007 9038510007 9046718001 9046718002 9054105007 9056108002 9056108002 9056108002 9056108002 9165140614 9165140614 9165140614 9165140816 9165640820 9166640830 9166640830 9166640832 9461310800 9533212005
Part # Description Qty Price
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-41110

1GEU..GS120..HT,SED

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-41110

1GEU..GS120..HT,SED

 1
23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-41110

1GEU..GS120..HT,SED

 1
23230 - SILENCER ASSY
23230-26080

1GE#..GS120,126

 1
23230 - SILENCER ASSY
23230-26080

1GE#..GS120,126

 1
23230 - SILENCER ASSY
23230-26080

1GE#..GS120,126

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1GE#..GS120,126

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1GE#..GS120,126

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1GE#..GS120,126

 1
23233 - HOSE, FUEL PUMP
90999-99122

1GEU..GS120..HT,SED

 1
23233 - HOSE, FUEL PUMP
90999-99122

1GEU..GS120..HT,SED

 1
23233 - HOSE, FUEL PUMP
90999-99122

1GEU..GS120..HT,SED

 1
23233A - WASHER(FOR FUEL PUMP HOSE)
90099-01496

1GE#..GS120,126

 1
23233A - WASHER(FOR FUEL PUMP HOSE)
90099-01496

1GE#..GS120,126

 1
23233A - WASHER(FOR FUEL PUMP HOSE)
90099-01496

1GE#..GS120,126

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-70010

1GE#..GS120,126

NO.1

 1
23270-70030

1GEU..GS120

NO.2

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79015

1GE#..GS120,126

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GEU,1GG#,1GEJ..GS12#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GEU,1GG#,1GEJ..GS12#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GEU,1GG#,1GEJ..GS12#

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GEU,1GG#,1GEJ..GS12#

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GEU,1GG#,1GEJ..GS12#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GEU,1GG#,1GEJ..GS12#

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01298

1GEU,1GG#,1GEJ..GS12#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70030

1GE#..GS120,126

 1
23801-70010

1GE#..GS120,126

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-70011

1GE#..GS120,126

 1
23802-70040

1GE#..GS120,126

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08003

1GE#..GS120,126

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08005

1GE#..GS120,126

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08005

1GE#..GS120,126

 2
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70020

1GE#..GS120,126

 1
23803-70030

1GE#..GS120,126

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

1GEU,1GG#,1GEJ..GS12#

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GEU,1GG#,1GEJ..GS12#

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08005

1GEU,1GG#,1GEJ..GS12#

 4
Common parts
23217-41100
23841-70010
90179-08096
90179-08146
90385-10002
90385-10007
90467-18001
90467-18002
90541-05007
90561-08002
91651-40614
91651-40816
91656-40820
91666-40830
91666-40832
94613-10800
95332-12005
