GS120-STMZE (1983)
Toyota Crown

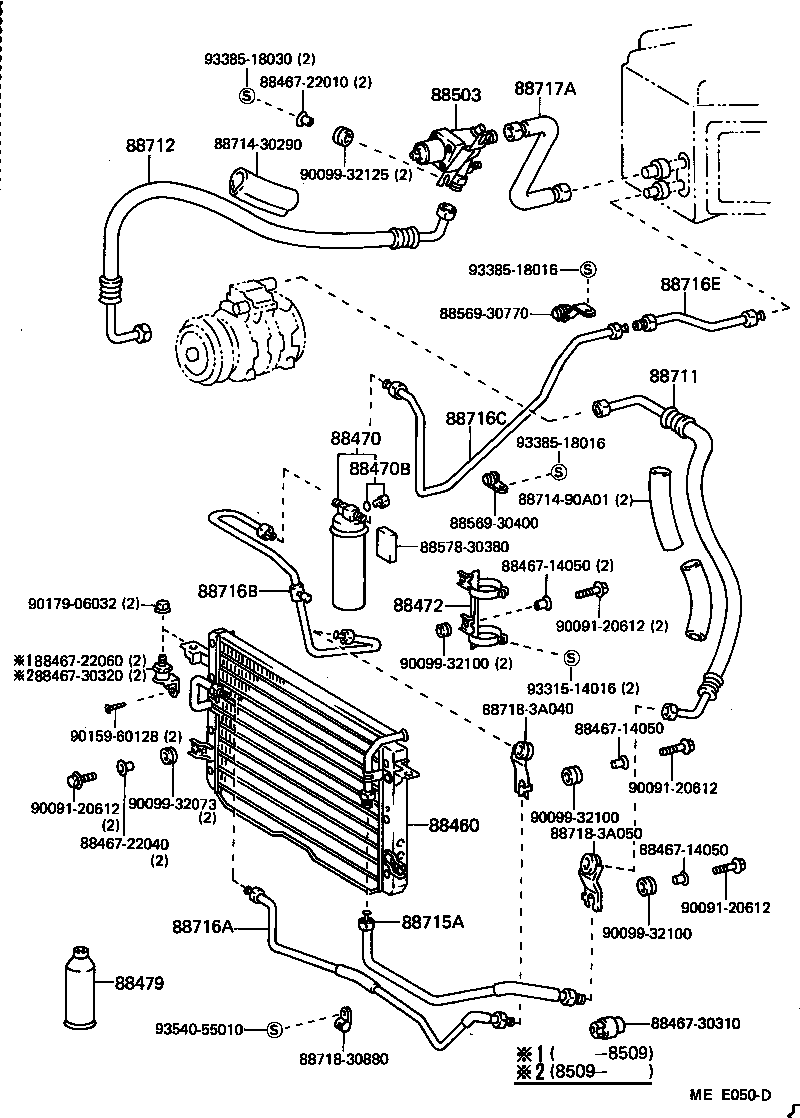

ILLUST NO. 1 OF 2(8308- )GS120,126,MS120 ; (8405- )GS121..SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30520 |
GS120,126,MS120 |
1 | ||
| 88460-30480 |
GS12#,MS120..DLX,SAL,SDX,SPE,STD |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-30280 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-30270 |
GS12#,LS12#,MS120,YS120 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
GS12#,LS12#,MS12#,YS120 400G,400G |
3 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30410 |
GS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30610 |
GS120,126 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30790 |
GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30320 |
GS12#,MS12#..EFI,LPG,TBO,TWC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30680 |
GS12#,MS12#..EFI,LPG,TBO,TWC |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-30690 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 88726-30691 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-30880 |
GS120 |
1 | ||
| 88726-30881 |
GS120 |
1 | ||
| 88726-30700 |
GS12#,MS12#,YS120 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30730 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88726-30660 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) W/RR COOLER |
1 | ||
| 88726-30660 |
GS120,121,LS120,MS125..HT W/RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30630 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88727-30600 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) W/RR COOLER |
1 | ||
| 88727-30700 |
GS120,121,LS120,MS125..HT W/RR COOLER |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22010 | ||||
| 88467-22040 | ||||
| 88467-22060 | ||||
| 88467-30310 | ||||
| 88467-30320 | ||||
| 88569-30400 | ||||
| 88569-30770 | ||||
| 88578-30380 | ||||
| 88714-30290 | ||||
| 88714-90A01 | ||||
| 88718-30880 | ||||
| 88718-3A040 | ||||
| 88718-3A050 | ||||
| 90091-20612 | ||||
| 90099-32073 | ||||
| 90099-32100 | ||||
| 90099-32125 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 93315-14016 | ||||
| 93385-18016 | ||||
| 93385-18030 | ||||
| 93540-55010 | ||||
ILLUST NO. 2 OF 2(8308- )GS120,LS120,MS120 ; (8405- )GS121..SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER | ||||
| 88726-30810 |
GS120,121,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88726-30810 |
GS120,LS120..HT |
1 | ||
| 88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B | ||||
| 88726-30800 |
GS120,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88726-30800 |
GS120,LS120..HT |
1 | ||
| 88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C | ||||
| 88726-30790 |
GS120,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88726-30790 |
GS120,LS120..HT |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88726-30760 |
GS120,121,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88726-30760 |
GS120,LS120..HT |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88727-30560 |
GS120,LS120..HT |
1 | ||
| 88727-30560 |
GS120,121,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B | ||||
| 88727-30640 |
GS120,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88727-30640 |
GS120,LS120..HT |
1 | ||
| 88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C | ||||
| 88727-30650 |
GS120,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88727-30650 |
GS120,LS120..HT |
1 | ||
| 88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D | ||||
| 88727-30660 |
GS120,121,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88727-30660 |
GS120,LS120..HT |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-30410 |
GS120,121,LS120,MS125..HT |
2 | ||
| 88578-30290 |
GS120,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-30260 |
GS120,121,LS120,MS120..(HT,SED)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88721-30260 |
GS120,LS120..HT |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30730 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88726-30660 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) W/RR COOLER |
1 | ||
| 88726-30660 |
GS120,121,LS120,MS125..HT W/RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30600 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC) W/RR COOLER |
1 | ||
| 88727-30630 |
GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88727-30700 |
GS120,121,LS120,MS125..HT W/RR COOLER |
1 | ||
| Common parts | ||||
| 88569-30730 | ||||
| 88569-30750 | ||||
| 88569-30760 | ||||
| 88718-30650 | ||||
| 88718-30840 | ||||
| 88718-30870 | ||||
| 88718-3A060 | ||||
| 88897-30660 | ||||
| 90480-50006 | ||||
| 93315-14012 | ||||
| 93385-15012 | ||||
| 93385-16014 | ||||
| 93385-18016 | ||||
| 93540-15012 | ||||
| 93580-10612 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8714 | ||||
