GS120-STMZE (1983)
Toyota Crown

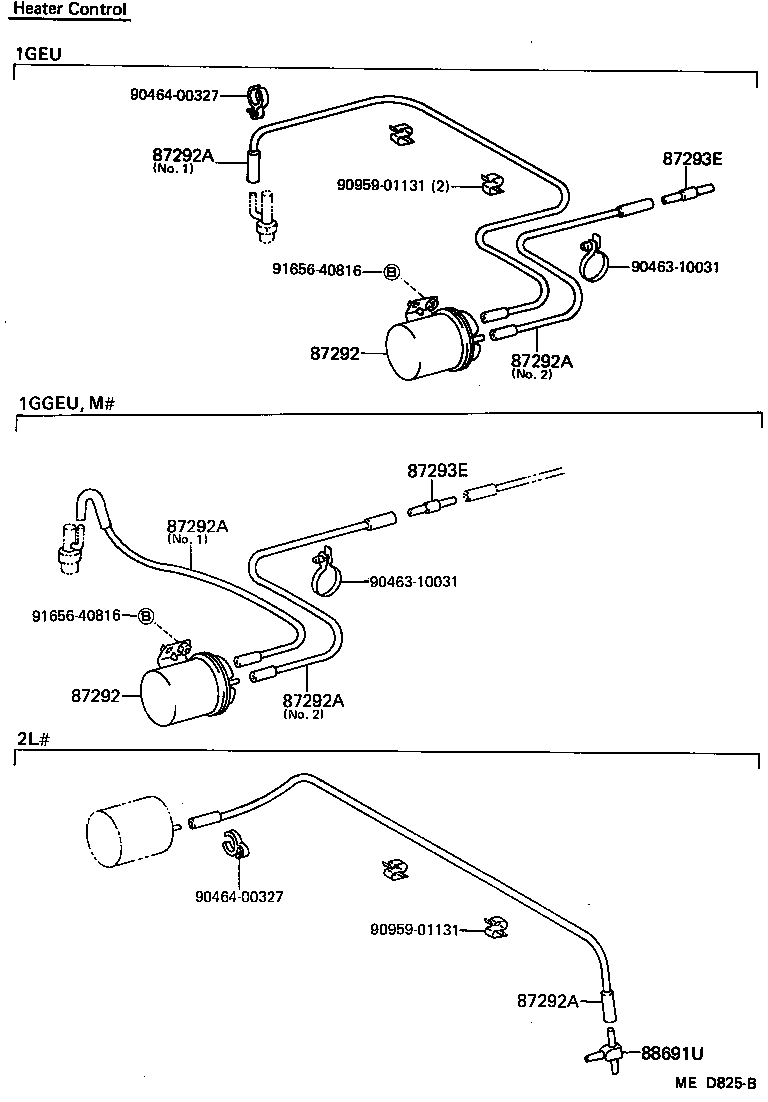

ILLUST NO. 1 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 87292-30290 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) |
1 | ||
| 87292 - TANK, VACUUM | ||||
| 87292-30290 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90447-04003 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) NO.2 |
1 | ||
| 90447-04002 |
GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) NO.1 |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90447-04003 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) NO.2 |
1 | ||
| 90447-04002 |
GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) NO.1 |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90447-04003 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) NO.2 |
1 | ||
| 90447-04002 |
GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) NO.1 |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90447-04003 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) NO.2 |
1 | ||
| 90447-04002 |
GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) NO.1 |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90447-04003 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) NO.2 |
1 | ||
| 90447-04002 |
GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL) NO.1 |
1 | ||
| 87293E - UNION, HOSE | ||||
| 90405-04001 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) |
1 | ||
| 87293E - UNION, HOSE | ||||
| 90405-04001 |
GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC) |
1 | ||
| 88691U - WAY(FOR VACUUM HOSE) | ||||
| 90413-03001 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| Common parts | ||||
| 90463-10031 | ||||
| 90464-00327 | ||||
| 90959-01131 | ||||
| 91656-40816 | ||||

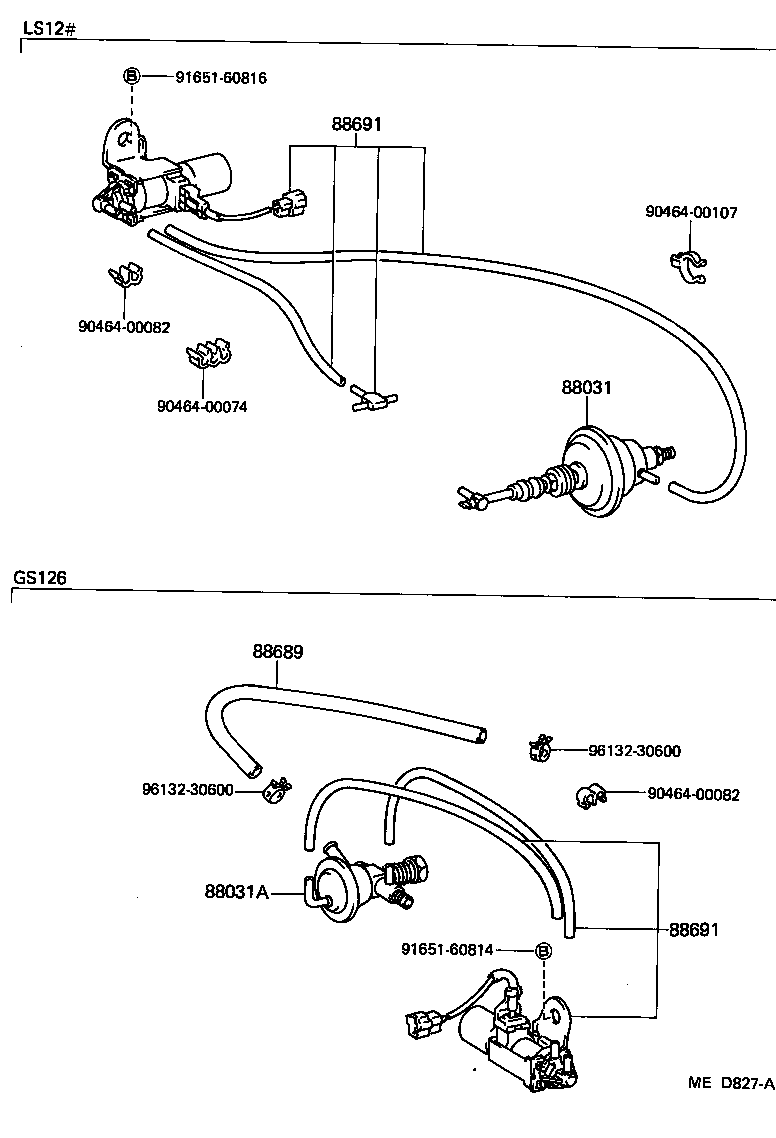

ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00107 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 96132-30600 | ||||

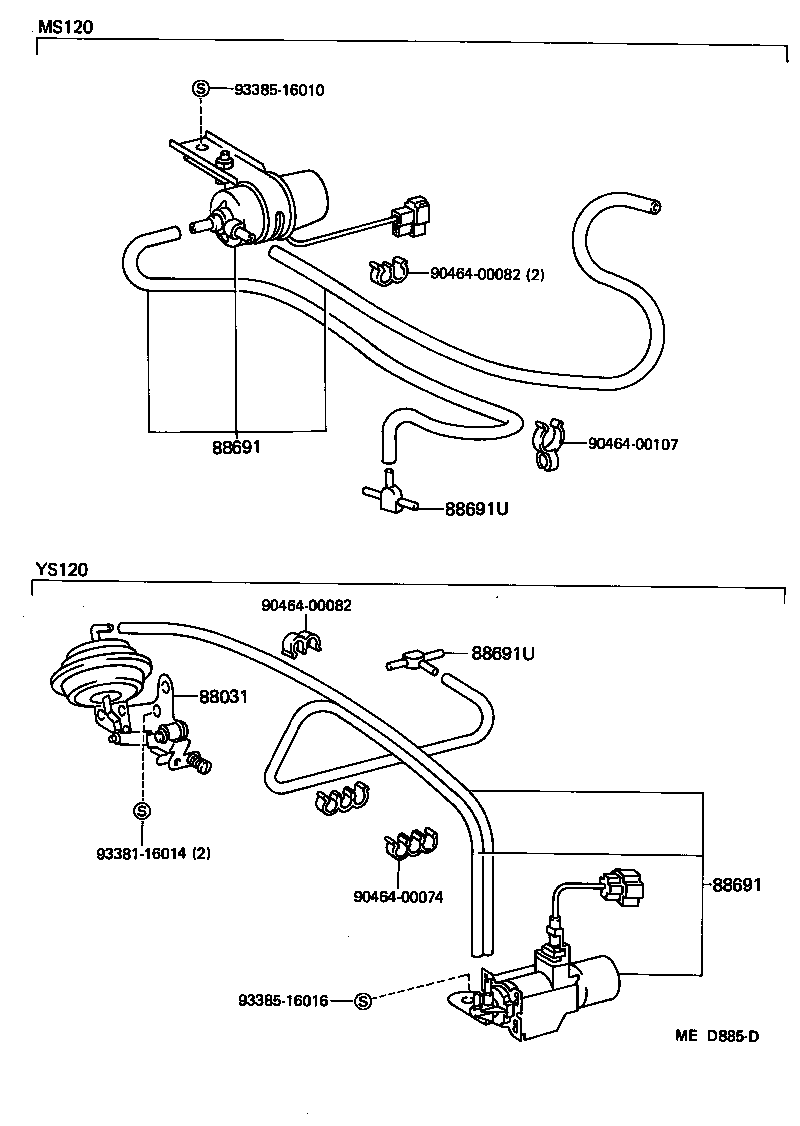

ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691U - WAY(FOR VACUUM HOSE) | ||||
| 90413-03001 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88691U - WAY(FOR VACUUM HOSE) | ||||
| 90413-03001 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00107 | ||||
| 93381-16014 | ||||
| 93385-16010 | ||||
| 93385-16016 | ||||

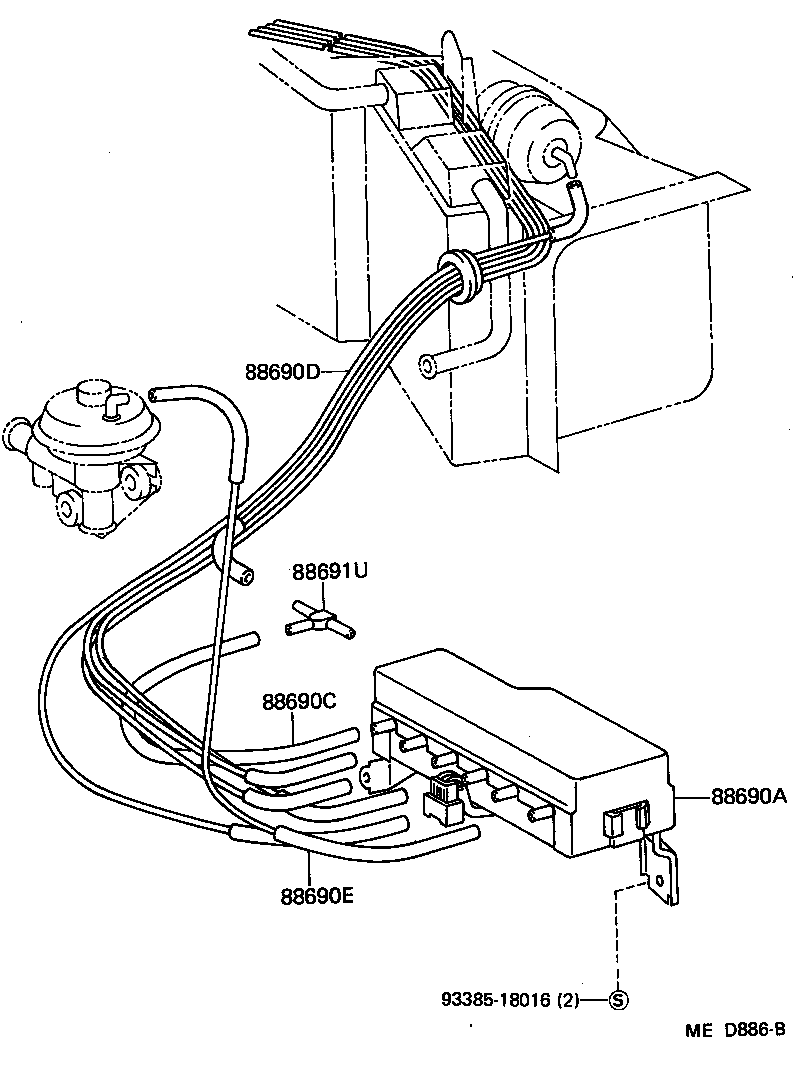

ILLUST NO. 2 OF 2(8308- )WG..TDE ; (8308- )GS120..SED..SDX; (8308- )GS120..SAL,SPE,SSL ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-30510 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06052 |
GS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC) |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88509-30250 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE)..(EFI,TBO,TD,TDE) |
1 | ||
| 88509-30260 |
GS120,LS120..(HT,SED)..(SAL,SDX,SPE,SSL) |
1 | ||
| 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88689-30550 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| 88691U - WAY(FOR VACUUM HOSE) | ||||
| 90413-03001 |
GS120,LS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE) |
1 | ||
| Common parts | ||||
| 93385-18016 | ||||
