GS120-STMZE (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

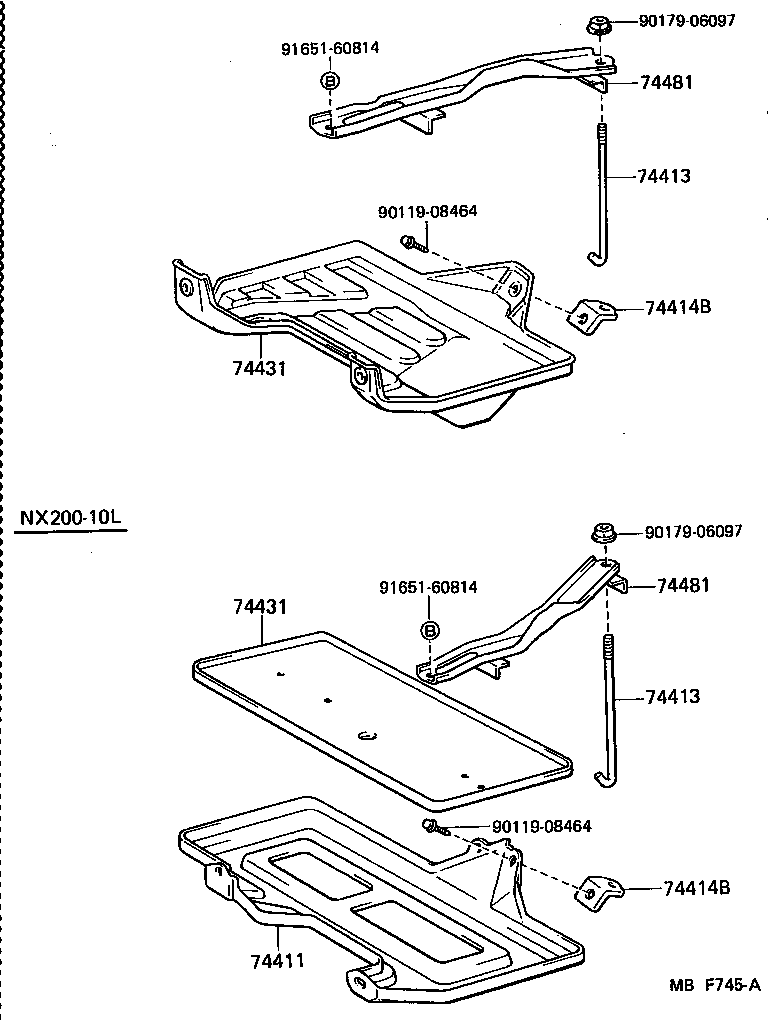

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-30070 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-30070 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 74414B - REINFORCEMENT, BATTERY BRACKET | ||||
| 74414-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 74414B - REINFORCEMENT, BATTERY BRACKET | ||||
| 74414-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-30020 |
GS120,126,MS120..EFI,TBO |
1 | ||
| 74410-30010 |
GS120,121,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 74431-30060 |
GS120,126,MS120..EFI,TBO COLD SPEC |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-30020 |
GS120,126,MS120..EFI,TBO |
1 | ||
| 74410-30010 |
GS120,121,LS12#,MS12#,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 74431-30060 |
GS120,126,MS120..EFI,TBO COLD SPEC |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-30180 |
GS120,126,MS120..EFI,TBO |
1 | ||
| 74404-30200 |
GS120,126,MS120..EFI,TBO COLD SPEC |
1 | ||
| 74404-30201 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-30180 |
GS120,126,MS120..EFI,TBO |
1 | ||
| 74404-30200 |
GS120,126,MS120..EFI,TBO COLD SPEC |
1 | ||
| 74404-30201 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90119-08464 | ||||
| 90179-06097 | ||||
| 91651-60814 | ||||
