GS120-STMGE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

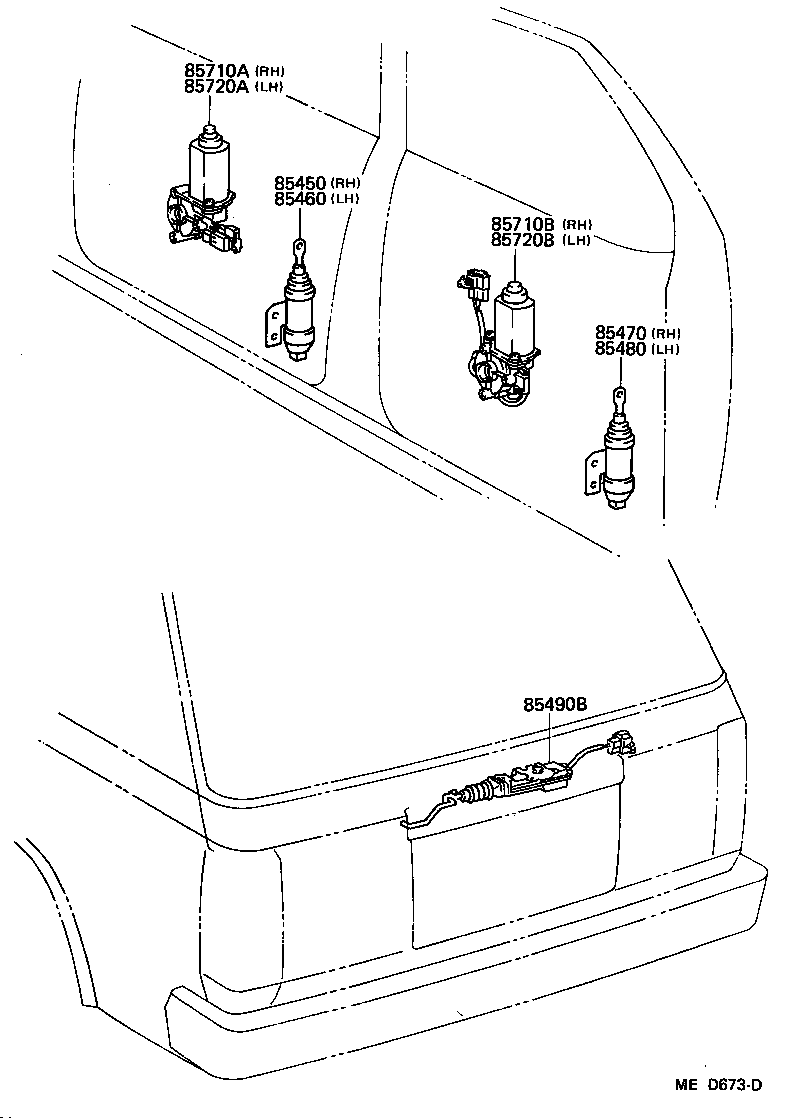

Click highlighted areas on diagram

diagram 85450 85460 85470 85480 85490B 85710A 85710B 85720A 85720B
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-30590

GS120,121,LS120,MS12#..HT..(ROY,SAL)

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-30600

GS120,121,LS120,MS12#..HT..(ROY,SAL)

 1
85450-30600

GS120,121,LS120,MS125..HT

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85450-30610

GS120,121,LS120,MS12#..HT..(ROY,SAL)

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85450-30620

GS120,121,LS120,MS12#..HT..(ROY,SAL)

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-30150

GS120,121,LS120,MS12#..HT

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-30170

GS120,121,LS120,MS12#..HT

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-30100

GS120,121,LS120,MS12#..HT

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-30120

GS120,121,LS120,MS12#..HT

 1
