GS120-STMGE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1GEU,1GG#,1GEJ

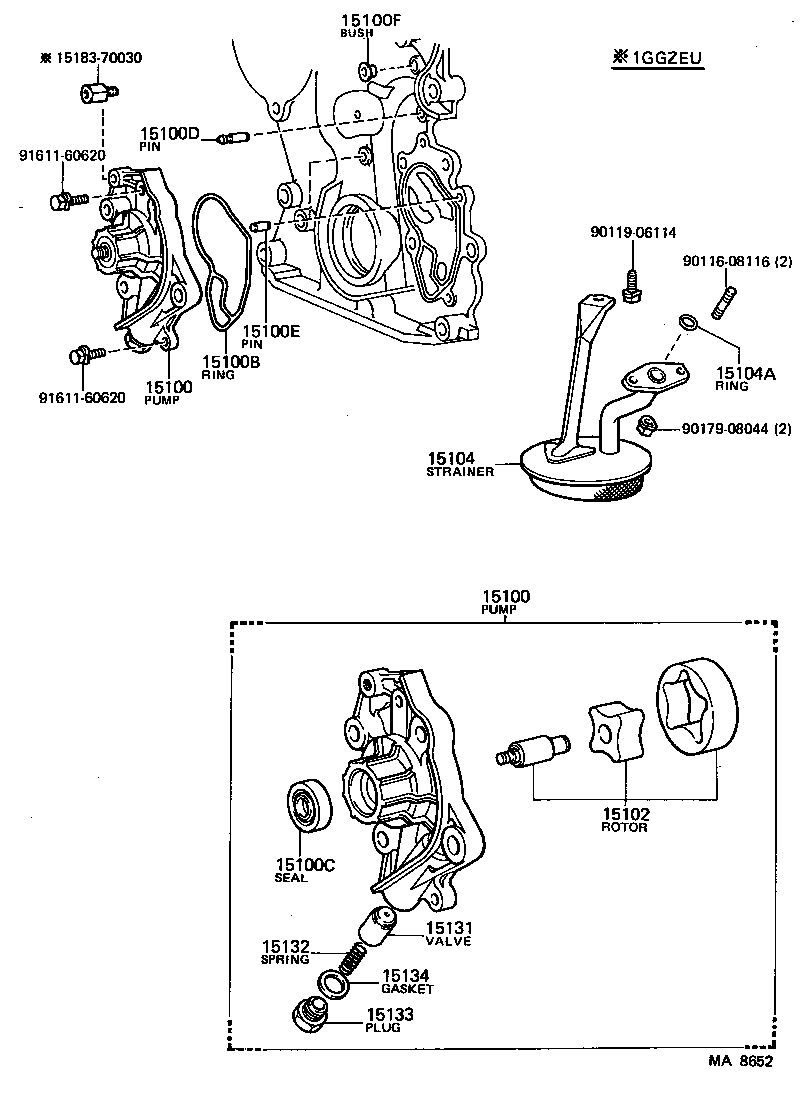

Click highlighted areas on diagram

diagram 15100 15100 15100B 15100C 15100D 15100E 15100F 15102 15104 15104A 15131 15132 15133 15134 1518370030 9011608116 9011906114 9017908044 9161160620 9161160620
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-70011

1GE#..GS120,126

 1
15100 - PUMP ASSY, OIL
15100-70011

1GE#..GS120,126

 1
15100B - RING, O(FOR OIL PUMP)
15188-70010

1GEU,1GG#,1GEJ..GS12#

 1
15100C - SEAL(FOR OIL PUMP)
15165-70010

1GEU,1GG#,1GEJ..GS12#

 1
15100D - PIN(FOR OIL PUMP SET)
15182-70010

1GEU,1GG#,1GEJ..GS12#

 1
15100E - PIN, STRAIGHT (FOR OIL PUMP SET)
15181-70010

1GEU,1GG#,1GEJ..GS12#

 2
15100F - BUSH (FOR OIL PUMP)
15186-70010

1GEU,1GG#,1GEJ..GS12#

 1
90029-38300

1GEU,1GG#,1GEJ..GS12#

 1
15102 - ROTOR SET, OIL PUMP
15102-70011

1GE#..GS120,126

 1
15104 - STRAINER SUB-ASSY, OIL
15104-70020

1GEU,1GG#,1GEJ..GS12#

 1
15104A - RING, O(FOR OIL STRAINER)
96732-19020

1GEU,1GG#,1GEJ..GS12#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1GEU,1GG#,1GEJ..GS12#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

1GEU,1GG#,1GEJ..GS12#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1GEU,1GG#,1GEJ..GS12#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

1GEU,1GG#,1GEJ..GS12#

 1
Common parts
15183-70030
90116-08116
90119-06114
90179-08044
91611-60620
