GS120-SESGE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

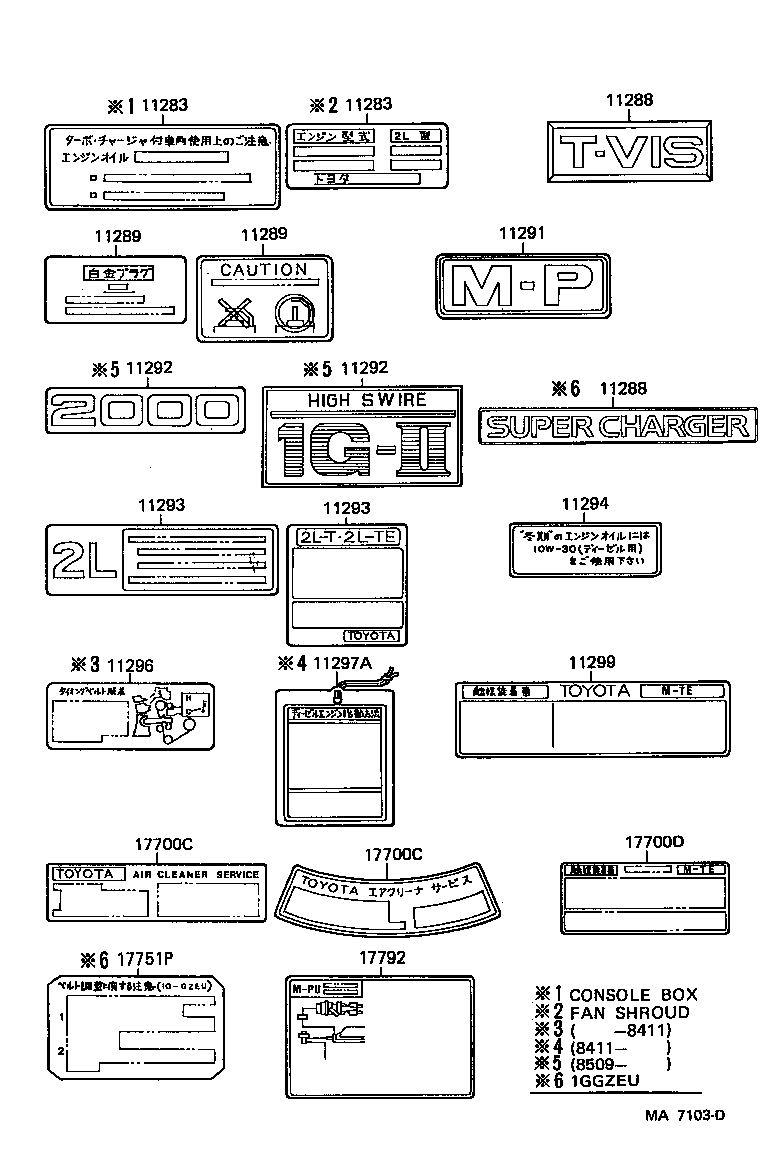

Click highlighted areas on diagram

diagram 11283 11283 11288 11288 11289 11289 11291 11292 11292 11293 11293 11294 11296 11297A 11299 17700C 17700C 17700D 17751P 17792
Part # Description Qty Price
11289 - PLATE, SPARK PLUG CAUTION
11289-13030

1GE#..GS120,126

 1
11289-70020

1GE#..GS120,126

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-13030

1GE#..GS120,126

 1
11289-70020

1GE#..GS120,126

 1
11291 - PLATE, ENGINE NAME
11291-70020

1GE#..GS120,126

1G-E

 1
11292 - PLATE, ENGINE NAME, NO.2
11292-70020

1GE#..GS120,126

 1
11292 - PLATE, ENGINE NAME, NO.2
11292-70020

1GE#..GS120,126

 1
17700D - PLATE, ENGINE CAUTION
11293-70060

1GEU..GS120

 1
11293-70100

1GEU..GS120

 1
11296-70030

1GEU..GS120

 1
