GS120-SESFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8308- )

Click highlighted areas on diagram

diagram 88820 88820A 88860
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-30260

LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H

 1
88820-30250

GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

 1
88820-30260

GS120,126..4H;GS120..5F..STD

 1
88820-30270

LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H

DASH TYPE

 1
88820-30270

GS120,126..4H;GS120..5F..STD

DASH TYPE

 1
88820-30290

GS120,126,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-30290

GS120,126..4H;GS120..5F..STD

 1
88830-30270

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)

 1
88830-30480

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
88830-30450

GS120,126..4H;GS120..5F..STD

 1
88830-30340

GS120,126..4H;GS120..5F..STD

DASH TYPE

 1
88830-30520

GS120,126..4H;GS120..5F..STD

DASH TYPE

 1
88830-30500

GS120..4H;GS120..5F..STD

 1
88860 - ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER
88860-30250

GS120,LS120..SED..SDX

 1
88860-30251

GS120,LS120..SED..SDX

 1
88860-30270

GS120,LS120..SED..SDX

 1

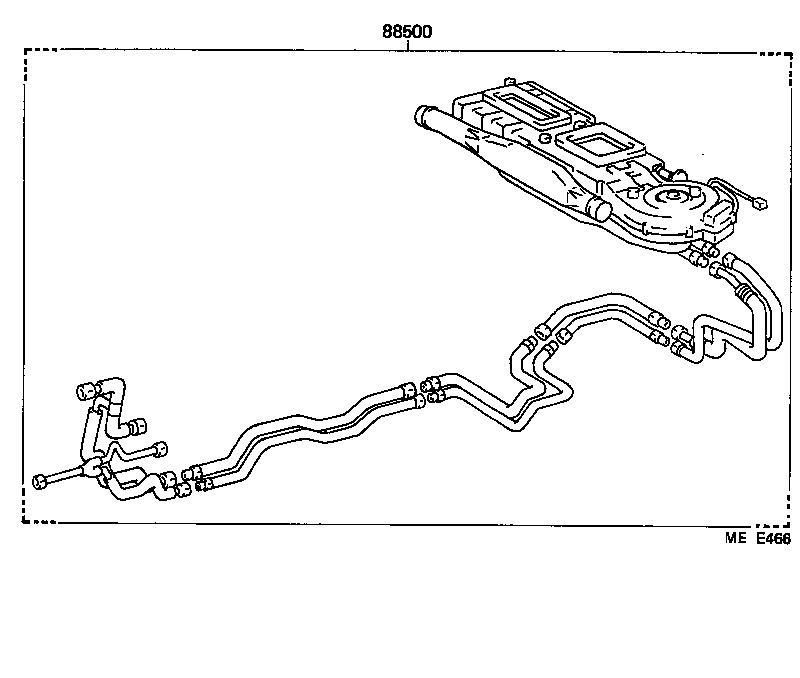

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 88500
Part # Description Qty Price
88500 - COOLER AND ACCESSORY ASSY, REAR
88500-30800

GS120..HT..4HC;GS120..4HC..SDX

AIR OUTLET = CENTER

 1
88500-30670

GS120..HT..4HC;GS120..4HC..SDX

AIR OUTLET = CENTER

 1
