GS120-SESFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS120,126..4H

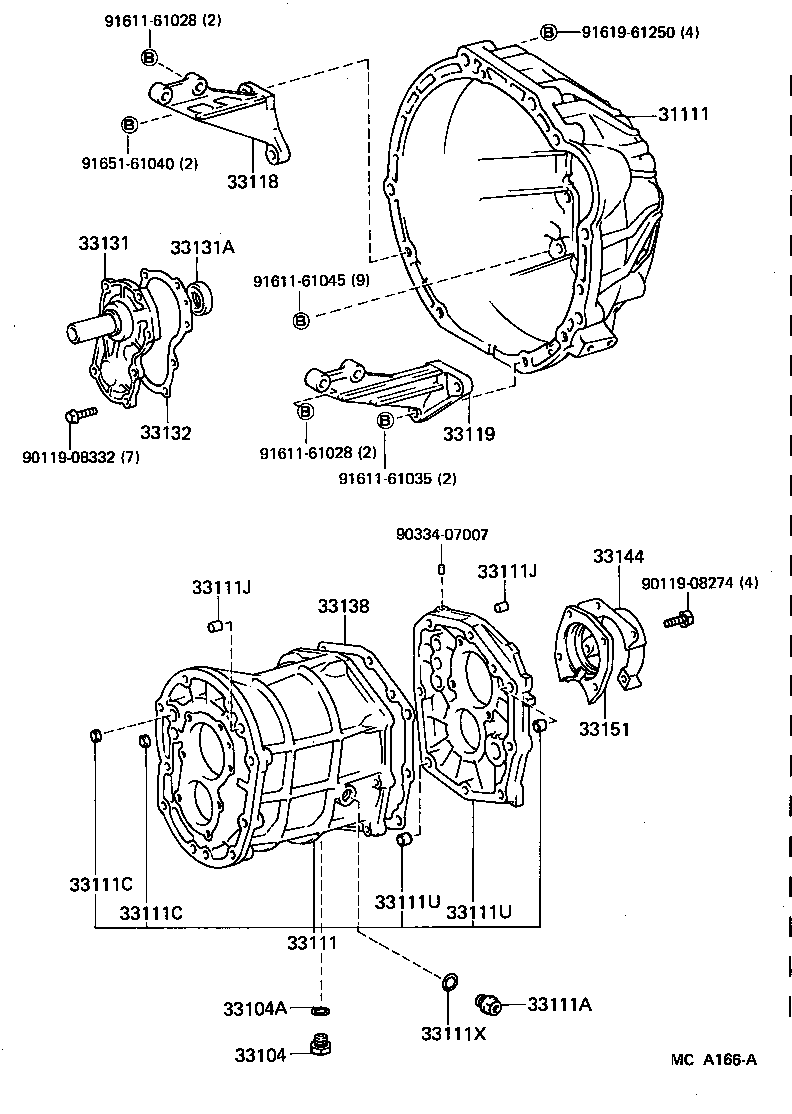

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111C 33111J 33111J 33111U 33111U 33111X 33118 33119 33131 33131A 33132 33138 33144 33151 9011908274 9011908332 9033407007 9161161028 9161161028 9161161035 9161161045 9161961250 9165161040
Part # Description Qty Price
33111 - CASE, MANUAL TRANSMISSION
33101-30061

GS120,126,LS12#,MS120,YS120..4H

 1
33101-30050

GS120,126,LS12#,MS120,YS120..4H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

GS120,126,LS12#,MS120,YS120..4H

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

GS120,126,LS12#,MS120,YS120..4H

長さ=14,外径=15

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

GS120,126,LS12#,MS120,YS120..4H

長さ=14,外径=15

 2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30050

GS120,126,LS12#,MS120,YS120..4H

 1
33131-30061

GS120,126,LS12#,MS120,YS120..4H

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-30050

GS120,126,LS12#,MS120,YS120..4H

 1
33132-30060

GS120,126,LS12#,MS120,YS120..4H

 1
33138 - GASKET, INTERMEDIATE PLATE
33138-30010

GS120,126,LS12#,MS120,YS120..4H

 1
33144 - DEFLECTOR, EXTENSION HOUSING OIL(MTM)
33144-30022

GS120,126,LS12#,MS120,YS120..4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30040

GS120,126,LS12#,MS120,YS120..4H

 1
Common parts
90119-08274
90119-08332
90334-07007
91611-61028
91611-61035
91611-61045
91619-61250
91651-61040
