GS120-SEPGE (1983)
Toyota Crown
ILLUST NO. 1 OF 2(8308-8509)GS12#,MS120,YS120..EFI,LPG,TWC ; (8509- )GS120,126,MS120,YS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30480 |
GS120..(HT,SED)..SAL JKC |
1 | ||
| 04443-30440 |
GS120,126,MS120,YS120 AISIN,FR DISC BRAKE |
1 | ||
| 04443-30330 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44608-32020 |
GS120,YS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 44606-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30520 |
GS120..(HT,SED)..SAL JKC |
1 | ||
| 44610-30510 |
GS120,126,MS120,YS120 AISIN,FR DISC BRAKE |
1 | ||
| 44610-30400 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 44621-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC AISIN |
1 | ||
| 44628-28120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44642-32030 |
GS120,126,MS120,YS120 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44635-28120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 90480-24517 |
GS121,YS120..ROY,SSL,STD;GS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 90480-24439 |
GS12#,MS12#,YS120 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-30030 |
GS120,YS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 44730-20030 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44730-30040 |
GS120,126,MS120,YS120 AISIN |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30070 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44758-30070 |
GS120,126,MS120,YS120 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||

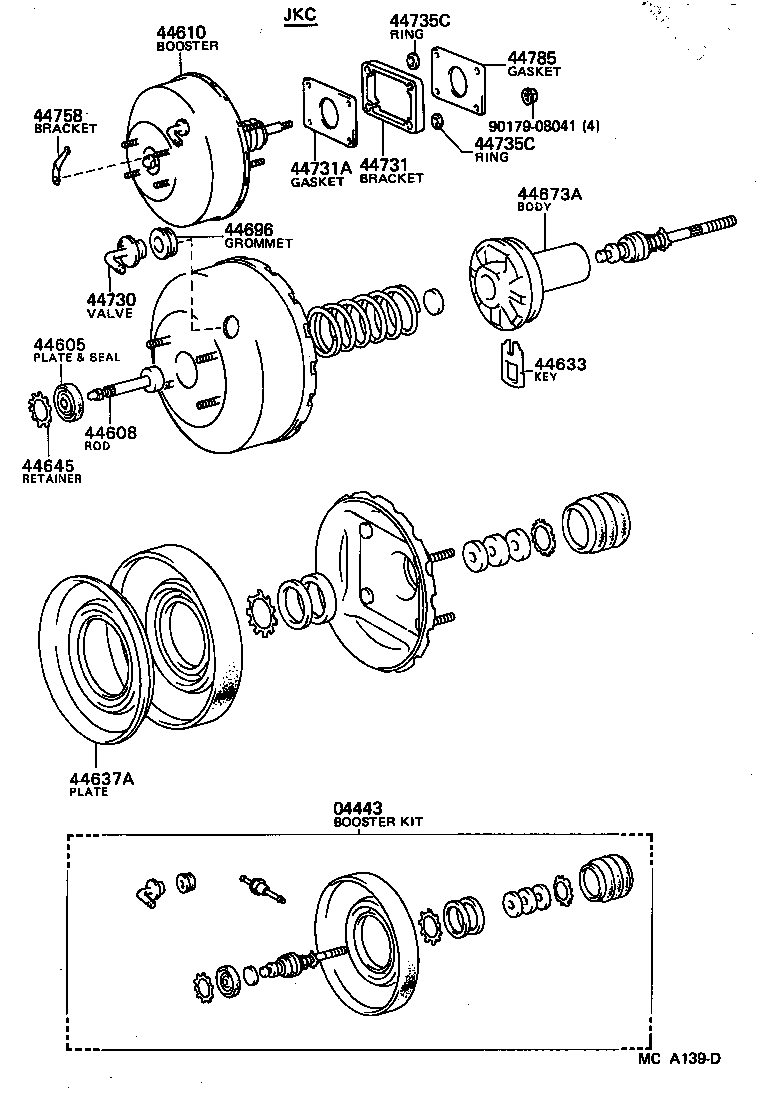

ILLUST NO. 1 OF 2(8308- )GS120,YS120..STD ; (8509- )GS120..HT,SED..SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30480 |
GS120..(HT,SED)..SAL JKC |
1 | ||
| 04443-30440 |
GS120,126,MS120,YS120 AISIN,FR DISC BRAKE |
1 | ||
| 04443-30330 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
GS120,YS120..(HT,SED)..(SAL,STD) |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44608-32020 |
GS120,YS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 44606-32010 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30520 |
GS120..(HT,SED)..SAL JKC |
1 | ||
| 44610-30510 |
GS120,126,MS120,YS120 AISIN,FR DISC BRAKE |
1 | ||
| 44610-30400 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
GS120,YS120..(HT,SED)..(SAL,STD) |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
GS120..(HT,SED)..SAL |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
GS120,YS120..(HT,SED)..(SAL,STD) |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32040 |
GS120..(HT,SED)..SAL |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 90480-24517 |
GS121,YS120..ROY,SSL,STD;GS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 90480-24439 |
GS12#,MS12#,YS120 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-30030 |
GS120,YS120..(HT,SED)..(SAL,STD) JKC |
1 | ||
| 44730-20030 |
GS12#,MS120,YS120..EFI,LPG,TWC FR DISC BRAKE |
1 | ||
| 44730-30040 |
GS120,126,MS120,YS120 AISIN |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30070 |
GS12#,MS120,YS120..EFI,LPG,TWC |
1 | ||
| 44758-30070 |
GS120,126,MS120,YS120 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
ILLUST NO. 2 OF 2(8308- )GS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL) |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-30330 |
GS120,126 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
YS120;GS120,126,LS12#,MS120..DSL,EFI,TBO,TD,TDE |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
YS120;GS120,126,LS12#,MS120..DSL,EFI,TBO,TD,TDE |
2 | ||
| Common parts | ||||
| 91655-40616 | ||||
