GS120-SEPGE (1983)
Toyota Crown
(8308-8408)TDE ; (8308- )GS120,121,LS12#,MS120..ATM..DSL,EFI,LPG,TBO,TWC ; (8312

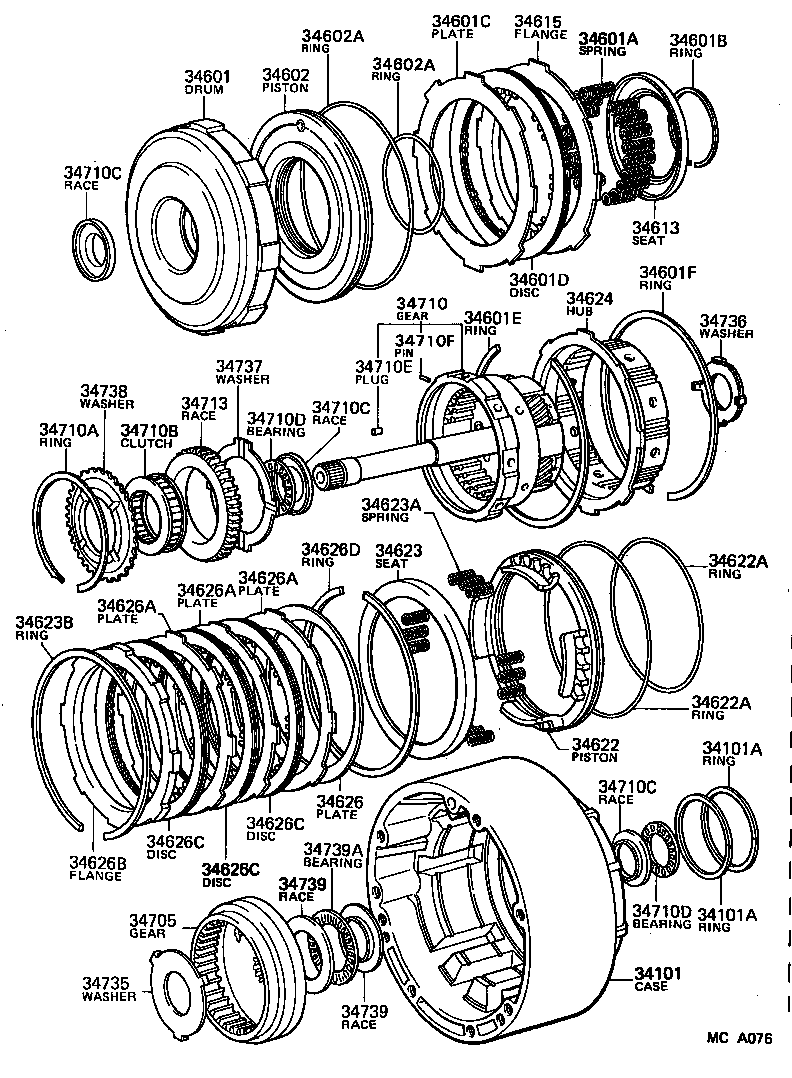

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-30062 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-16010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
2 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-16010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
2 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30022 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-11023 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
18 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30070 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 35634-30070 |
GS120,121,LS12#,MS120..ATM |
1 | ||
| 35634-30070 |
GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TBO,TWC) |
1 | ||
| 35634-30070 |
GS120,LS12#,MS120..ATM |
1 | ||
| 34618-30010 |
GS120,121,MS120..ATM..(EFI,TBO,TWC) |
1 | ||
| 34618-30010 |
GS120,121,LS120..ATM..(EFI,TDE,TWC) |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30030 |
GS120,121,LS12#,MS120..ATM |
1 | ||
| 35677-30030 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 35677-30030 |
GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TBO,TWC) |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30011 |
GS120,121,LS12#,MS120,123..ATM |
1 | ||
| 34602-30011 |
GS120,LS12#,MS120..ATM |
1 | ||
| 34602-30030 |
GS120,121..ATM..(EFI,TWC) |
1 | ||
| 34602-30030 |
GS120,121,MS120..ATM..(EFI,TBO,TWC) |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) ID=117.6,OD=123.8 |
1 | ||
| 90301-57188 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) ID=56.8,OD=59.4 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) ID=117.6,OD=123.8 |
1 | ||
| 90301-57188 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) ID=56.8,OD=59.4 |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-30010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30010 |
GS120,121,LS12#,MS120..ATM 厚さ=4.0 |
1 | ||
| 34615-30010 |
GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TBO,TWC) 厚さ=4.0 |
1 | ||
| 34615-30010 |
GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TBO) 厚さ=4.0 |
1 | ||
| 34615-30010 |
GS120,121,LS12#,MS12#..ATM 厚さ=4.0 |
1 | ||
| 35675-22010 |
GS120,121,MS120..ATM..(EFI,TBO,TWC) 厚さ=4.0 |
1 | ||
| 35675-22010 |
GS120,121..ATM..(EFI,TWC) 厚さ=4.0 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30020 |
GS120,LS120..ATM..(EFI,TDE) |
1 | ||
| 34622-30020 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34622-30040 |
GS120,121,LS120..ATM..(EFI,TDE,TWC) |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99009 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) OUTER |
1 | ||
| 90301-99008 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) INNER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99009 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) OUTER |
1 | ||
| 90301-99008 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) INNER |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-10671 |
GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE) |
16 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-30030 |
GS120,121,LS120,MS12#..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34624-30030 |
GS120,121,LS120,MS120..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34624-26010 |
GS120,121,LS120,MS12#..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34624-32010 |
GS120,121,LS120,MS120..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) T=2.0 |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) T=2.0 |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) T=2.0 |
3 | ||
| 34626B - FLANGE, REAR CLUTCH (FOR OVERDRIVE) | ||||
| 34625-26010 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
3 | ||
| 34626D - RING, HOLE SNAP (FOR OVERDRIVE) | ||||
| 90521-99004 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30021 |
GS120,121,LS120..ATM..(EFI,TDE,TWC) |
1 | ||
| 34705-30020 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-14011 |
GS120,121,MS120,123..ATM..(EFI,TBO,TWC) |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34710B - CLUTCH, 1WAY, NO.1(FOR OVERDRIVE) | ||||
| 35791-30030 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) CTR |
1 | ||
| 35789-22010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 34739-30041 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) FR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) CTR |
1 | ||
| 35789-22010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 34739-30041 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) FR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) CTR |
1 | ||
| 35789-22010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 34739-30041 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) FR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 90374-24001 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) CTR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 90374-24001 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) CTR |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
4 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 34735-30020 |
GS120,121,LS120..ATM..(EFI,TDE,TWC) |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC) |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 34739-30020 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) FR |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) RR |
1 | ||
| 34739-30020 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) FR |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
