GS120-SEPGE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1GEU,MTEU

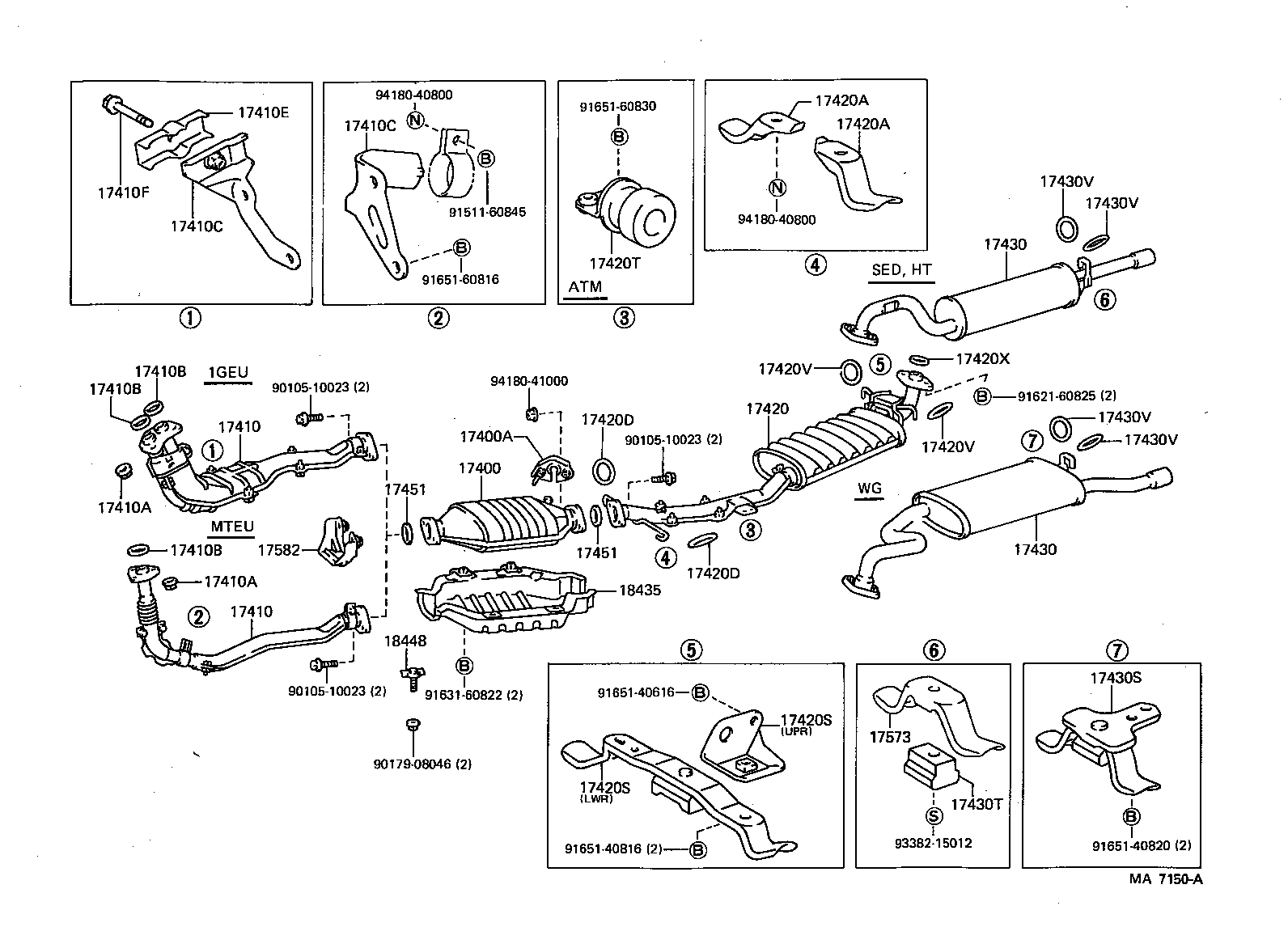

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410E 17410F 17420 17420A 17420A 17420D 17420D 17420S 17420S 17420T 17420V 17420V 17420X 17430 17430 17430S 17430T 17430V 17430V 17430V 17430V 17451 17451 17573 17582 18435 18448 9010510023 9010510023 9010510023 9017908046 9151160845 9162160825 9163160822 9165140616 9165140816 9165140820 9165160816 9165160830 9338215012 9418040800 9418040800 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-70030

1GEU..GS120

 1
18450-70050

1GEU,1GGEU..GS120,121

 1
17400A - FLANGE, THERMOSENSER INLET
18491-63010

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70080

1GEU,1GGEU,5MGEU,6MGEU..GS120,121,MS123,125

 1
17410-70081

1GEU,1GGEU,6MGEU..GS120,121,MS125

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70080

1GEU,1GGEU,5MGEU,6MGEU..GS120,121,MS123,125

 1
17410-70081

1GEU,1GGEU,6MGEU..GS120,121,MS125

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,6MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 3
90179-10028

1G#,2L,2LT#,5MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,6MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 3
90179-10028

1G#,2L,2LT#,5MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1GEU,1GG#,1GEJ,2L,5MGEU,6MGEU,MPU,3YPU..GS12#,LS12#,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

1GEU,1GG#,1GEJ,2L,5MGEU,6MGEU,MPU,3YPU..GS12#,LS12#,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

1GEU,1GG#,1GEJ,2L,5MGEU,6MGEU,MPU,3YPU..GS12#,LS12#,MS12#,YS120

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-70030

1GEU,1GG#,1GEJ..GS12#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-70030

1GEU,1GG#,1GEJ..GS12#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU..GS12#,MS12#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10019

1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU..GS12#,MS12#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-41170

1GEU,MTEU..GS120,MS120

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-54100

1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU..GS12#,MS12#

 2
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-54100

1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU..GS12#,MS12#

 2
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
90301-34207

1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU..GS12#,MS12#

 2
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
90301-34207

1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU..GS12#,MS12#

 2
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17505-45040

1GEU,MPU,MTEU,3YPU..GS120,MS120,YS120

LWR

 1
17575-41020

1GEU,MPU,MTEU,3YPU..GS120,MS120,YS120

UPR

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17505-45040

1GEU,MPU,MTEU,3YPU..GS120,MS120,YS120

LWR

 1
17575-41020

1GEU,MPU,MTEU,3YPU..GS120,MS120,YS120

UPR

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17581-43010

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#..ATM

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-45010

1GE#,MPU,MTEU,3YPU..GS120,126,MS120,YS120

 2
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-45010

1GE#,MPU,MTEU,3YPU..GS120,126,MS120,YS120

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

1GEU,1GG#,5MGEU,6MGEU,MPU,MTEU,3YPU..GS120,121,MS12#,YS120

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-73020

1GEU,MPU,MTEU,3YPU..GS120,MS120,YS120..HT,SED

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-73020

1GEU,MPU,MTEU,3YPU..GS120,MS120,YS120..HT,SED

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

1GEU,1GG#,2L,2LT#,5MGEU,6MGEU,MPU,MTEU,3YPU..GS120,121,LS120,MS12#,YS120..HT,SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,MPU,MTEU,3YPU..GS12#,LS12#,MS120,123,YS120

 2
90301-34207

1GEU,2L,2LT#,MPU..GS120,LS12#,MS120

 2
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,6MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,MPU,MTEU,3YPU..GS12#,LS12#,MS120,123,YS120

 2
90301-34207

1GEU,2L,2LT#,MPU..GS120,LS12#,MS120

 2
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,6MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,MPU,MTEU,3YPU..GS12#,LS12#,MS120,123,YS120

 2
90301-34207

1GEU,2L,2LT#,MPU..GS120,LS12#,MS120

 2
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,6MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,MPU,MTEU,3YPU..GS12#,LS12#,MS120,123,YS120

 2
90301-34207

1GEU,2L,2LT#,MPU..GS120,LS12#,MS120

 2
90301-34207

1GEU,1GG#,1GEJ,2L,2LT#,5MGEU,6MGEU,MPU,MTEU..GS12#,LS12#,MS12#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

RR

 1
90917-06023

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

RR

 1
90917-06023

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

FR

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-41040

1GEU,1GG#,2L,2LT#,5MGEU,6MGEU,MPU,MTEU,3YPU..GS120,121,LS120,MS12#,YS120..HT,SED

 1
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-41030

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-28011

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

 1
18407-70020

1GEU,1GG#,6MGEU..GS120,121,MS125

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1GEU,1GG#,5MGEU,6MGEU,MTEU..GS120,121,MS12#

 2
Common parts
90105-10023
90179-08046
91511-60845
91621-60825
91631-60822
91651-40616
91651-40816
91651-40820
91651-60816
91651-60830
93382-15012
94180-40800
94180-41000
