GS120-SEPDE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS120,121,LS12#,MS120,123..ATM..DSL,EFI,LPG,TBO,TDE,TWC

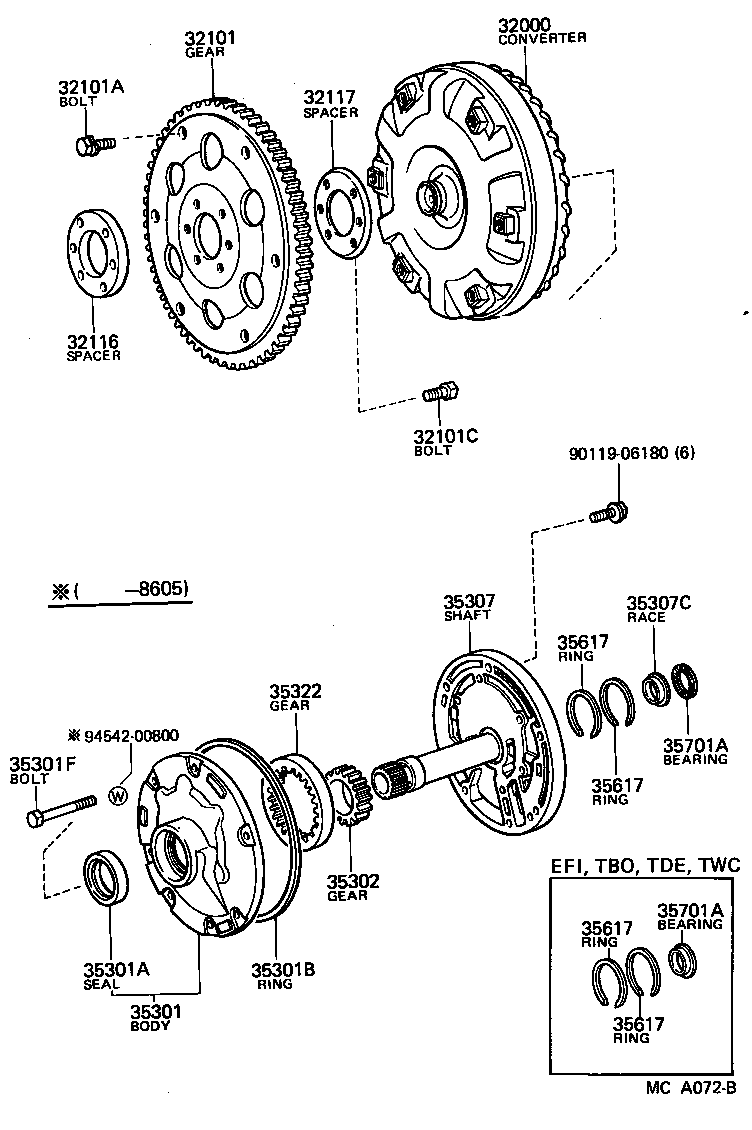

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35302 35307 35307C 35322 35617 35617 35617 35617 35701A 35701A 9011906180 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-24011

GS120,121..ATM..(EFI,TWC)

 1
32000-24010

GS120,121..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-14030

GS120..ATM

 1
32101-22030

GS120,121..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
91611-60812

GS120,121,LS12#,MS12#..ATM

*8−1.25PX12−7,YELLOW

 5
90119-08498

GS120,121,LS12#,MS12#..ATM

*8−1.25PX12−8,BLACK

 5
90109-08107

GS120,121,LS12#,MS12#..ATM

*8−1.25PX12−8.4,OLIVE GREEN

 1
90109-08113

GS120,121,LS12#,MS12#..ATM

*8−1.25PX12−8.4,OLIVE GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10046

GS120,121..ATM

*10−1.25PX23−15.5

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14011

GS120,121..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-14011

GS120,121..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-14010

GS120,121,MS120,123..ATM..(EFI,TBO,TWC)

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
90311-38129

GS120,121,LS12#,MS12#..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90101-08042

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 7
90105-08137

GS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE,TWC)

 7
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-14010

GS120,121,MS120,123..ATM..(EFI,TBO,TWC)

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-14011

GS120,121,MS120,123..ATM..(EFI,TBO,TWC)

 1
35370-14012

GS120,121,MS120..ATM..(EFI,TBO,TWC)

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-14010

GS120,121,MS120,123..ATM..(EFI,TBO,TWC)

厚さ=17.286−17.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)

 1
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

GS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)

 1
Common parts
90119-06180
94542-00800
