GS120-SEMRE (1983)
Toyota Crown

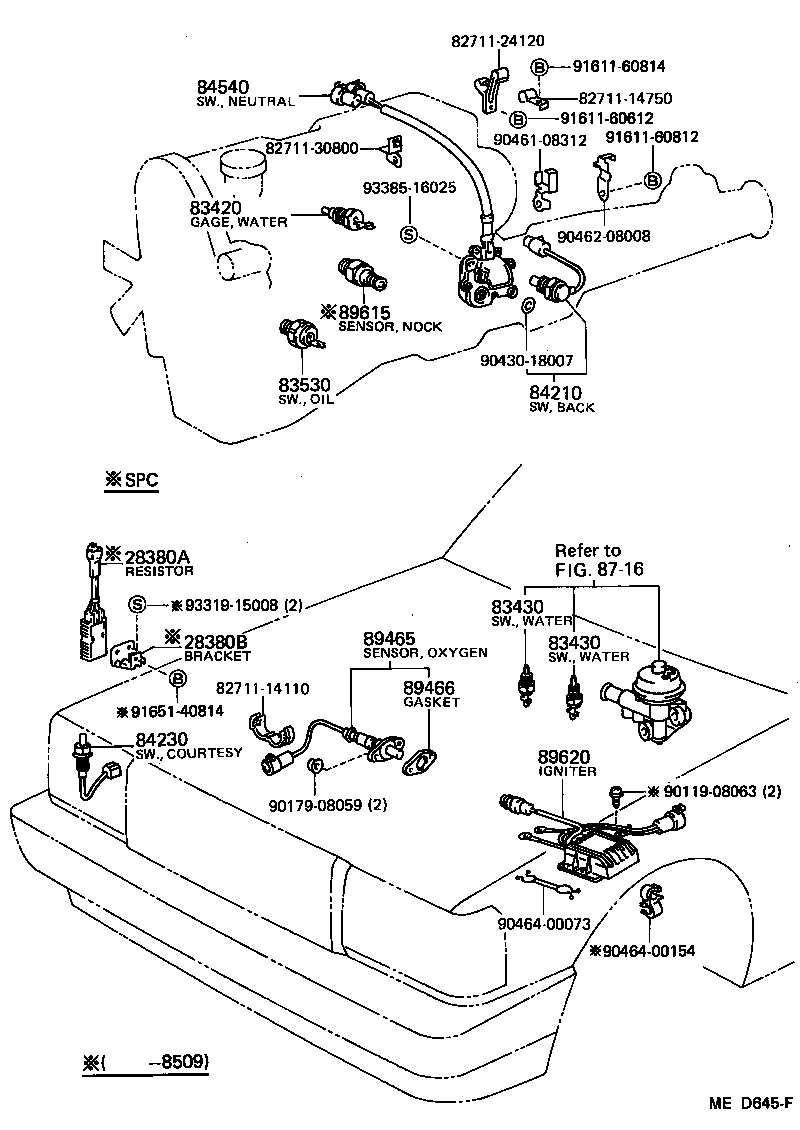

ILLUST NO. 1 OF 9(8308- )GS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30042 |
GS12# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
GS12#,LS12#,MS120,YS120..MTM |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 84231-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 84231-30030 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19075 |
GS120,126 |
1 | ||
| 89465-19075 |
GS12#..EFI,TWC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
GS12#..EFI,TWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30210 |
GS120,121,MS123,125..EFI,TWC |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-14750 | ||||
| 82711-24120 | ||||
| 82711-30800 | ||||
| 90119-08063 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 90464-00073 | ||||
| 90464-00154 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40814 | ||||
| 93319-15008 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8716 | ||||

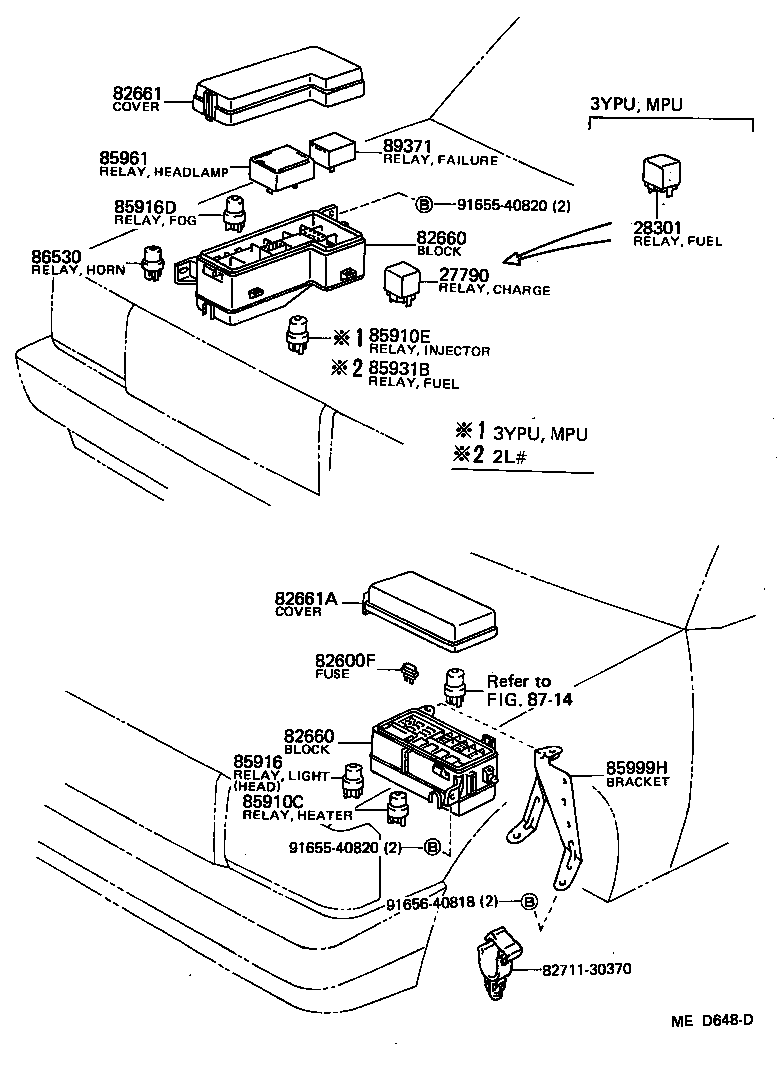

ILLUST NO. 2 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS12#,LS12#,MS12#,YS120 20A,黄,20A |
1 | ||
| 90982-09003 |
GS12#,LS12#,MS12#,YS120 15A,15A |
1 | ||
| 90982-09005 |
GS12#,LS12#,MS12#,YS120 7.5A,7.5A |
1 | ||
| 90982-09002 |
GS12#,LS12#,MS12#,YS120 10A,10A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-30031 |
GS12#,LS12#,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30030 |
GS12#,LS12#,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30040 |
GS12#,LS12#,MS12#,YS120 LH FENDER |
1 | ||
| 82660-30041 |
GS12#,LS12#,MS12#,YS120 LH FENDER |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-30031 |
GS12#,LS12#,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30030 |
GS12#,LS12#,MS12#,YS120 RH FENDER |
1 | ||
| 82660-30040 |
GS12#,LS12#,MS12#,YS120 LH FENDER |
1 | ||
| 82660-30041 |
GS12#,LS12#,MS12#,YS120 LH FENDER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30180 |
GS12#,MS123 |
1 | ||
| 82661-30121 |
GS12#..EFI,SPC |
1 | ||
| 82661-30180 |
GS120,MS125 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-30270 |
GS120,126 |
1 | ||
| 82661-30130 |
GS12#,MS12#,YS120 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS12#,LS12#,MS12#,YS120 HEAD |
1 | ||
| 90987-04002 |
GS12#,LS12#,MS12#,YS120 HEAD |
1 | ||
| 90987-01003 |
GS12#,LS12#,MS12#,YS120 TAIL |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-30190 |
GS126,LS126;GS120,LS120,YS120..STD |
1 | ||
| 89371-30211 |
GS126,LS126;GS120,LS120,YS120..STD |
1 | ||
| Common parts | ||||
| 82711-30370 | ||||
| 91655-40820 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 8714 | ||||

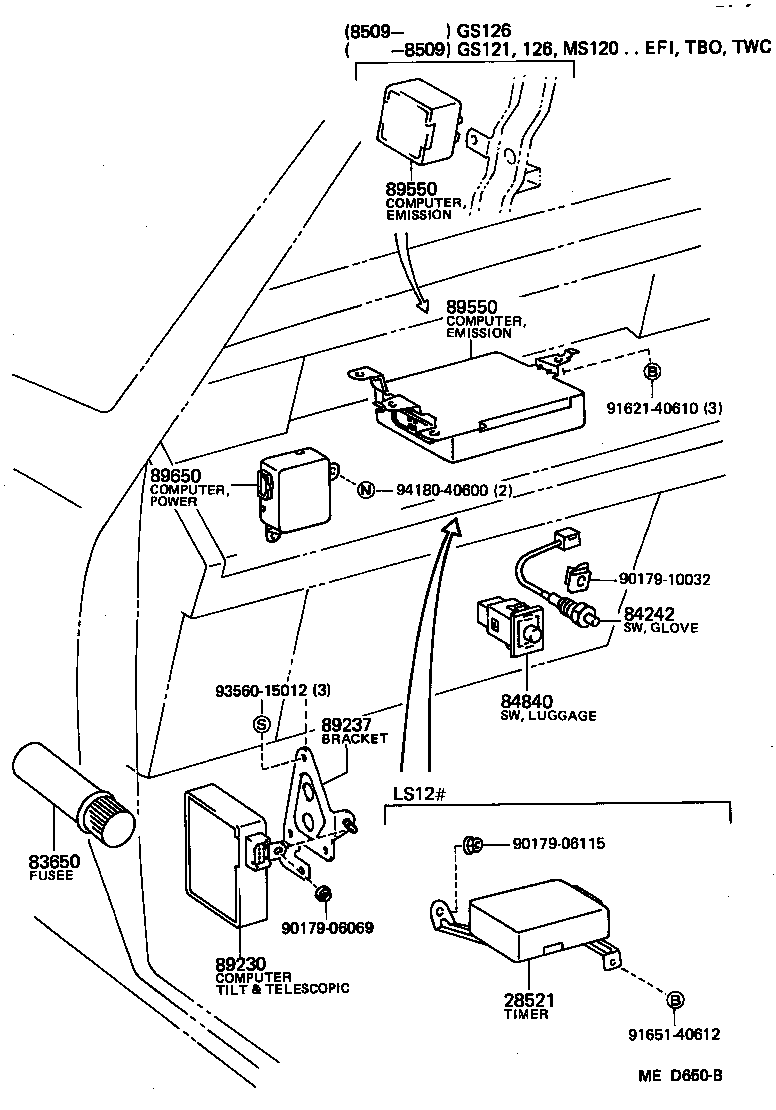

ILLUST NO. 4 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01003 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30060 |
GS120,121,LS120,MS12#..(HT,SED)..(DSL,EFI,TBO,TD,TDE,TWC) GLOVE COMPARTMENT |
1 | ||
| 84840-3008005 |
GS120,LS120..DLX,STD FR DOOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 84840-3008004 |
GS120,LS120..DLX,STD FR DOOR,BLUE,BEIGE,TRIM8# |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90179-06115 | ||||
| 90179-10032 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 93560-15012 | ||||
| 94180-40600 | ||||

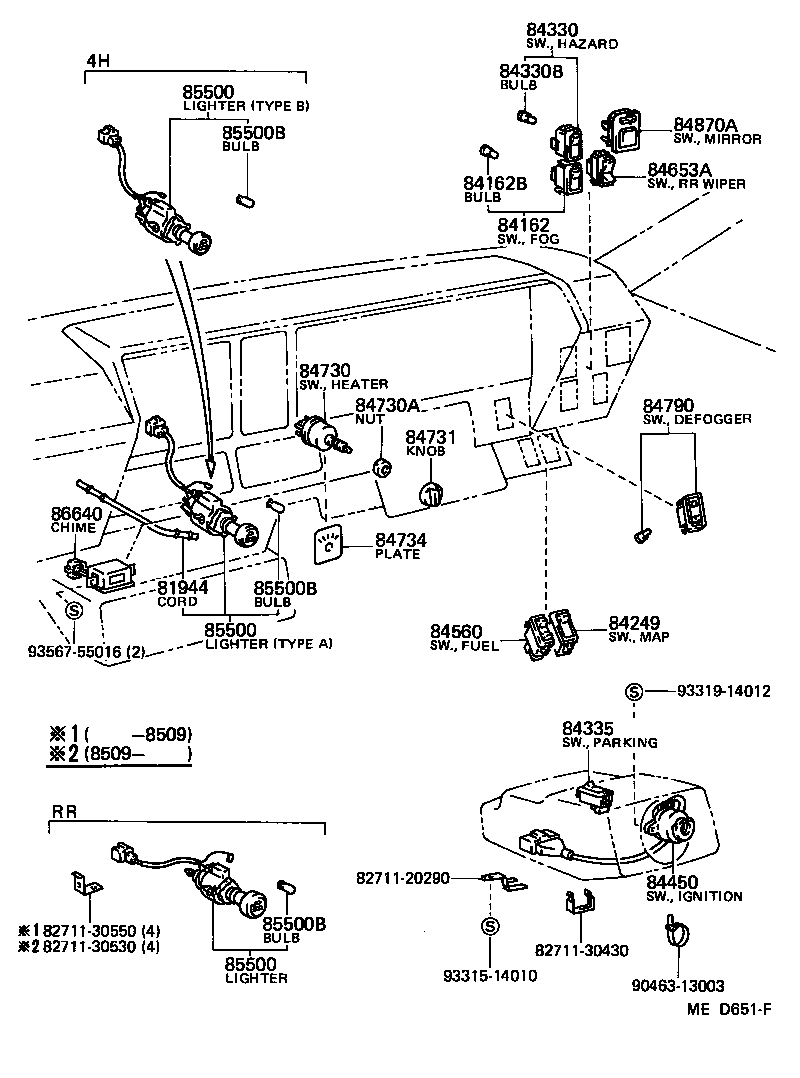

ILLUST NO. 5 OF 9(8308- )LPG ; (8308- )LS120..STD ; (8308-)GS120..5F..STD ; (8308- )LS1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30140 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10110 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H 12V 1.12W,12V 1.12W |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-30100 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10090 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30160 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
1 | ||
| 84732-30190 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H W/COOLER |
1 | ||
| 84732-30200 |
LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H |
1 | ||
| 84732-30210 |
LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H W/COOLER |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H W/COOLER |
1 | ||
| 84731-20030 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
1 | ||
| 84734 - PLATE, HEATER BLOWER SWITCH CAUTION | ||||
| 55523-30050 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
1 | ||
| 81942-30050 |
LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H W/COOLER |
1 | ||
| 81942-30020 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H W/COOLER |
1 | ||
| 55523-30070 |
LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30160 |
GS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30311 |
GS12#,LS12#,MS12#,YS120..4FC,5F RR |
1 | ||
| 85500-30350 |
GS120,126,LS12#,YS120..STD FR |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30311 |
GS12#,LS12#,MS12#,YS120..4FC,5F RR |
1 | ||
| 85500-30350 |
GS120,126,LS12#,YS120..STD FR |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30311 |
GS12#,LS12#,MS12#,YS120..4FC,5F RR |
1 | ||
| 85500-30350 |
GS120,126,LS12#,YS120..STD FR |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-30060 |
LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-30430 | ||||
| 82711-30530 | ||||
| 82711-30550 | ||||
| 90463-13003 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93567-55016 | ||||

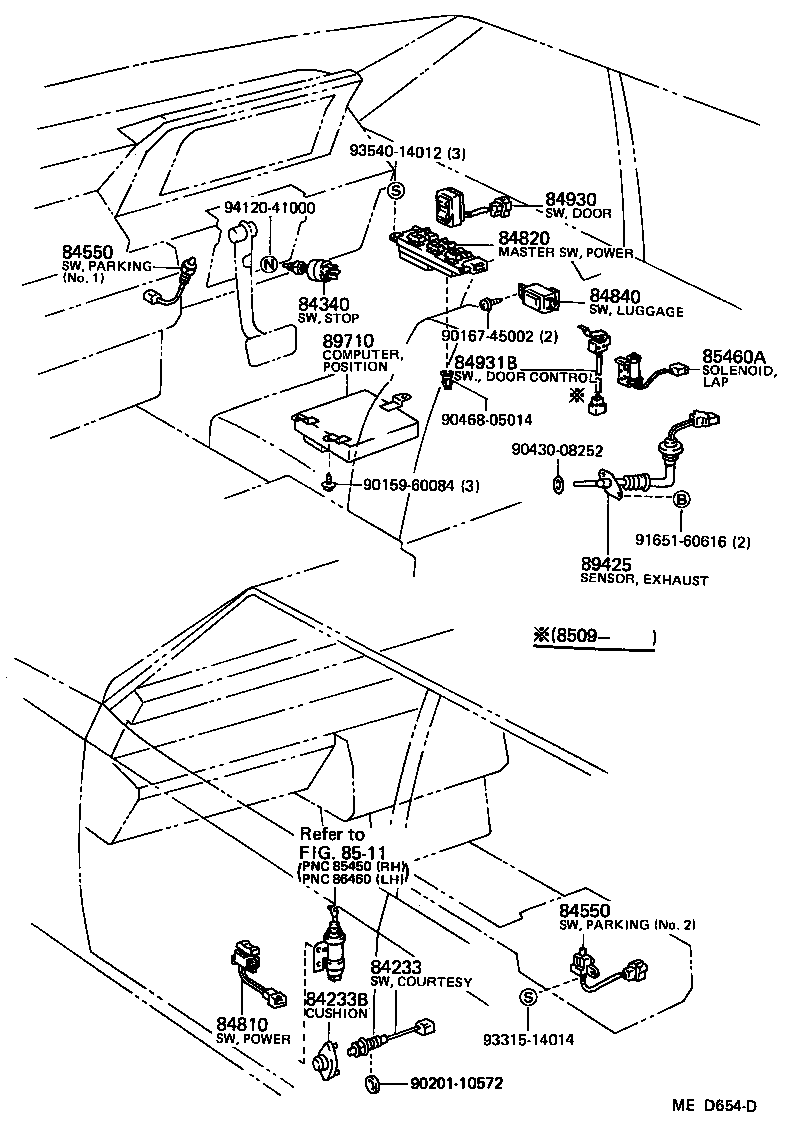

ILLUST NO. 7 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 84230-30100 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
GS12#,LS12#,MS12#,YS120 TOKAIRIKA |
1 | ||
| 84340-30030 |
GS12#,LS12#,MS120,YS120 MATSUSHITA |
1 | ||
| 84340-30030 |
GS12#,LS12#,MS12#,YS120 MATSUSHITA |
1 | ||
| 84340-32010 |
GS12#,LS12#,MS120,YS120 TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
LS126..DLX;GS12#,LS120,YS120..5F NO.2 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
LS126..DLX;GS12#,LS120,YS120..5F NO.2 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30060 |
GS120,121,LS120,MS12#..(HT,SED)..(DSL,EFI,TBO,TD,TDE,TWC) GLOVE COMPARTMENT |
1 | ||
| 84840-3008005 |
GS120,LS120..DLX,STD FR DOOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 84840-3008004 |
GS120,LS120..DLX,STD FR DOOR,BLUE,BEIGE,TRIM8# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39135 |
GS120,121,MS12#..EFI,SPC,TBO,TWC |
1 | ||
| Common parts | ||||
| 90159-60084 | ||||
| 90167-45002 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 90468-05014 | ||||
| 91651-60616 | ||||
| 93315-14014 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||

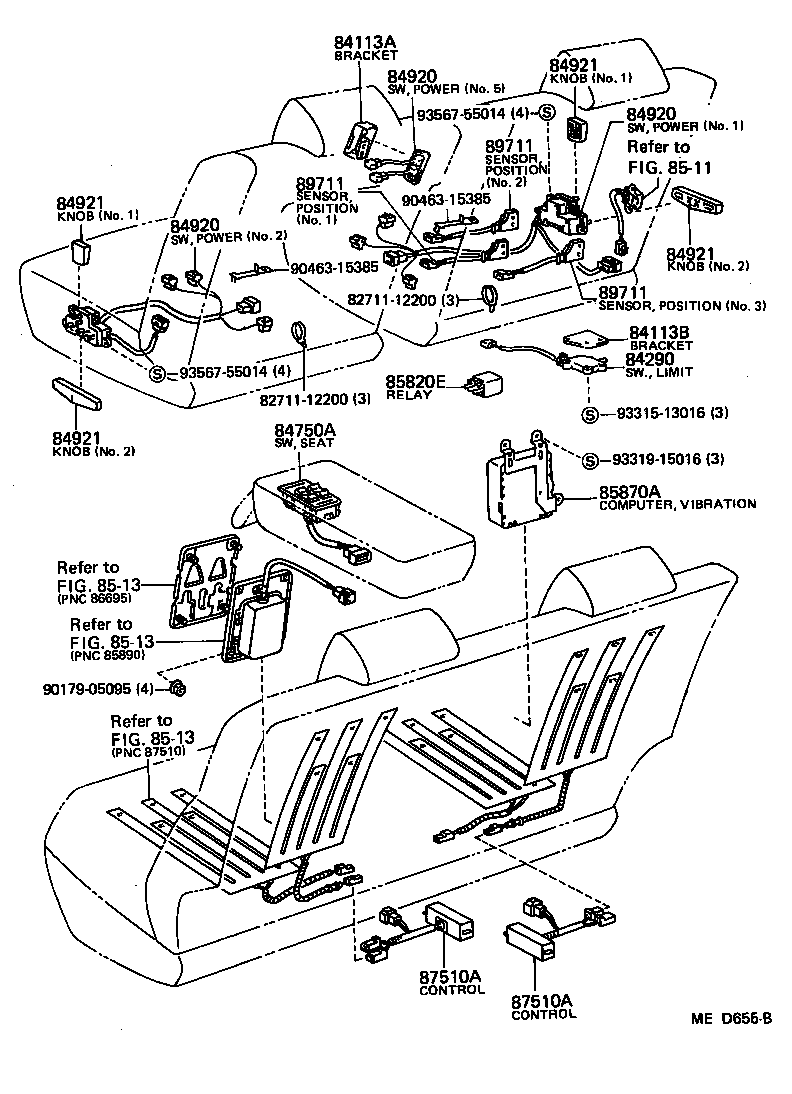

ILLUST NO. 8 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90179-05095 | ||||
| 90463-15385 | ||||
| 93315-13016 | ||||
| 93319-15016 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8511 | ||||
| 8513 | ||||

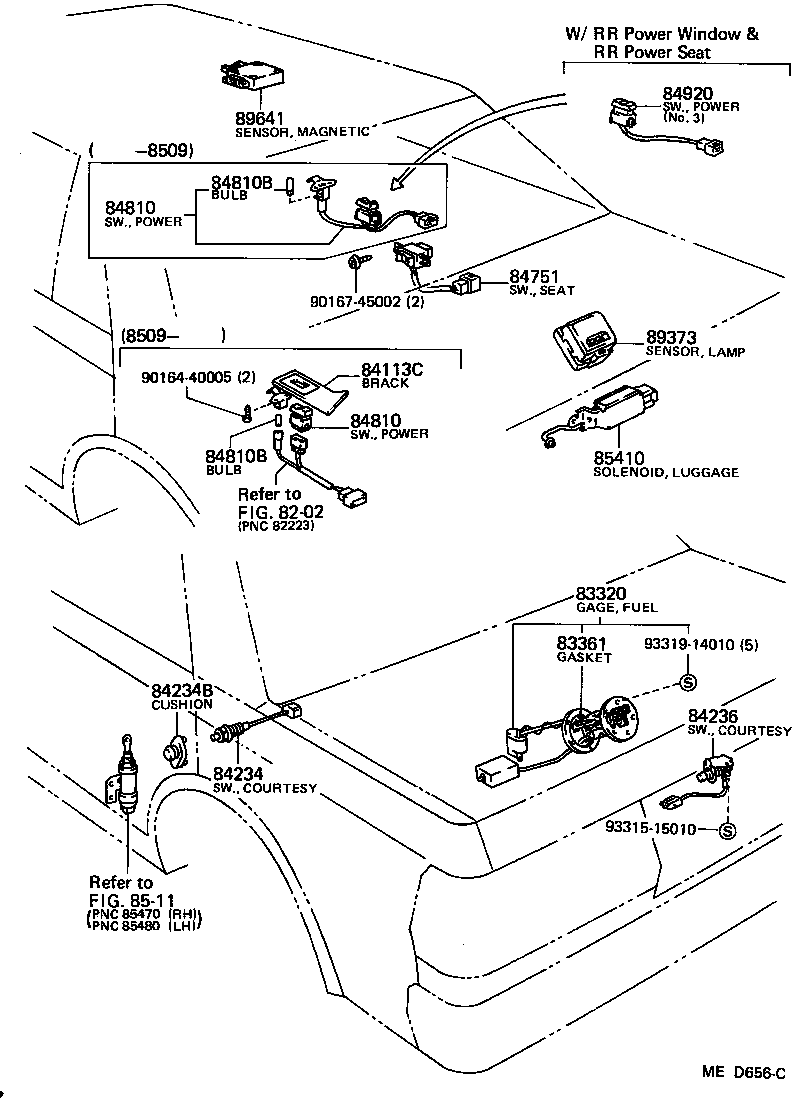

ILLUST NO. 9 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39225 |
GS120,MS120..(HT,SED)..(EFI,TBO) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS12#,LS12#,MS12#..DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77169-14020 |
GS120,121,LS120,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22051 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-30060 |
GS120,121,LS120,MS12#..(HT,SED)..(DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30060 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| Common parts | ||||
| 90164-40005 | ||||
| 90167-45002 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||

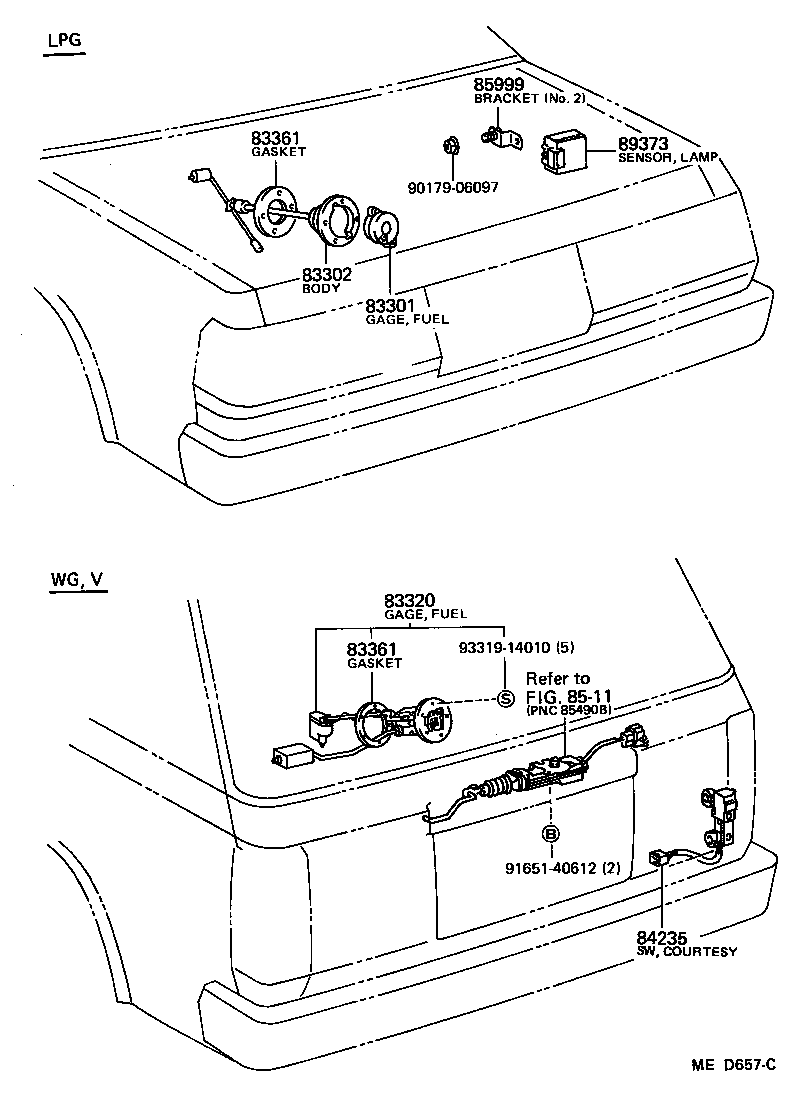

ILLUST NO. 8 OF 8(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39225 |
GS120,MS120..(HT,SED)..(EFI,TBO) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS12#,LS12#,MS12#..DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77169-14020 |
GS120,121,LS120,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS12#,LS12#,MS12#..DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77169-14020 |
GS120,121,LS120,MS12#..DSL,EFI,SPC,TBO,TD,TDE,TWC |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30190 |
GS12#,LS12#,MS12#,YS120 NO.1 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30060 |
GS120,121,LS120,MS12#,YS120..HT,SED |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8511 | ||||

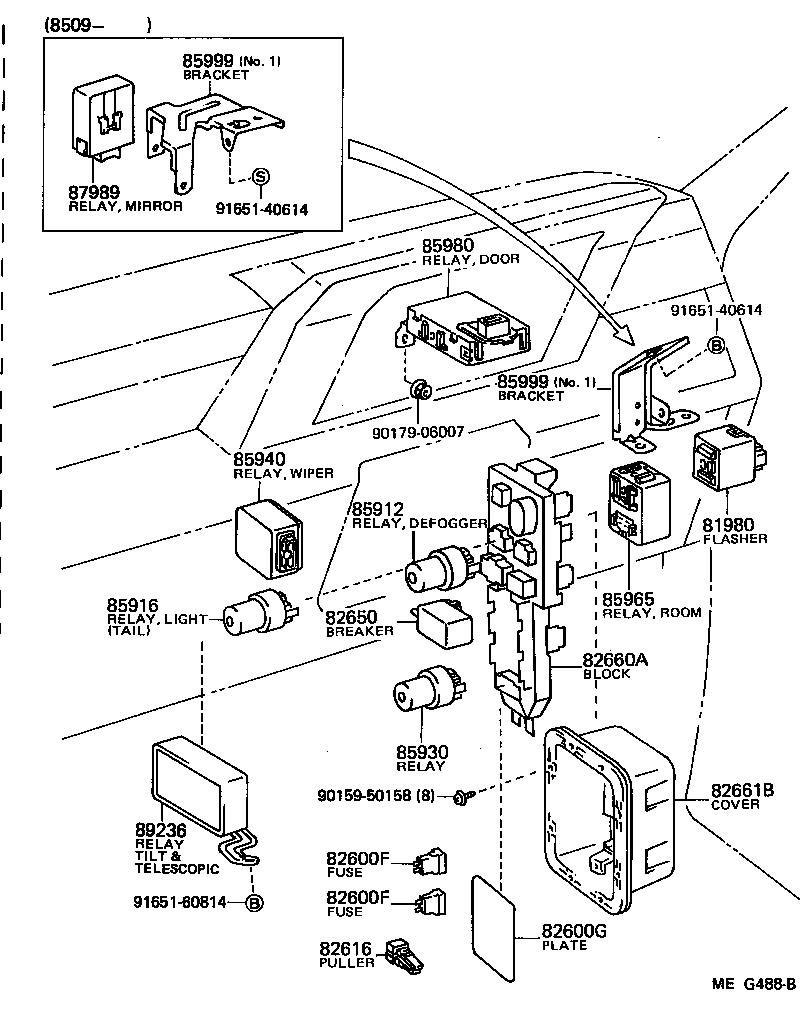

ILLUST NO. 3 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
LS120..DLX,SDX,STD;GS120..SED..(DLX,SDX,STD);GS120,126,LS12#..(V,WG)..(DSL,EFI,TDE) |
1 | ||
| 81980-22070 |
LS120..DLX,SDX,STD;GS120,LS120..WG..(EFI,TDE);GS120,126,LS126,MS120,YS120..(SED,V)..(DLX,SDX,STD) |
1 | ||
| 81980-16010 |
LS120..DLX,SDX,STD;GS120..SED..(DLX,SDX,STD);GS120,126,LS12#..(V,WG)..(DSL,EFI,TDE) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS12#,LS12#,MS12#,YS120 20A,黄,20A |
1 | ||
| 90982-09003 |
GS12#,LS12#,MS12#,YS120 15A,15A |
1 | ||
| 90982-09005 |
GS12#,LS12#,MS12#,YS120 7.5A,7.5A |
1 | ||
| 90982-09002 |
GS12#,LS12#,MS12#,YS120 10A,10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GS12#,LS12#,MS12#,YS120 20A,黄,20A |
1 | ||
| 90982-09003 |
GS12#,LS12#,MS12#,YS120 15A,15A |
1 | ||
| 90982-09005 |
GS12#,LS12#,MS12#,YS120 7.5A,7.5A |
1 | ||
| 90982-09002 |
GS12#,LS12#,MS12#,YS120 10A,10A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GS12#,LS12#,MS12#,YS120 30A,30A,DEFOGGER& POWER,MATSUSHITA |
1 | ||
| 82650-32020 |
GS12#,LS12#,MS12#,YS120 30A,30A,DEFOGGER & POWER,TOKAIRIKA |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82660-30051 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-30150 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 82661-30151 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GS126,LS126..DLX,SDX;GS120,121,LS120,MS12#,YS120 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS12#,LS12#,MS12#,YS120 HEAD |
1 | ||
| 90987-04002 |
GS12#,LS12#,MS12#,YS120 HEAD |
1 | ||
| 90987-01003 |
GS12#,LS12#,MS12#,YS120 TAIL |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30100 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30190 |
GS12#,LS12#,MS12#,YS120 NO.1 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30190 |
GS12#,LS12#,MS12#,YS120 NO.1 |
1 | ||
| Common parts | ||||
| 90159-50158 | ||||
| 90179-06007 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||

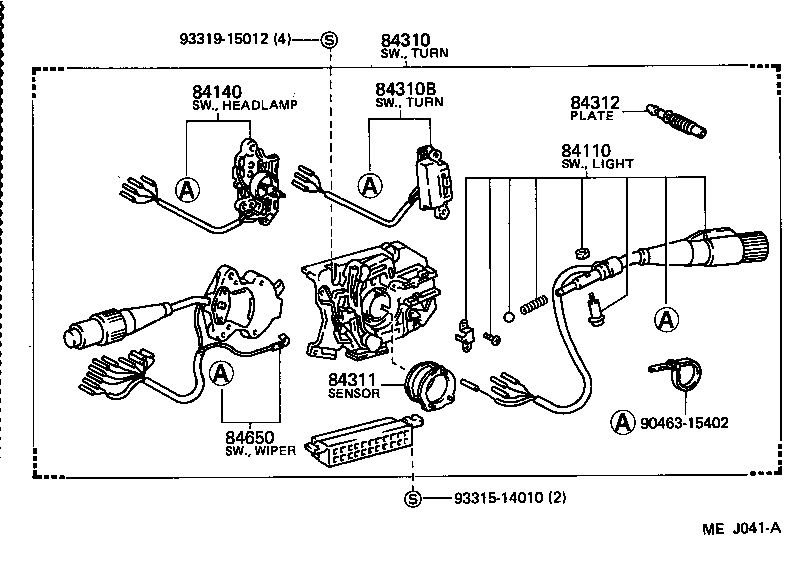

ILLUST NO. 6 OF 9(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39225 |
GS12#,LS12#,MS120,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29095 |
GS12#,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL,STD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30470 |
GS12#,LS12#,MS120,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-39195 |
GS12#,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL,STD |
1 | ||
| 84311 - SENSOR, TURN SIGNAL CANCEL | ||||
| 84311-30010 |
GS12#,LS12#,MS120,YS120 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39295 |
GS12#,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,SSL,STD |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
