GS120-SEMRE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

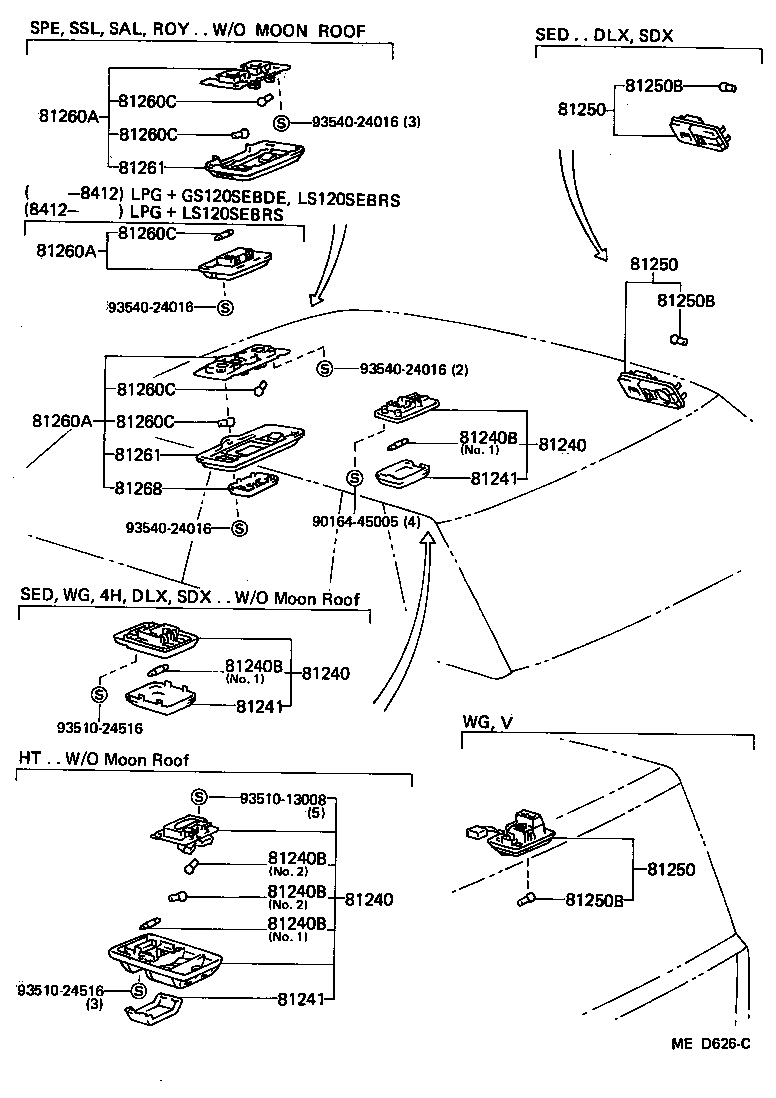

ILLUST NO. 1 OF 2(8308- )

Click highlighted areas on diagram

diagram 81240 81240 81240 81240B 81240B 81240B 81240B 81240B 81241 81241 81241 81250 81250 81250 81250B 81250B 81250B 81260A 81260A 81260A 81260C 81260C 81260C 81260C 81260C 81261 81261 81268 9016445005 9351013008 9351024516 9351024516 9354024016 9354024016 9354024016 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-3007014

GS12#,LS12#,MS12#,YS120..SED,V,WG

LIGHT BLUE,BLUE,TRIM8#

 1
81240-3007015

GS12#,LS12#,MS12#,YS120..SED,V,WG

BEIGE,BEIGE,TRIM4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-3007014

GS12#,LS12#,MS12#,YS120..SED,V,WG

LIGHT BLUE,BLUE,TRIM8#

 1
81240-3007015

GS12#,LS12#,MS12#,YS120..SED,V,WG

BEIGE,BEIGE,TRIM4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-3007014

GS12#,LS12#,MS12#,YS120..SED,V,WG

LIGHT BLUE,BLUE,TRIM8#

 1
81240-3007015

GS12#,LS12#,MS12#,YS120..SED,V,WG

BEIGE,BEIGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS12#,LS12#,MS12#,YS120

12V 10W,12V 10W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS12#,LS12#,MS12#,YS120

12V 10W,12V 10W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS12#,LS12#,MS12#,YS120

12V 10W,12V 10W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS12#,LS12#,MS12#,YS120

12V 10W,12V 10W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GS12#,LS12#,MS12#,YS120

12V 10W,12V 10W,NO.1

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30070

GS12#,LS12#,MS12#,YS120..SED,V,WG

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30070

GS12#,LS12#,MS12#,YS120..SED,V,WG

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30070

GS12#,LS12#,MS12#,YS120..SED,V,WG

 1
Common parts
90164-45005
93510-13008
93510-24516
93540-24016

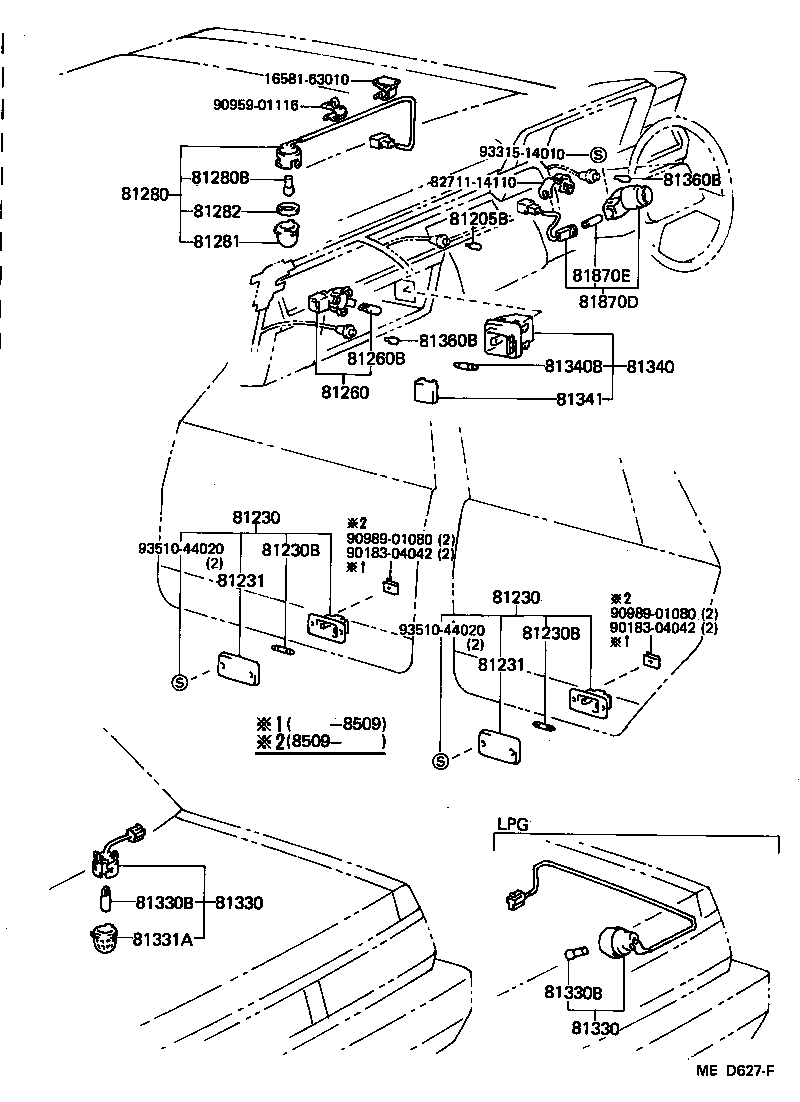

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 1658163010 81205B 81230 81230 81230B 81230B 81231 81231 81260 81260B 81280 81280B 81281 81282 81330 81330 81330B 81330B 81331A 81340 81340B 81341 81360B 81360B 81870D 81870E 8271114110 9018304042 9018304042 9095901116 9098901080 9098901080 9331514010 9351044020 9351044020
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30090

GS12#,LS12#,MS12#,YS120

 4
81230 - LAMP ASSY, COURTESY
81230-30090

GS12#,LS12#,MS12#,YS120

 4
81230B - BULB(FOR COURTESY LAMP)
90981-14001

GS12#,LS12#,MS12#,YS120

12V 3W,12V 3W

 4
81230B - BULB(FOR COURTESY LAMP)
90981-14001

GS12#,LS12#,MS12#,YS120

12V 3W,12V 3W

 4
81231 - LENS, COURTESY LAMP
81231-30080

GS12#,LS12#,MS12#,YS120

 4
81231 - LENS, COURTESY LAMP
81231-30080

GS12#,LS12#,MS12#,YS120

 4
81280 - LAMP ASSY, ENGINE ROOM
81280-30040

GS12#,LS12#,MS12#,YS120

 1
81280B - BULB, ENGINE ROOM LAMP
99132-13060

GS12#,LS12#,MS12#,YS120

12V 6W,12V 6W

 1
81281 - LENS, ENGINE ROOM LAMP
81281-30010

GS12#,LS12#,MS12#,YS120

 1
81282 - PACKING, ENGINE ROOM LAMP LENS
81282-30010

GS12#,LS12#,MS12#,YS120

 1
Common parts
16581-63010
82711-14110
90183-04042
90959-01116
90989-01080
93315-14010
93510-44020
