GS120-SEMRE (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )GS12#,LS12#..MTM

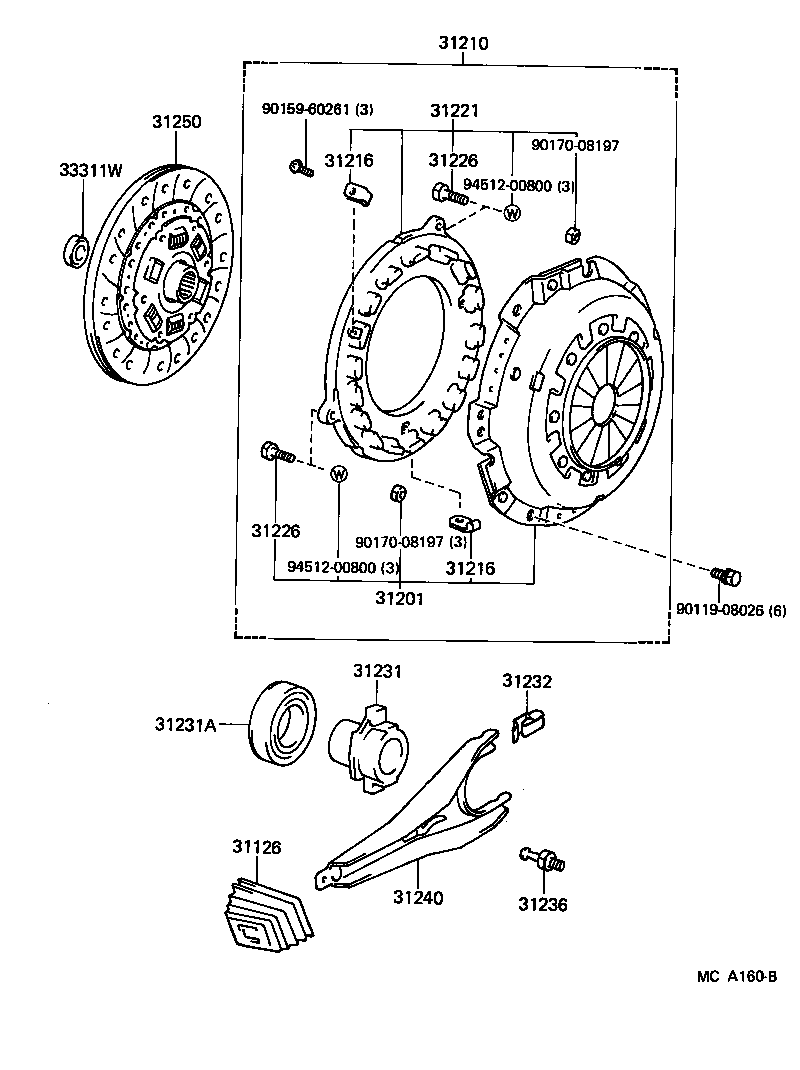

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20070 |
GS12#,LS12#,MS120..MTM |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-29085 |
GS120,126,LS12#..MTM..(DSL,EFI) |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36029 |
GS120,126,LS12#..MTM..(DSL,EFI) |
1 | ||
| 31210-22070 |
GS120,126..MTM |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
GS12#,LS12#,MS120..MTM |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
GS12#,LS12#,MS120..MTM |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39056 |
GS12#,LS12#..MTM..(DSL,EFI,TWC) |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08022 |
GS12#,LS12#,MS120,YS120..MTM |
3 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08022 |
GS12#,LS12#,MS120,YS120..MTM |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-36070 |
GS12#,MS120,YS120..MTM |
1 | ||
| 31231-36070 |
GS12#,MS120..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
GS12#,LS12#,MS120,YS120..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-22010 |
GS12#,LS12#,MS120..MTM |
2 | ||
| 31232-22010 |
GS12#,LS12#,MS120,YS120..MTM |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-30060 |
GS12#,LS12#,MS120,YS120..MTM |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-20090 |
GS12#,LS12#..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-60110 |
GS120,126..MTM |
1 | ||
| 31250-22101 |
GS120,126..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12003 |
GS12#..MTM |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90159-60261 | ||||
| 90170-08197 | ||||
| 94512-00800 | ||||
