GS120-SEMGE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

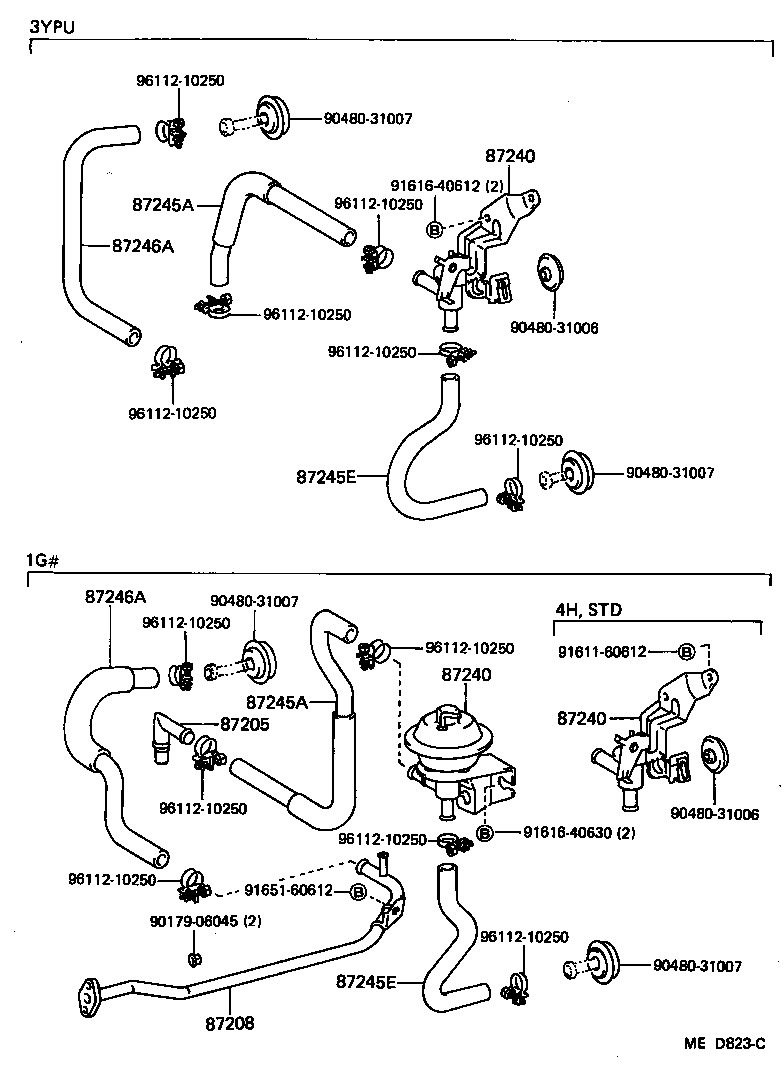

Click highlighted areas on diagram

diagram 87205 87208 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9017906045 9048031006 9048031006 9048031007 9048031007 9048031007 9048031007 9161160612 9161640612 9161640630 9165160612 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22011

GS12#..EFI,TWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A090

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A090

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A020

GS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,SPC,TBO,TWC)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A020

GS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,SPC,TBO,TWC)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A210

GS120,126,LS12#,MS12#

 1
87245-3A210

GS12#,LS12#,MS12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A210

GS120,126,LS12#,MS12#

 1
87245-3A210

GS12#,LS12#,MS12#

 1
Common parts
90179-06045
90480-31006
90480-31007
91611-60612
91616-40612
91616-40630
91651-60612
96112-10250

(8308- )

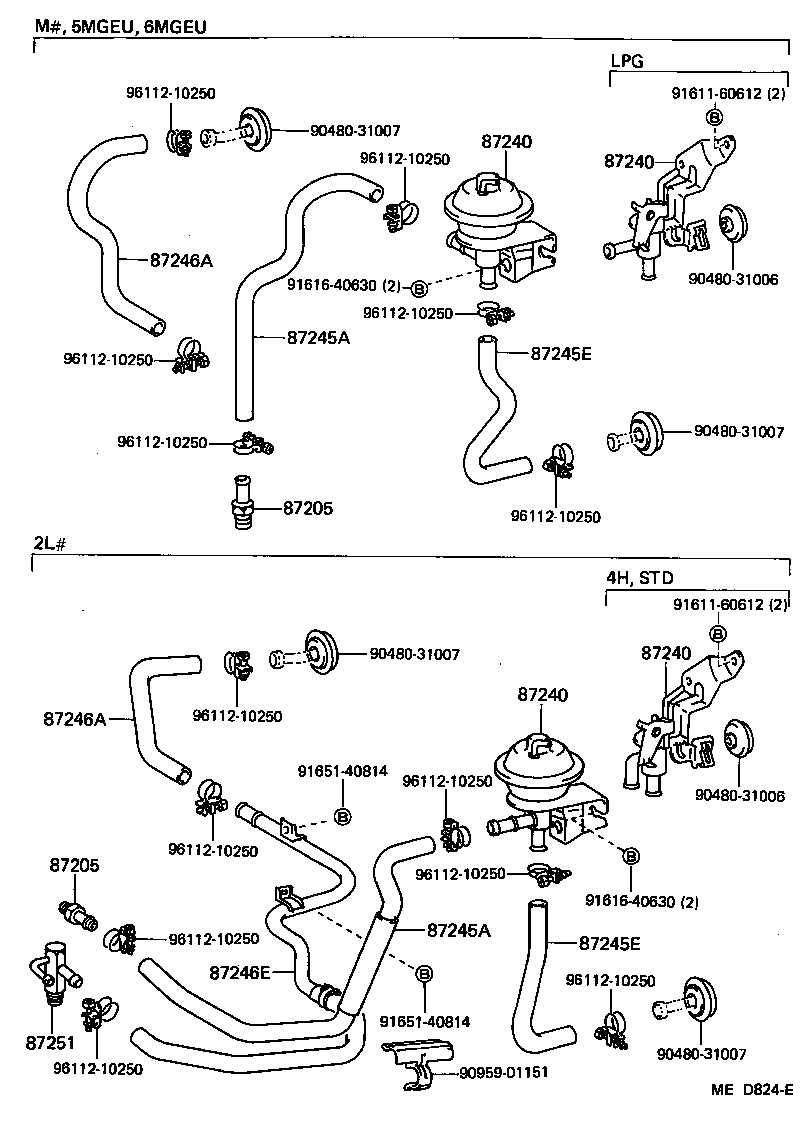

Click highlighted areas on diagram

diagram 87205 87205 87240 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87251 9048031006 9048031006 9048031007 9048031007 9048031007 9048031007 9095901151 9161160612 9161160612 9161640630 9161640630 9165140814 9165140814 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-30430

GS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(EFI,TBO,TWC)

 1
87240-30490

GS120,MS120..(HT,SED)..(SAL,SDX,SPE,SSL)..(EFI,TBO)

W/*AAC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A090

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A090

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A020

GS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,SPC,TBO,TWC)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A020

GS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(EFI,SPC,TBO,TWC)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A210

GS120,126,LS12#,MS12#

 1
87245-3A210

GS12#,LS12#,MS12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A210

GS120,126,LS12#,MS12#

 1
87245-3A210

GS12#,LS12#,MS12#

 1
Common parts
90480-31006
90480-31007
90959-01151
91611-60612
91616-40630
91651-40814
96112-10250
