GS120-SEMFE (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

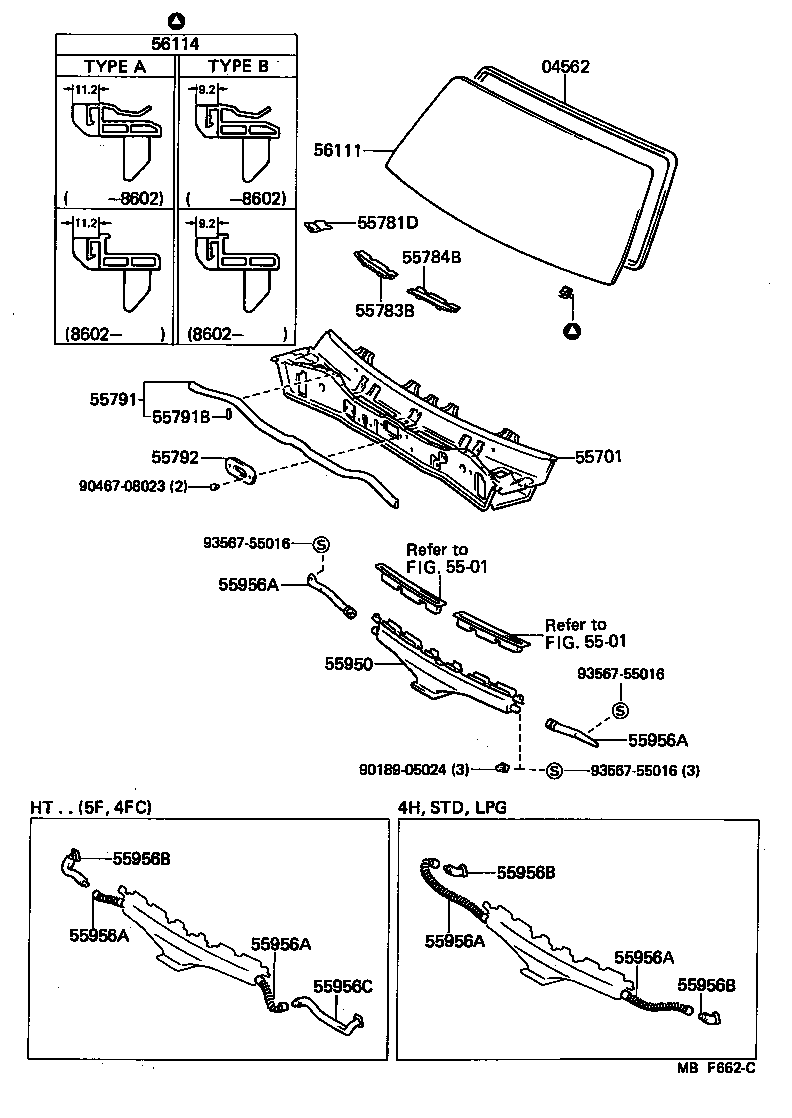

Click highlighted areas on diagram

diagram 04562 5501 5501 55701 55781D 55783B 55784B 55791 55791B 55792 55950 55956A 55956A 55956A 55956A 55956A 55956A 55956B 55956B 55956B 55956C 56111 56114 9018905024 9046708023 9356755016 9356755016 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

GS12#,LS12#,MS12#,YS120

 1
55701 - PANEL SUB-ASSY, COWL
55700-30390

GS120,126..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-30070

GS12#,LS12#,MS12#,YS120

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-30010

GS12#,LS12#,MS12#,YS120

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-30030

GS12#,LS12#,MS12#,YS120

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-30070

GS12#,LS12#,MS12#,YS120

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-08041

GS12#,LS12#,MS12#,YS120

BLACK

 8
90467-08044

GS12#,LS12#,MS12#,YS120

DARK GRAY

 6
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

GS12#,LS12#,MS12#,YS120

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-30060

GS12#,LS12#,MS12#,YS120

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30020

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

RH

 1
55972-30040

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30020

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

RH

 1
55972-30040

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30020

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

RH

 1
55972-30040

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30020

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

RH

 1
55972-30040

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30020

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

RH

 1
55972-30040

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30020

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

RH

 1
55972-30040

GS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)

LH

 1
56111 - GLASS, WINDSHIELD
56111-30480

GS120,126,LS12#,MS120,YS120..DLX,SDX

*TL,T=5.3

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30010

GS12#,LS12#,MS12#,YS120

TYPE A

 2
56114-30050

GS12#,LS12#,MS12#,YS120

TYPE A

 2
56114-30020

GS12#,LS12#,MS12#,YS120

TYPE B

 2
56114-30060

GS12#,LS12#,MS12#,YS120

TYPE B

 2
Common parts
90189-05024
90467-08023
93567-55016
Linked diagrams
5501
