GS120-SEMDE (1983)
Toyota Crown

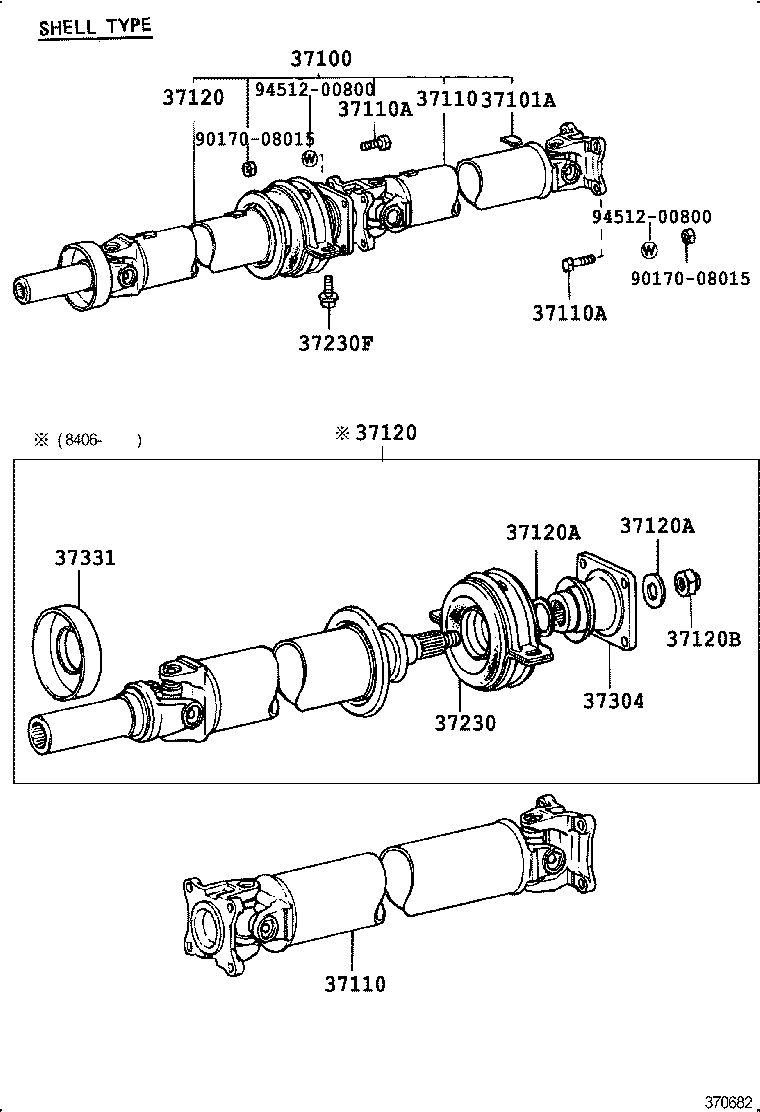

(8308-8412)GS120..4H..DLX ; (8308- )YS120..5F; (8308- )LS120..4H..STD ; (830
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30100 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37100-30120 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
GS12#,LS12#,MS12#,YS120 30G,長さ=62.2,30G |
1 | ||
| 90937-01156 |
GS12#,LS12#,MS12#,YS120 24G,長さ=49.7,24G |
1 | ||
| 90937-01153 |
GS12#,LS12#,MS12#,YS120 16G,長さ=33.2,16G |
1 | ||
| 90937-01155 |
GS12#,LS12#,MS12#,YS120 22G,長さ=45.6,22G |
1 | ||
| 90937-01154 |
GS12#,LS12#,MS12#,YS120 18G,長さ=37.3,18G |
1 | ||
| 90937-01157 |
GS12#,LS12#,MS12#,YS120 26G,長さ=53.9,26G |
1 | ||
| 90937-01148 |
GS12#,LS12#,MS12#,YS120 4G,厚さ=2.0,4G |
1 | ||
| 90937-01132 |
GS12#,LS12#,MS12#,YS120 10G,長さ=20.7,10G |
1 | ||
| 90937-01150 |
GS12#,LS12#,MS12#,YS120 8G,長さ=16.6,8G |
1 | ||
| 90937-01151 |
GS12#,LS12#,MS12#,YS120 12G,長さ=24.9,12G |
1 | ||
| 90937-01158 |
GS12#,LS12#,MS12#,YS120 28G,長さ=58.1,28G |
1 | ||
| 90937-01149 |
GS12#,LS12#,MS12#,YS120 6G,長さ=12.4,6G |
1 | ||
| 90937-01152 |
GS12#,LS12#,MS12#,YS120 14G,長さ=29.0,14G |
1 | ||
| 90937-01136 |
GS12#,LS12#,MS12#,YS120 20G,長さ=41.4,20G |
1 | ||
| 90937-01147 |
GS12#,LS12#,MS12#,YS120 2G,厚さ=2.0,2G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS12#,LS12#,MS120,123..DSL,EFI,TBO,TD,TDE,TWC SHELL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS12#,LS12#,MS120,123..DSL,EFI,TBO,TD,TDE,TWC SHELL TYPE |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC *8−1.25PX25−12 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30180 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120-30120 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30180 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120-30120 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=33.5,厚さ=4.0,OD=33.5,T=4 |
1 | ||
| 90201-26005 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=36.6,厚さ=0.8,OD=36.6,T=0.8 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=33.5,厚さ=4.0,OD=33.5,T=4 |
1 | ||
| 90201-26005 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=36.6,厚さ=0.8,OD=36.6,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
1 | ||
| 90179-18009 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30040 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# SOLID TYPE |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC |
1 | ||
| Common parts | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||

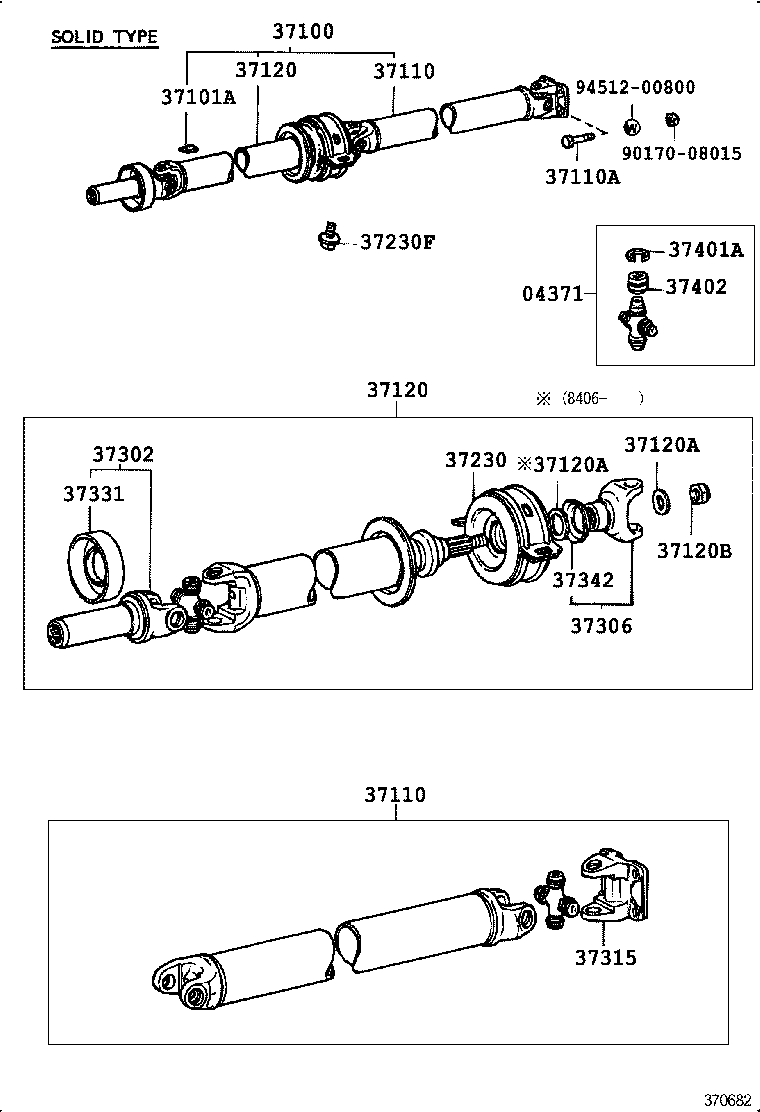

(8308- )GS121..ATM..TWC ; (8308- )GS120,126,LS12#,MS120,123..DSL,EFI,TBO,TD,T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30100 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37100-30120 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
GS12#,LS12#,MS12#,YS120 30G,長さ=62.2,30G |
1 | ||
| 90937-01156 |
GS12#,LS12#,MS12#,YS120 24G,長さ=49.7,24G |
1 | ||
| 90937-01153 |
GS12#,LS12#,MS12#,YS120 16G,長さ=33.2,16G |
1 | ||
| 90937-01155 |
GS12#,LS12#,MS12#,YS120 22G,長さ=45.6,22G |
1 | ||
| 90937-01154 |
GS12#,LS12#,MS12#,YS120 18G,長さ=37.3,18G |
1 | ||
| 90937-01157 |
GS12#,LS12#,MS12#,YS120 26G,長さ=53.9,26G |
1 | ||
| 90937-01148 |
GS12#,LS12#,MS12#,YS120 4G,厚さ=2.0,4G |
1 | ||
| 90937-01132 |
GS12#,LS12#,MS12#,YS120 10G,長さ=20.7,10G |
1 | ||
| 90937-01150 |
GS12#,LS12#,MS12#,YS120 8G,長さ=16.6,8G |
1 | ||
| 90937-01151 |
GS12#,LS12#,MS12#,YS120 12G,長さ=24.9,12G |
1 | ||
| 90937-01158 |
GS12#,LS12#,MS12#,YS120 28G,長さ=58.1,28G |
1 | ||
| 90937-01149 |
GS12#,LS12#,MS12#,YS120 6G,長さ=12.4,6G |
1 | ||
| 90937-01152 |
GS12#,LS12#,MS12#,YS120 14G,長さ=29.0,14G |
1 | ||
| 90937-01136 |
GS12#,LS12#,MS12#,YS120 20G,長さ=41.4,20G |
1 | ||
| 90937-01147 |
GS12#,LS12#,MS12#,YS120 2G,厚さ=2.0,2G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS12#,LS12#,MS120,123..DSL,EFI,TBO,TD,TDE,TWC SHELL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS12#,LS12#,MS120,123..DSL,EFI,TBO,TD,TDE,TWC SHELL TYPE |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC *8−1.25PX25−12 |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC *8−1.25PX25−12 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30180 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120-30120 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30180 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120-30120 |
GS120,126,LS12#..MTM SHELL TYPE |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=33.5,厚さ=4.0,OD=33.5,T=4 |
1 | ||
| 90201-26005 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=36.6,厚さ=0.8,OD=36.6,T=0.8 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=33.5,厚さ=4.0,OD=33.5,T=4 |
1 | ||
| 90201-26005 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径=36.6,厚さ=0.8,OD=36.6,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
1 | ||
| 90179-18009 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30040 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# SOLID TYPE |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
GS12#,LS12#,MS120,123..DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 37304-22012 |
GS12#,LS12#,MS12#..DSL,EFI,TBO,TDE,TWC |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC |
1 | ||
| Common parts | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
