GS120-SEBDE (1983)
Toyota Crown
(8308- )WG..SAL ; (8308- )DLX,SDX,SPE,SSL,STD..DSL,EFI,LPG,TD,TDE

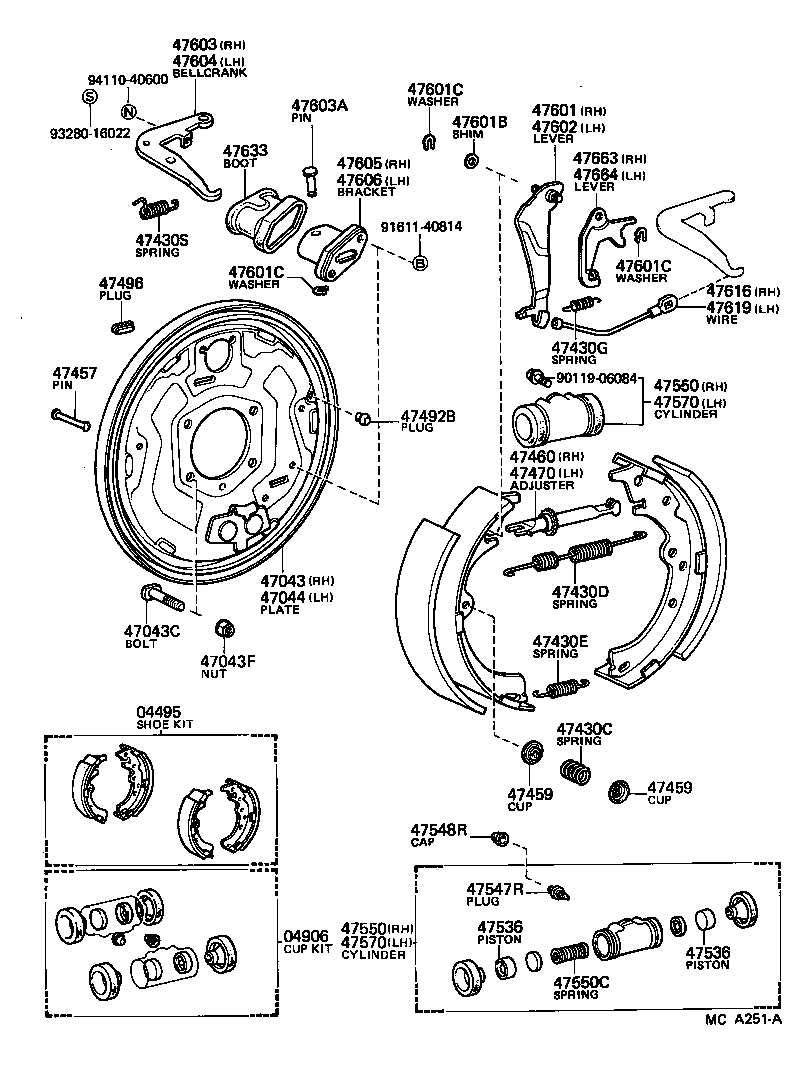

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-30050 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,STD W/C ID=22.22 |
1 | ||
| 04497-30050 |
GS120,LS120..WG..SAL;GS120,126,LS12#..DLX,SDX,SPE,SSL,STD REBUILT,W/C ID=22.22 |
1 | ||
| 04495-30050 |
GS120,LS120..WG..SAL;GS120,126,LS12#..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 04497-30050 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,STD REBUILT,W/C ID=22.22 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30100 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-30110 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-30021 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD *10−1.25PX45−20 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10030 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-30120 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23003 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12480 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47061-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47062-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30130 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD ID=22.22 |
1 | ||
| 47550-39275 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD ID=22.22 |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30130 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD ID=22.22 |
1 | ||
| 47550-39275 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD ID=22.22 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-20010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-39275 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47550-30130 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-39275 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47550-30130 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD W/C ID=22.22 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-09002 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=0.4,T=0.4 |
2 | ||
| 90564-09001 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=0.2,T=0.2 |
2 | ||
| 90564-09186 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=0.9,T=0.9 |
2 | ||
| 90564-09185 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=0.6,T=0.6 |
2 | ||
| 90564-09184 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=0.3,T=0.3 |
2 | ||
| 90564-09003 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=0.5,T=0.5 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=1.2,T=1.2 |
4 | ||
| 90213-07010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=1.6,T=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=1.2,T=1.2 |
4 | ||
| 90213-07010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=1.6,T=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=1.2,T=1.2 |
4 | ||
| 90213-07010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD 厚さ=1.6,T=1.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47603 - BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE) | ||||
| 47624-30080 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08068 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
2 | ||
| 47604 - BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE) | ||||
| 47627-30030 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47605 - BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE) | ||||
| 47628-30040 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47606 - BRACKET SUB-ASSY, BELL CRANK, LH (FOR REAR BRAKE) | ||||
| 47629-30030 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-30040 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-30040 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47633 - BOOT, PARKING BRAKE BELLCRANK | ||||
| 47634-30020 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD LH |
1 | ||
| 47633-30030 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD RH |
1 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-30010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47644-30010 |
GS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 91611-40814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
