GS110G-SWHFE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )GS11#..CTE,DLX,SAL,SDX,SPE

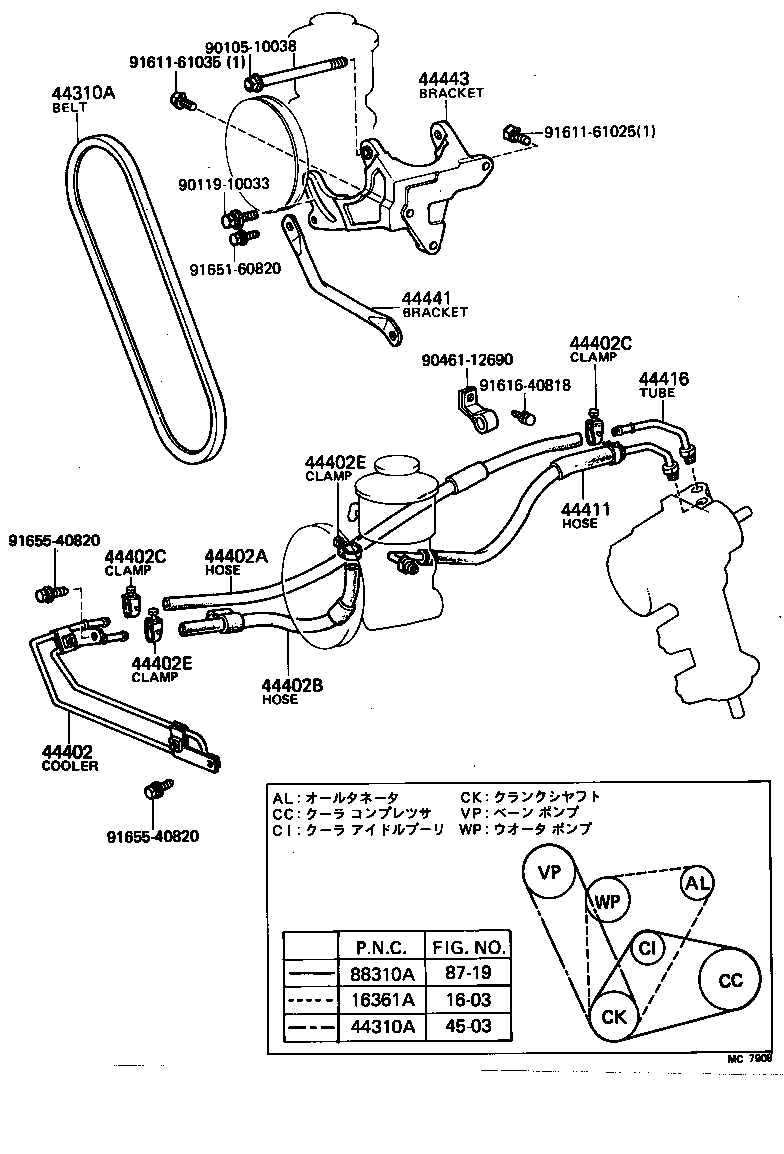

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44441 44443 4503 8719 88310A 9010510038 9011910033 9046112690 9161161025 9161161035 9161640818 9165160820 9165540820 9165540820
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-51130

1GE#..GS11#

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GS11#..CTE,DLX,SAL,SDX,SPE

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GS11#..CTE,DLX,SAL,SDX,SPE

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30081

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18065

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18006

GS11#..CTE,DLX,SAL,SDX,SPE

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44411 - HOSE, PRESSURE FEED
44411-30180

GS11#..CTE,DLX,SAL,SDX,SPE

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44441 - BRACKET, PUMP, FRONT
44441-22010

GS11#..CTE,DLX,SAL,SDX,SPE

 1
44443 - BRACKET, PUMP
44443-22030

GS11#..CTE,DLX,SAL,SDX,SPE

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00920

GS11#

 1
Common parts
90105-10038
90119-10033
90461-12690
91611-61025
91611-61035
91616-40818
91651-60820
91655-40820
Linked diagrams
1603
4503
8719
