GS110G-SWBDE (1981)
Toyota Crown

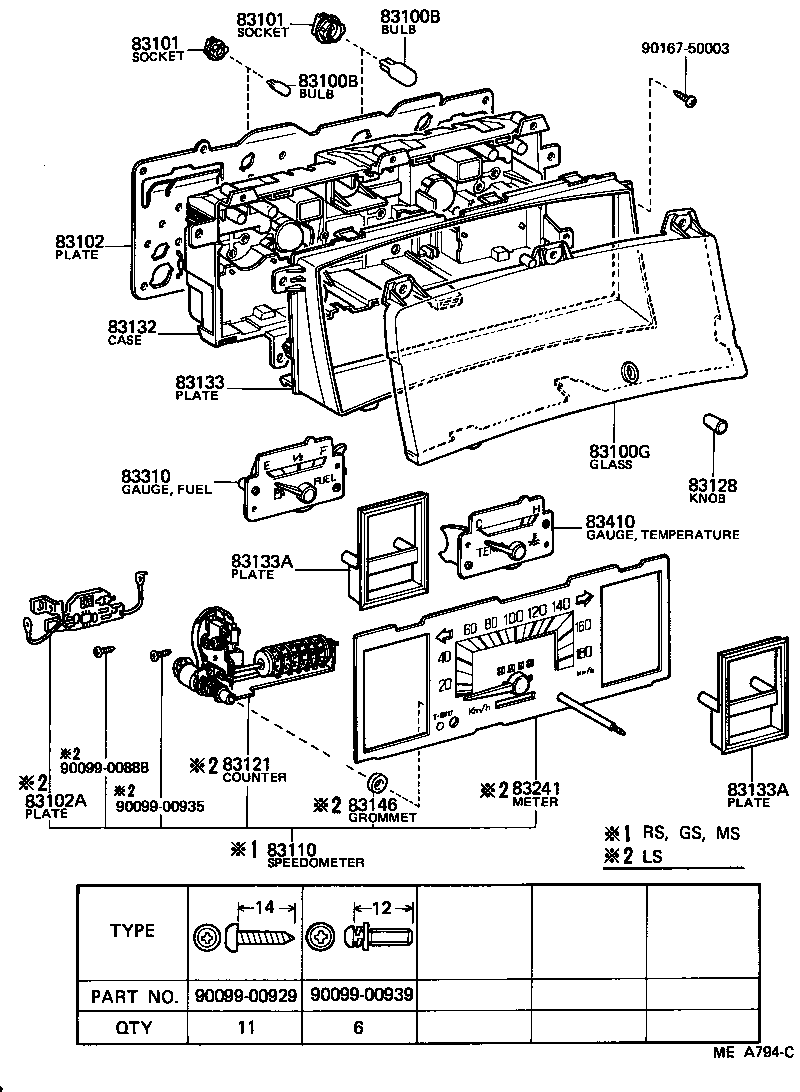

ILLUST NO. 1 OF 2(8108- )SED,V,WG..BTP,DLX,ROY,SAL,SDX,STD..CBR,DSL,EFI,LPG,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30710 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30170 |
GS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30790 |
GS11#,MS110,117..BTP,DLX,SDX,STD |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30010 |
GS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG,TWC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30010 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-30030 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
2 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-30030 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
2 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30830 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30830 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| Common parts | ||||
| 90099-00888 | ||||
| 90099-00929 | ||||
| 90099-00935 | ||||
| 90099-00939 | ||||
| 90167-50003 | ||||
ILLUST NO. 1 OF 2(8108- )LS111 ; (8108- )SED..TBO ; (8108-)MS110..SPE ; (8108- )GS110,L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30710 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30170 |
GS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30790 |
GS11#,MS110,117..BTP,DLX,SDX,STD |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30010 |
GS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG,TWC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30010 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30830 |
GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG,TWC) |
1 | ||
| Common parts | ||||
| 90099-00888 | ||||
| 90099-00929 | ||||
| 90099-00935 | ||||
| 90167-50003 | ||||
| 93315-14025 | ||||
ILLUST NO. 2 OF 2(8108- )BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-39635 |
GS11#,LS110,117,MS110,117,RS110..4H L=1400 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-10041 |
MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30290 |
MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD |
1 | ||
| Common parts | ||||
| 83791-30010 | ||||
| 90167-50003 | ||||
| 90183-05094 | ||||
| 90303-05002 | ||||
| 90461-08852 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
