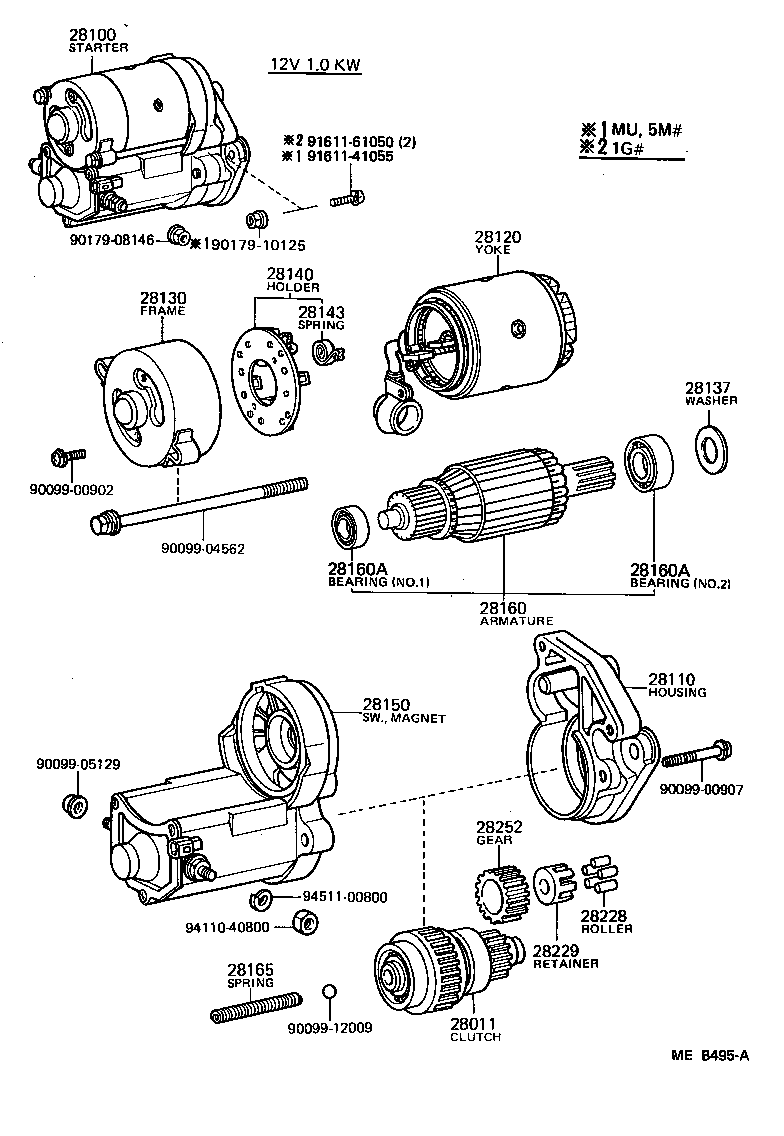

GS110G-SWBDE (1981)
Toyota Crown
(8108- )L,2LT..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15040 |
1GE#..GS11# 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-15040 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
1GEU,5M#,MU..GS110,MS110,112..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28120-26070 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15040 |
1GEU..GS110 12V 1.0KW |
1 | ||
| 28150-15070 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90093-00606 | ||||
| 90099-00901 | ||||
| 90099-04949 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-12018 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96710-01006 | ||||
(8108- )1GE#,5M#,MU..EFI,LPG,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15040 |
1GE#..GS11# 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-15040 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
1GEU,5M#,MU..GS110,MS110,112..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28120-26070 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15040 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15040 |
1GEU..GS110 12V 1.0KW |
1 | ||
| 28150-15070 |
1GE#..GS11# 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1GE#,5M#,5RU,MU..GS11#,MS110,112,RS110..EFI,LPG,TWC 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-41055 | ||||
| 91611-61050 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
