GS110G-SWBDE (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 1GEU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )1GE#

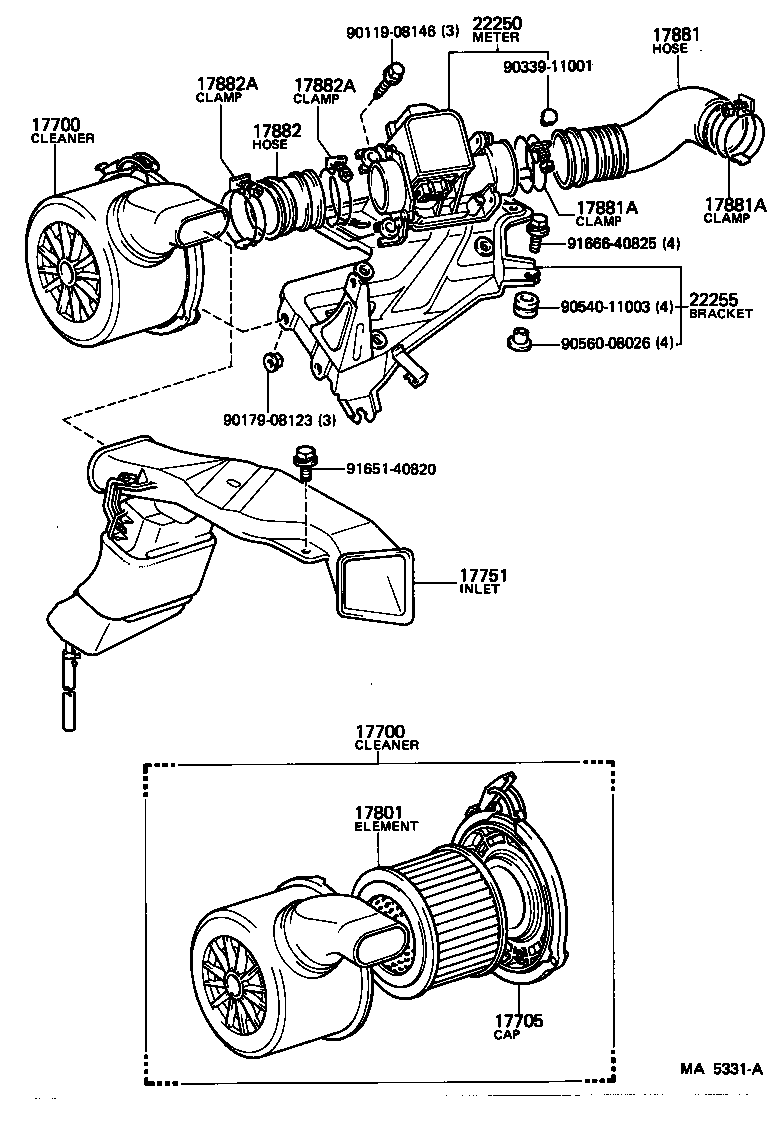

Click highlighted areas on diagram

diagram 17700 17700 17705 17751 17801 17881 17881A 17881A 17882 17882A 17882A 22250 22255 9011908146 9017908123 9033911001 9054011003 9056008026 9165140820 9166640825
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-41530

1GE#..GS11#

 1
17700 - CLEANER ASSY, AIR
17700-41530

1GE#..GS11#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-41140

1GE#..GS11#

 1
17751 - INLET, AIR CLEANER, NO.1
53207-30100

1GE#..GS11#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

1GE#..GS11#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70030

1GE#..GS11#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GE#..GS11#

THROTTLE BODY SIDE

 1
96111-10800

1GE#..GS11#

AIR FLOW METER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GE#..GS11#

THROTTLE BODY SIDE

 1
96111-10800

1GE#..GS11#

AIR FLOW METER SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17883-41060

1GE#..GS11#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

1GE#..GS11#

ID=80

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

1GE#..GS11#

ID=80

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-70030

1GE#..GS11#

 1
22255 - BRACKET, AIR FLOW METER
22209-41031

1GE#..GS11#

 1
Common parts
90119-08146
90179-08123
90339-11001
90540-11003
90560-08026
91651-40820
91666-40825
